Generator Replacement

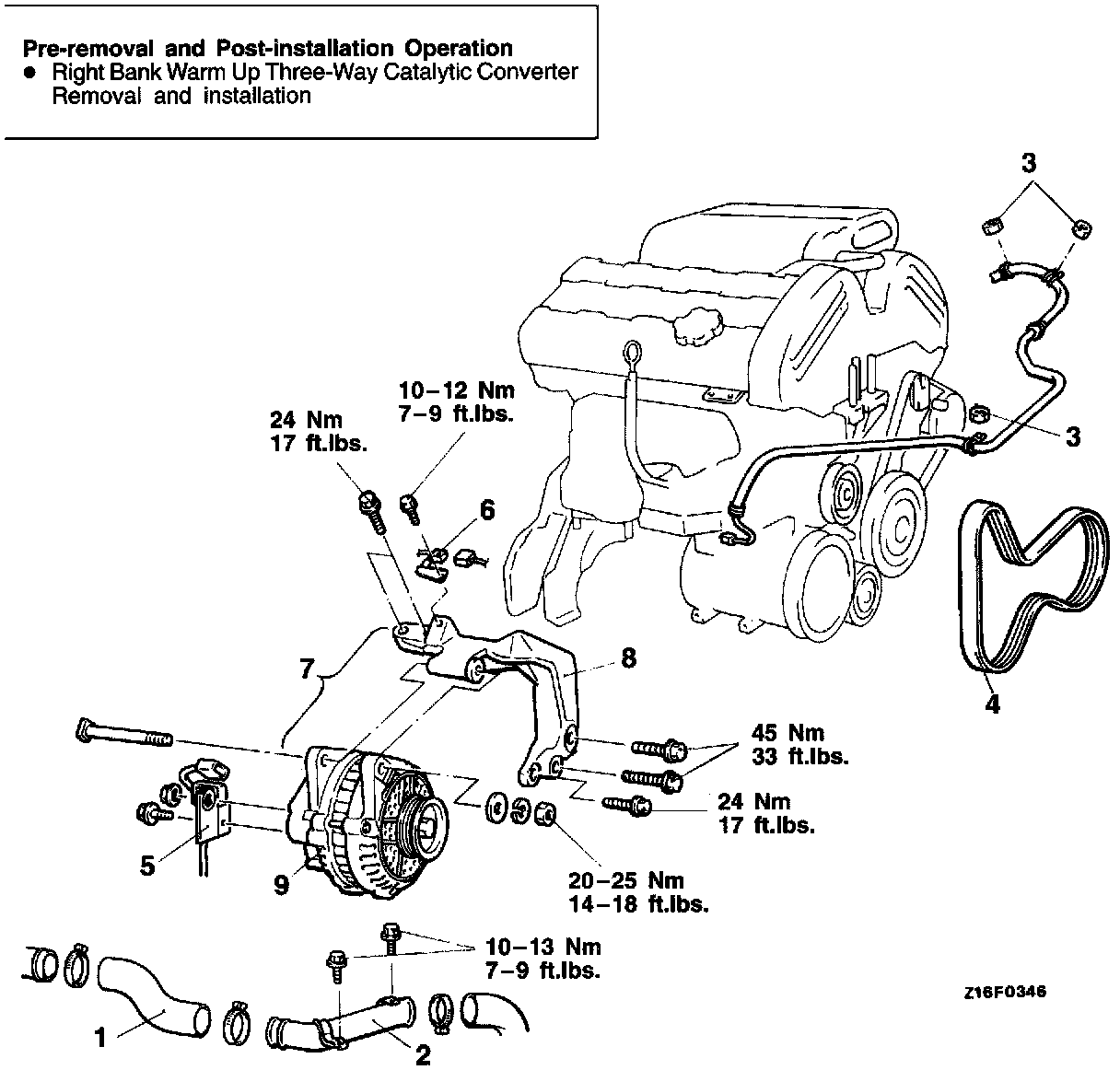

Generator - Removal And Installation:





Pre-Removal
- Right Bank Warm Up Three-Way Catalytic Converter

REMOVE
1. Air hose E
2. Air pipe C
3. Suction hose clamp nuts
4. Drive belt
5. Generator connector
6. Heated oxygen sensor connector
7. Generator and generator bracket assembly
8. Generator bracket
9. Generator

INSTALL
1. Generator
2. Generator bracket.
3. Generator and generator bracket assembly.
4. Heated oxygen sensor connector.
5. Generator connector.
6. Drive belt.
7. Suction hose clamp nuts.
8. Air pipe C
9. Air hose E

Post-Installation
- Right Bank Warm Up Three-Way Catalytic Converter
