Connector Views

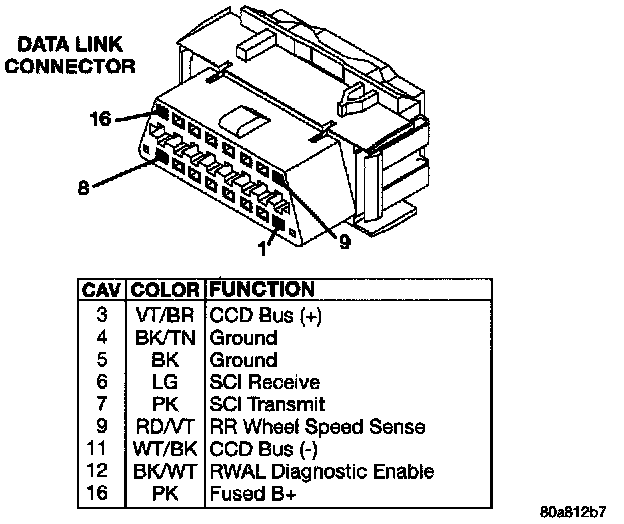

Data Link Connector Pinout:

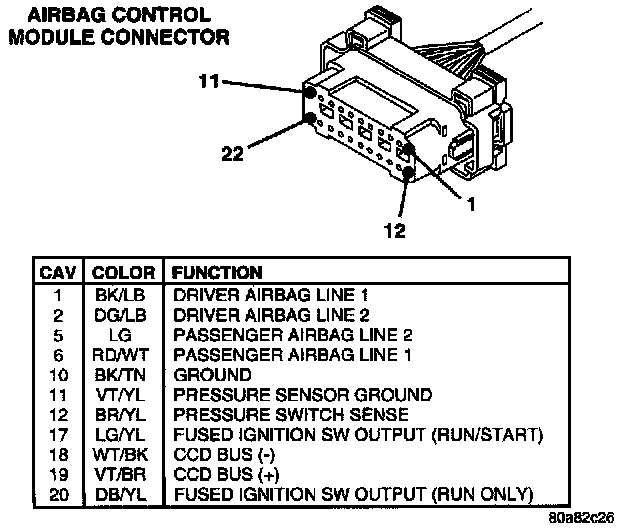

ABCM Connector Pinout:

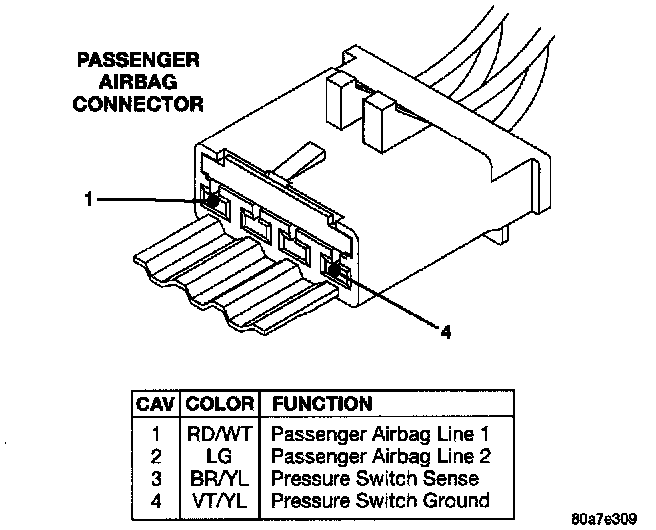

Passenger Airbag Connector Pinout:

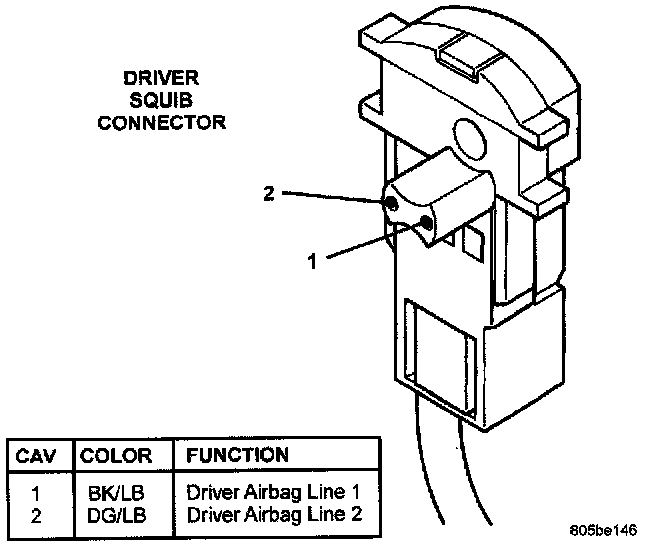

Drivers Airbag Squib Connector Pinout:

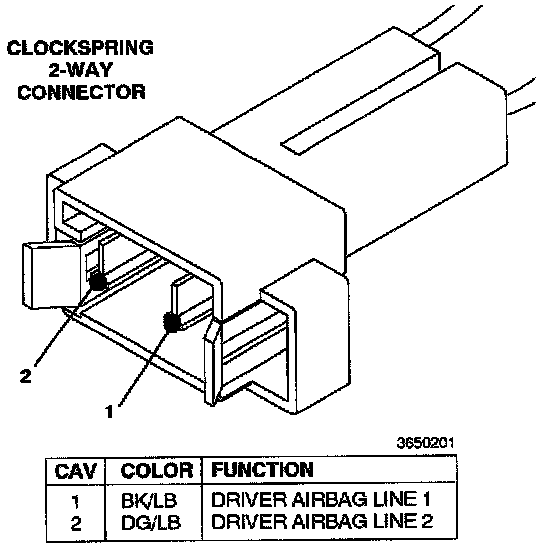

Clockspring 2-Way Connector Pinout:

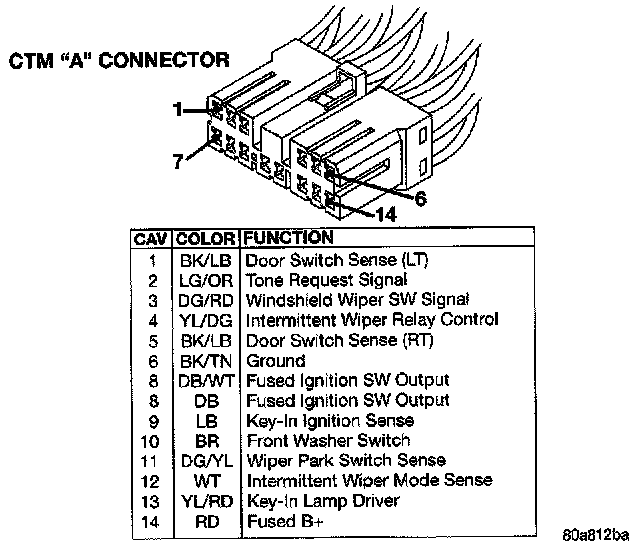

Central Timer Module (CTM) Connector "A" Pinout:

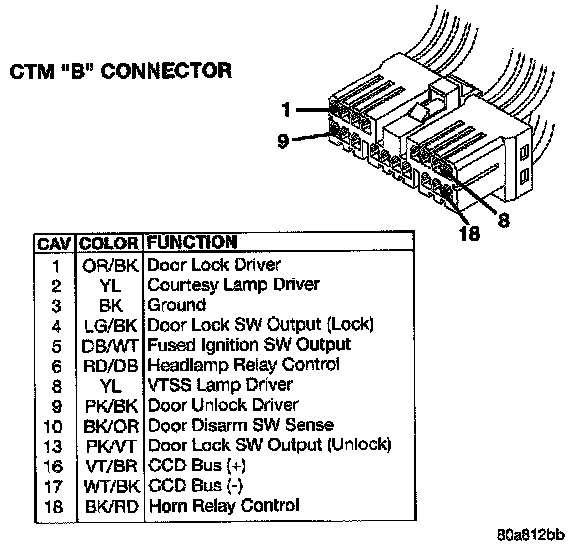

Central Timer Module (CTM) Connector "B" Pinout:

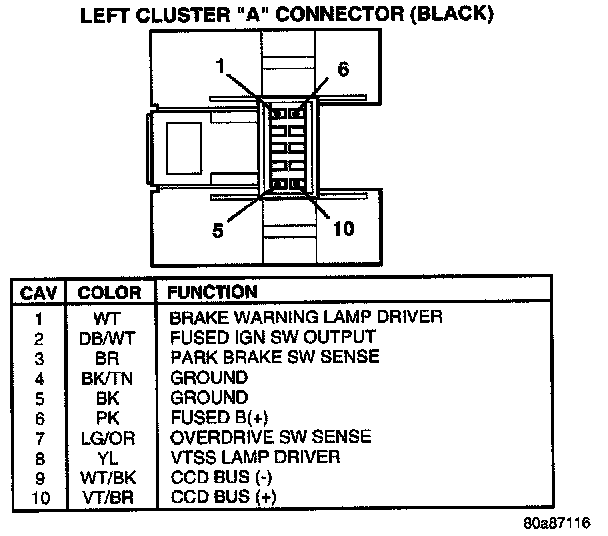

Left Instrument Cluster Connector "A" (Black) Pinout:

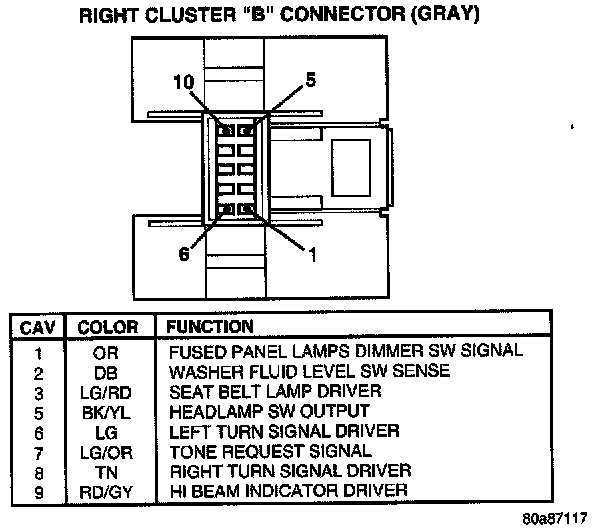

Right Instrument Cluster Connector "B" (Gray) Pinout:

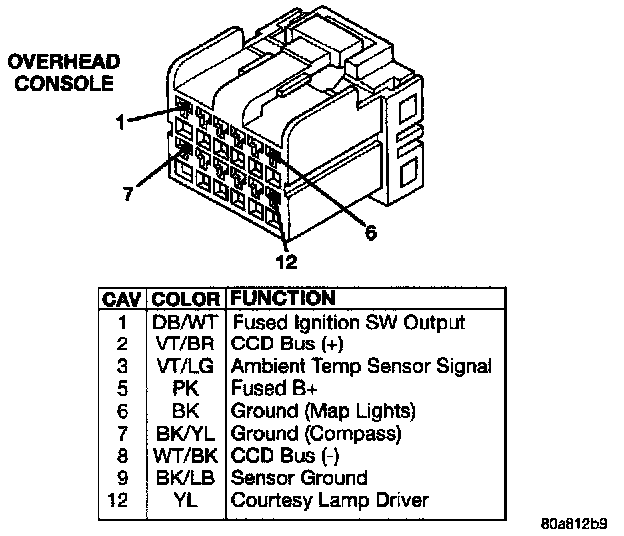

Overhead Console Compass/Mini-Trip Computer Pinout:

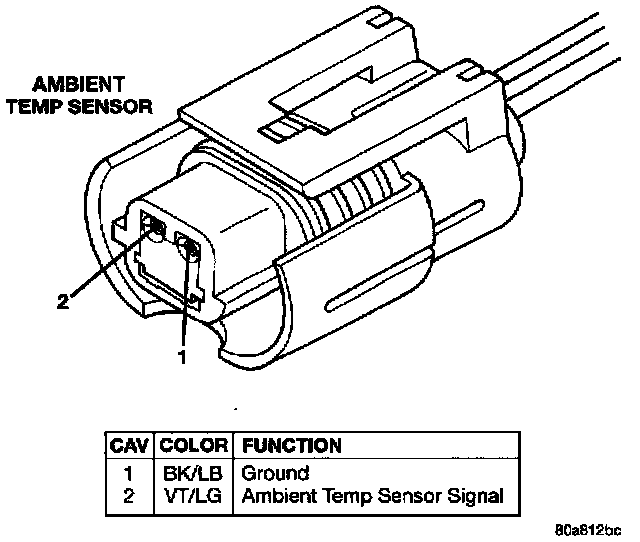

Ambient Temperature Sensor Connector Pinout:

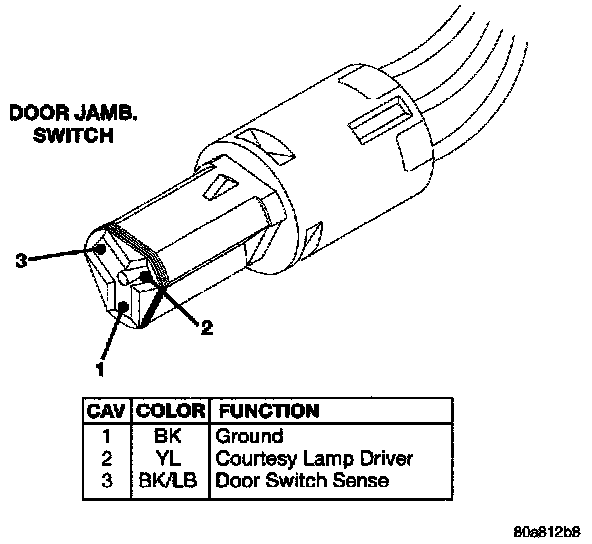

Door Jamb Switch Connector Pinout:

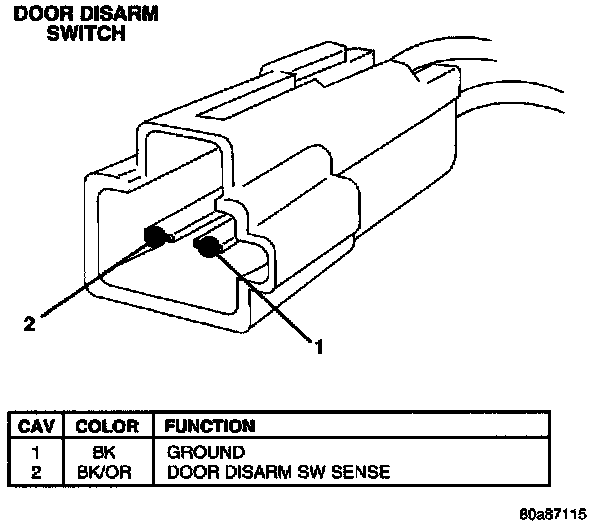

Door Disarm Switch Connector Pinout:

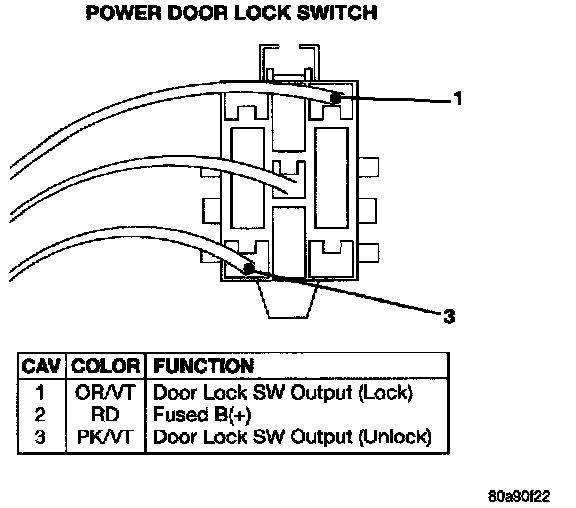

Power Door Lock Switch Connections:

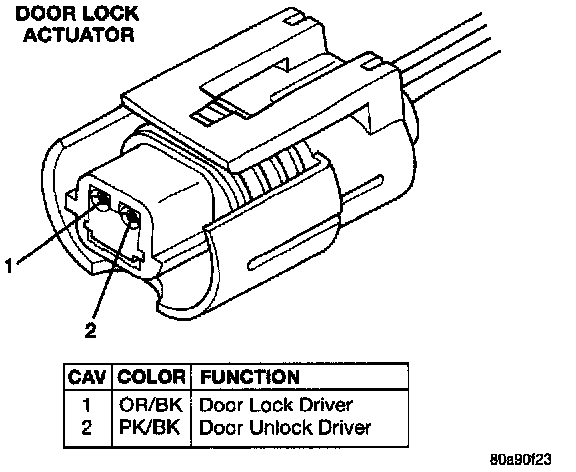

Door Lock Actuator Connector Pinout:

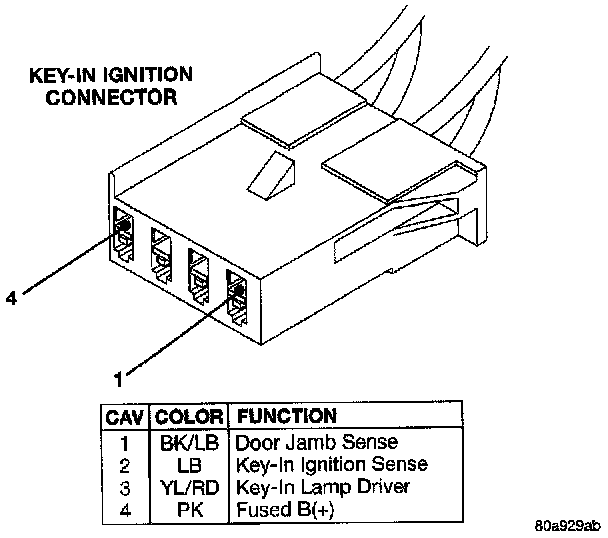

Key-In Ignition Connector Pinout:

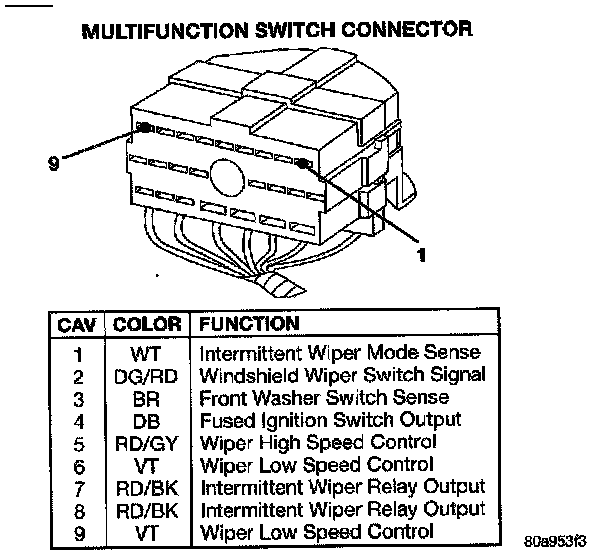

Multifunction Switch Connector Pinout:

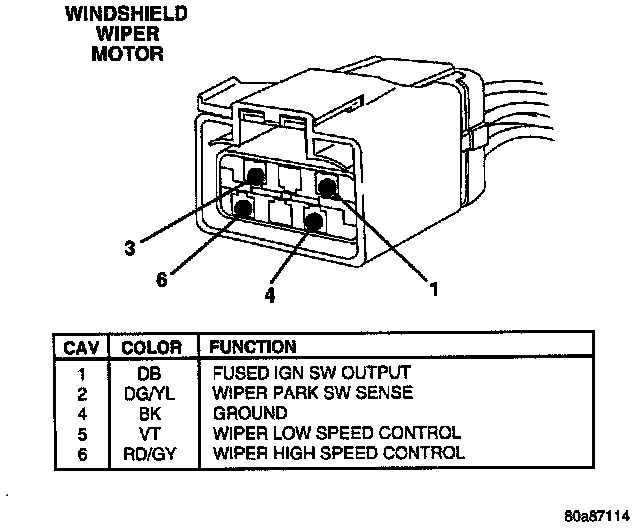

Windshield Wiper Motor Connector Pinout:
