Heater-A/C Control Replacement

REMOVAL
1. Remove the top cover and cluster bezel.
2. Reach in and disconnect the wiring connector(s) for the rear window defogger and/or fog lamp switch(s) as required.
3. Remove the six attaching screws across the forward portion of the trim panel. Then lift the flange forward to disengage the three locator pins.
4. Pull panel rearward disengaging the clips along the bottom.
5. Open the ash receiver.
6. Remove the center bezel.

Heater A/C Control:

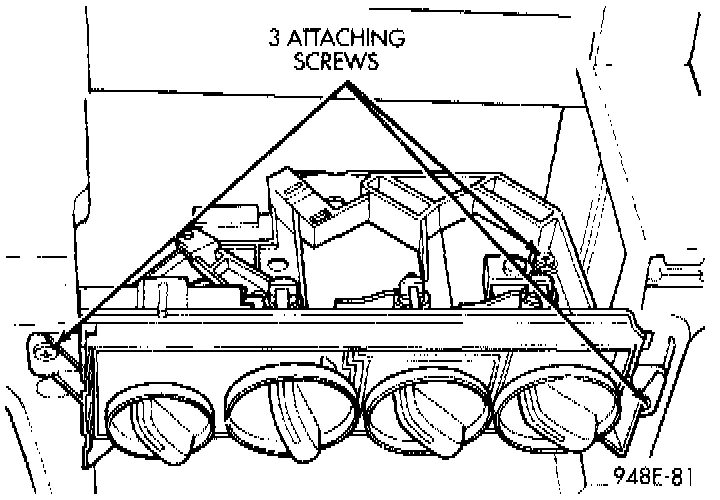

7. Remove three attaching screws at corners of the control
8. Pull the control rearward and disconnect the wiring connector.
9. Using a screwdriver, disengage the cable attachment clips.

INSTALLATION
- For installation, reverse the above procedures.
