Electrical - PDC/Fuse Block/Connector Revisions
NUMBER: 26-05-98A
GROUP: Miscellaneous
DATE: May, 1998
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1997 Neon service Manual - Publication Number 81-270-7025
DESCRIPTION OF CHANGES
Revision to the PDC & Fuse block diagram
8W-10-3

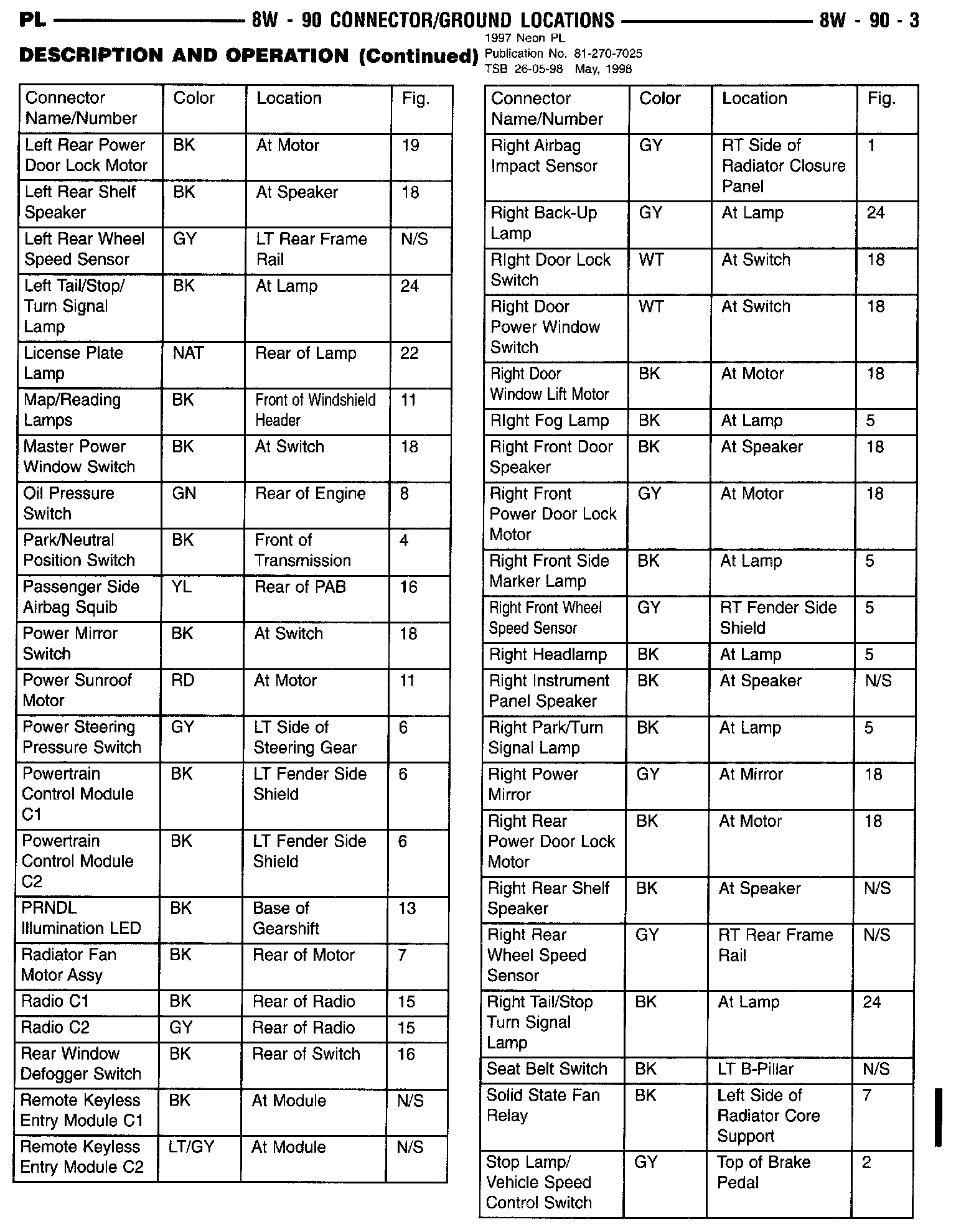

Revision to the connector, ground locations
8W-90-3
