DRB III Does Not Power Up (Blank Screen)

DRB III ERROR MESSAGES AND BLANK SCREEN

Under normal operation, the DRB will display one of only two error messages:

- User-Requested WARM Boot
- User-Requested COLD Boot

If the DRB should display any other error message, record the entire display and call the MDS Hotline, or call for information and assistance at 1-800-825-8737. This is a sample of such an error message display:

VER: 2.14
date: 26 Jul93
file: key_itf.cc
date: Jul 26 1993
line: 548
err. Ox1
User-Requested COLD boot

Press MORE to switch between this display and the application screen. Press F4 when done noting information.

DRB III DOES NOT POWER UP (BLANK SCREEN)

If the LED's do not light or no sound is emitted at start up, check for loose cable connections or a bad cable. Check the vehicle battery voltage (data link connector cavity 16). A minimum of 11 volts is required to adequately power the DRB.

If all connection are proper between the DRB and the Vehicle or other devices, and the vehicle battery is fully charged, an inoperative DRB may be the result of faulty cable of vehicle wiring. Perform Vehicle Communication TEST 1A.

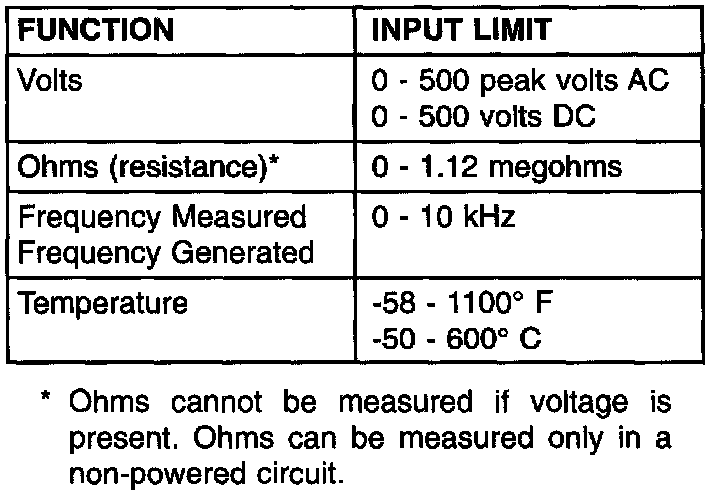

DRB III Safety Limits:

WARNING: Never exceed DRBIII safety limits!
