NV3500 Manual Transmission

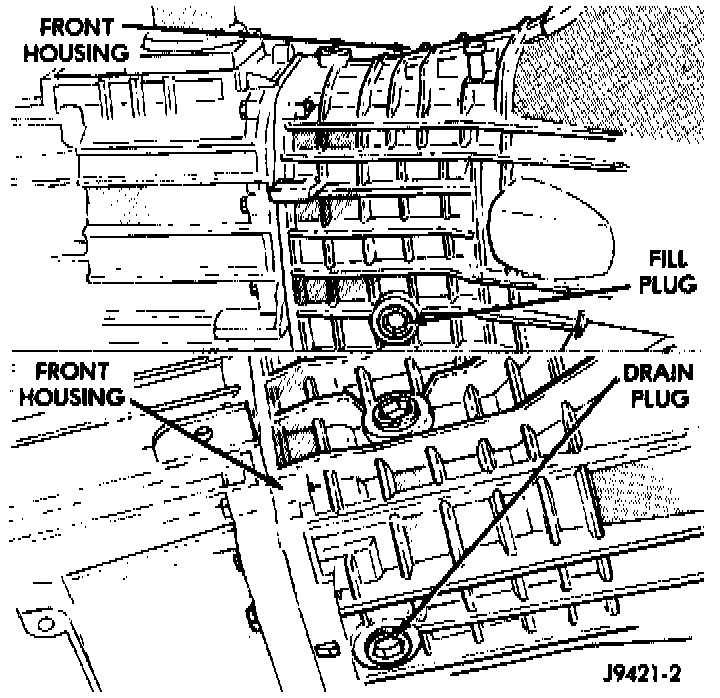

Drain And Fill Plug Locations:

The correct transmission lubricant level is to the bottom edge of the fill plug hole.

The transmission must be level to obtain an accurate lubricant level check. A drive-on type of hoist is recommended for this purpose.

Lubricant capacity of the NV3500 is approximately 2.28 liters (4.8 pints). This represents the approximate quantity needed to refill the transmission after a lubricant change or overhaul.
