Electrical Diagrams

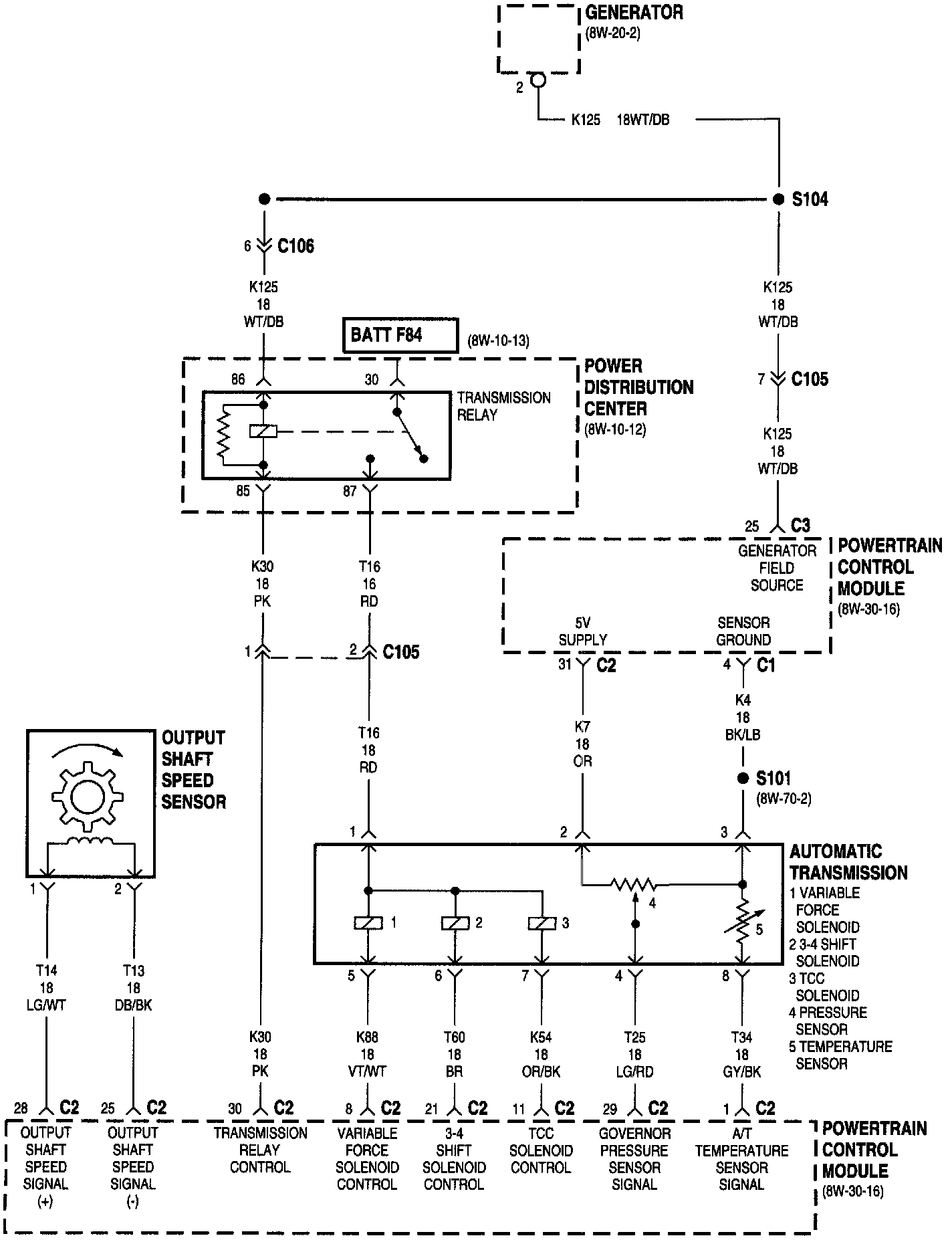

Transmission Control System (Part 1 Of 3):




Automatic Transmission
Generator
Output Shaft Speed Sensor
Powertrain Control Module
Transmission Relay

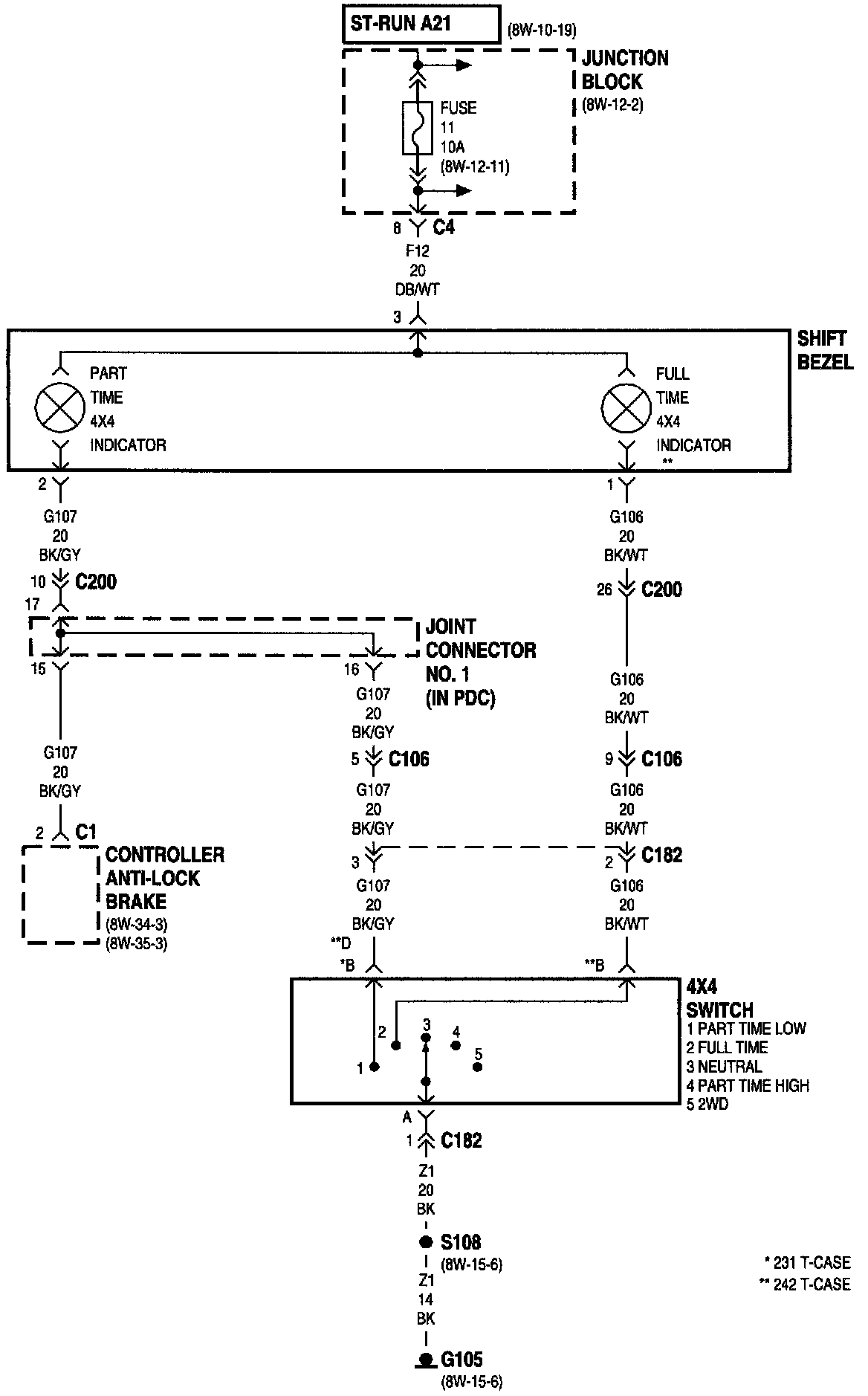

Transmission Control System (Part 2 Of 3):




Controller Anti-Lock Brake
Fuse 11 (JB)
G105
G106
G107
Joint Connector No. 1
Junction Block
Part Time 4x4 Indicator
Shift Bezel

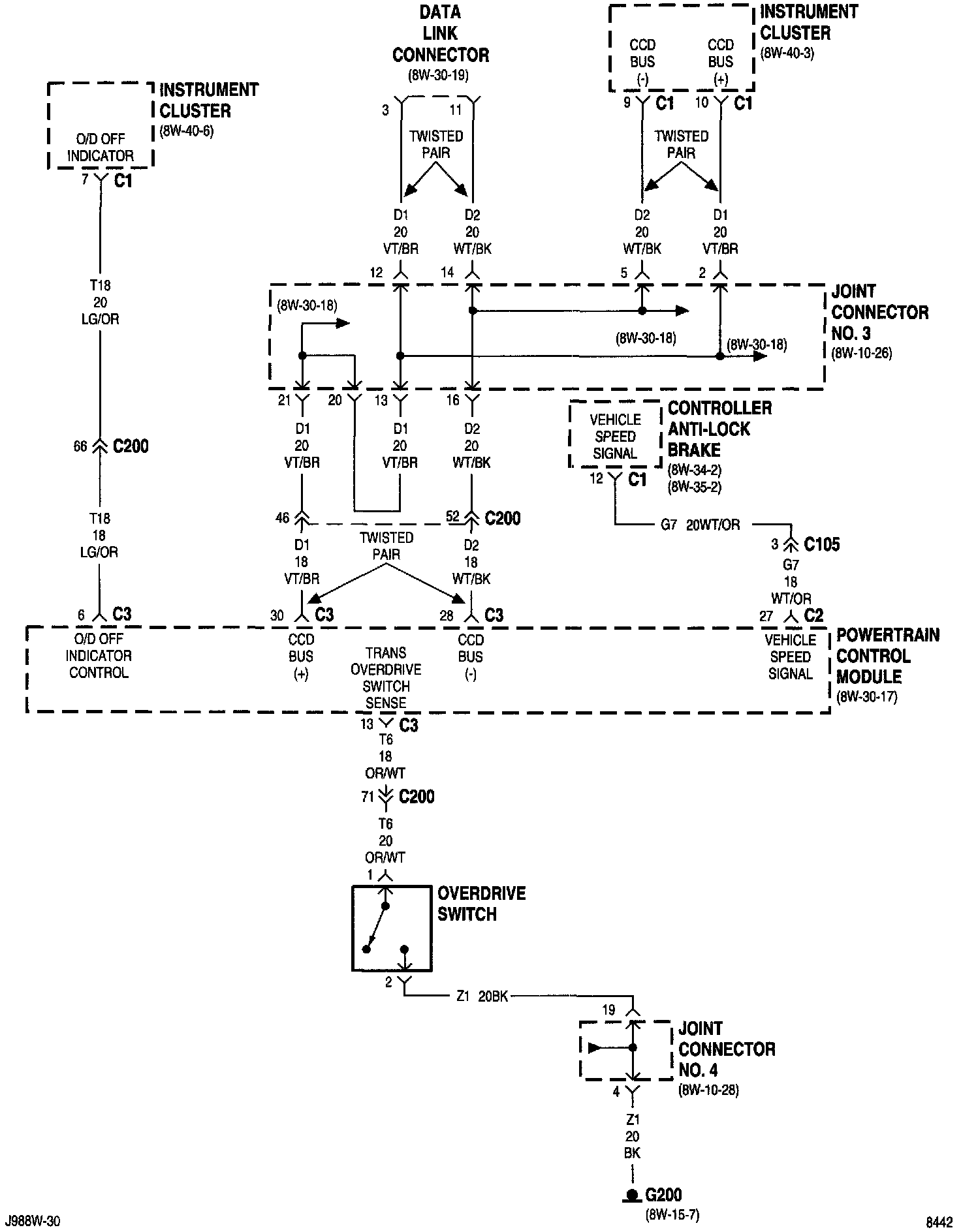

Transmission Control System (Part 4 Of 3):




Controller Anti-Lock Brake
Data Link Connector
G200
Instrument Cluster
Joint Connector No. 3
Joint Connector No. 4
Overdrive Switch
Powertrain Control Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
