RAM 2500 Truck 2WD V8-5.9L VIN 5 HDC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>

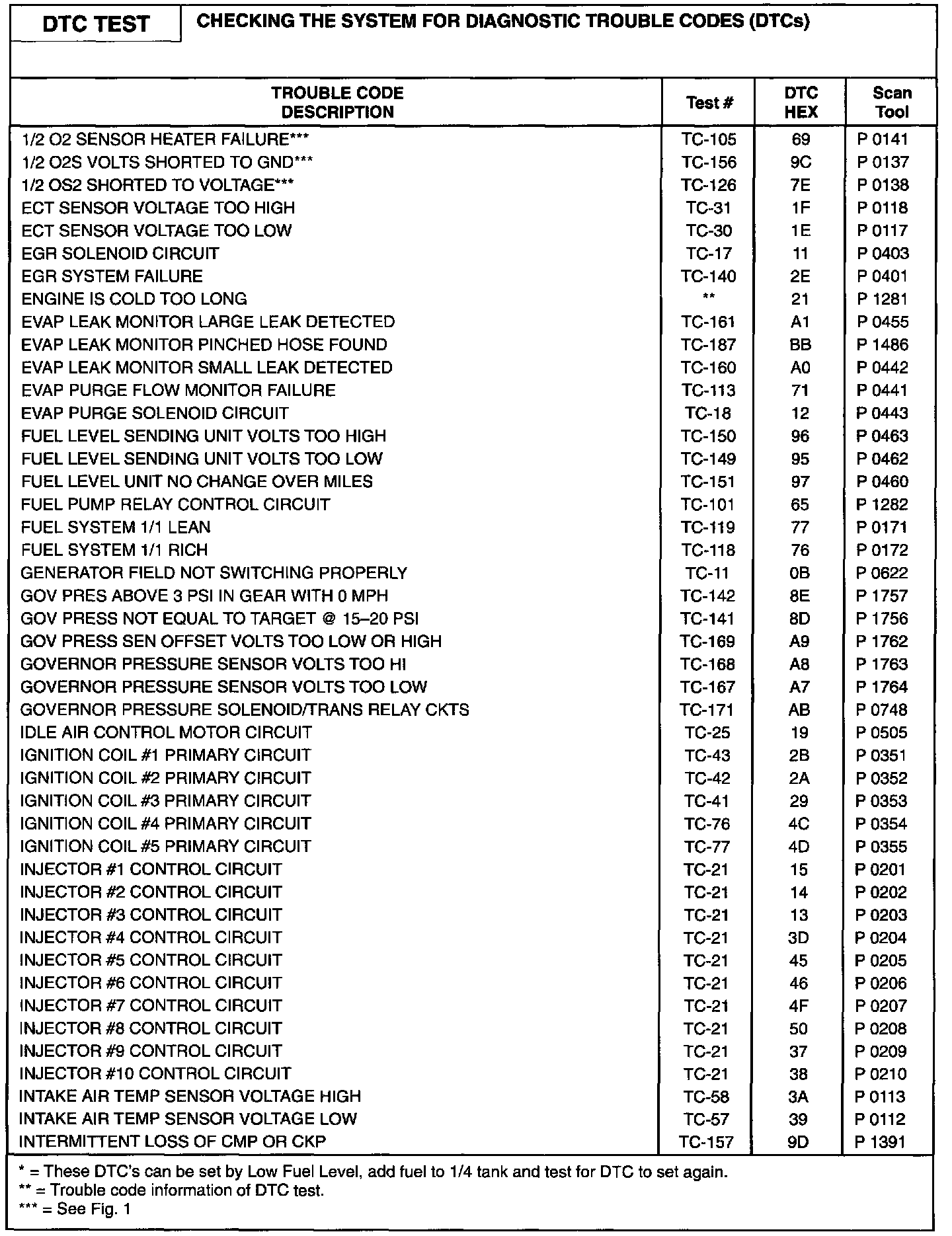

DTC Test - CODE TO TC TEST CHART (Checking for Trouble Codes)
DTC Test - CODE TO TC TEST CHART (Checking for Trouble Codes)
Related Image:
Diagnostic Chart:
Diagnostic Chart:
Diagnostic Chart:
Diagnostic Chart:
