Manifold Pressure/Vacuum Sensor: Service and Repair

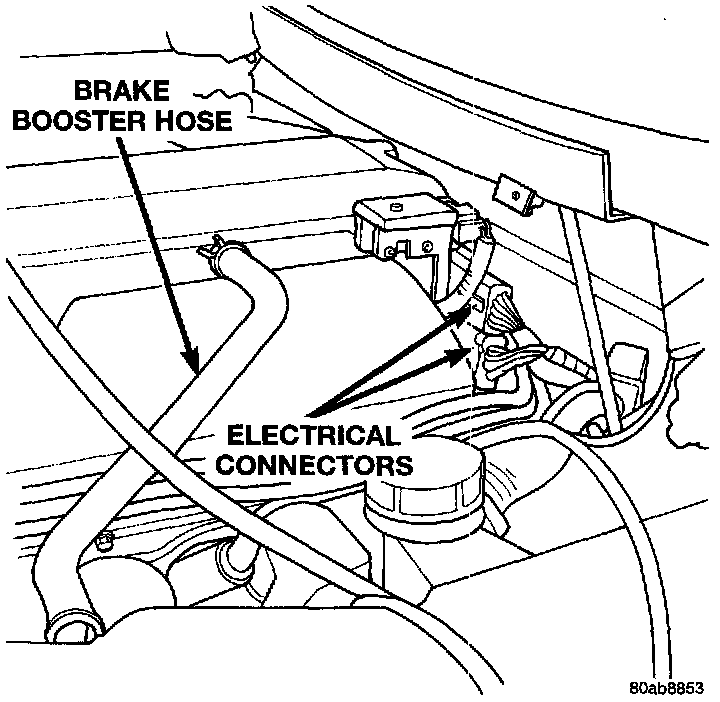

Fig 38 MAP Sensor:

The MAP sensor is mounted on the drivers side of the intake manifold (Fig. 38).

REMOVAL
1. Disconnect the electrical connector from the MAP sensor.
2. Remove MAP sensor mounting screws.

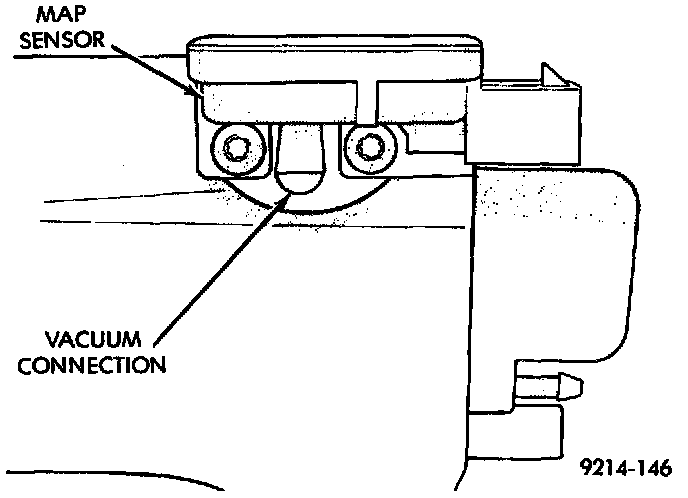

Fig. 38 MAP Sensor Intake Manifold Connection:

3. A vacuum hose on the bottom of the MAP sensor connects to the sensor to a vacuum fitting on the intake manifold plenum.
- Pull MAP sensor and vacuum hose off of intake manifold.

INSTALLATION
1. Reverse procedure for installation.
- Tighten mounting screws to 2.6 Nm (23 in. lbs.) torque.
