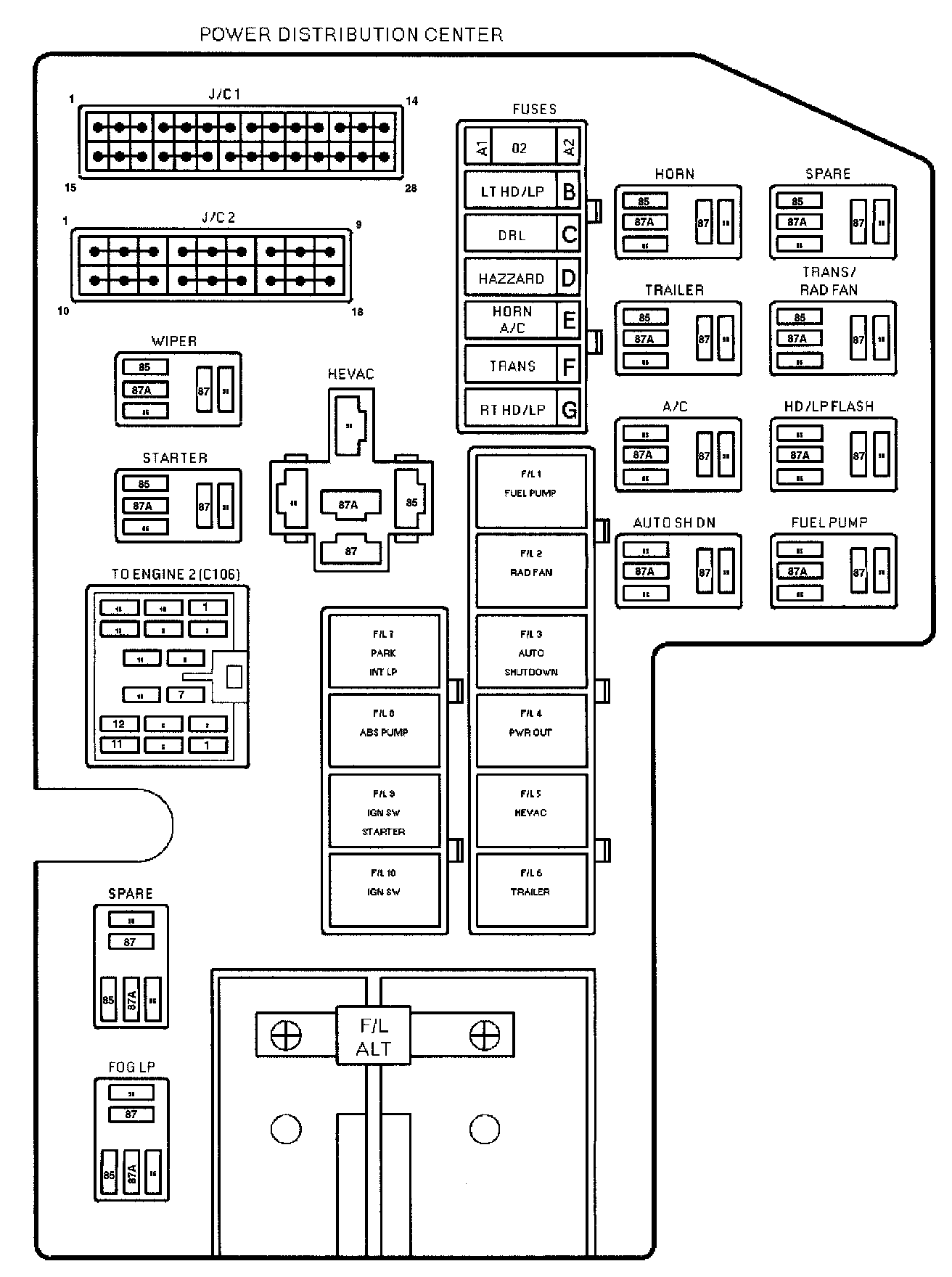

Power Distribution Block



Fuses:

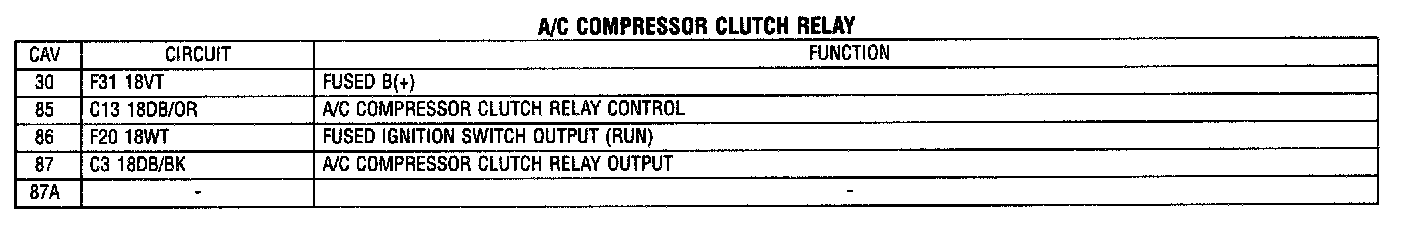

A/C Compressor Clutch Relay:

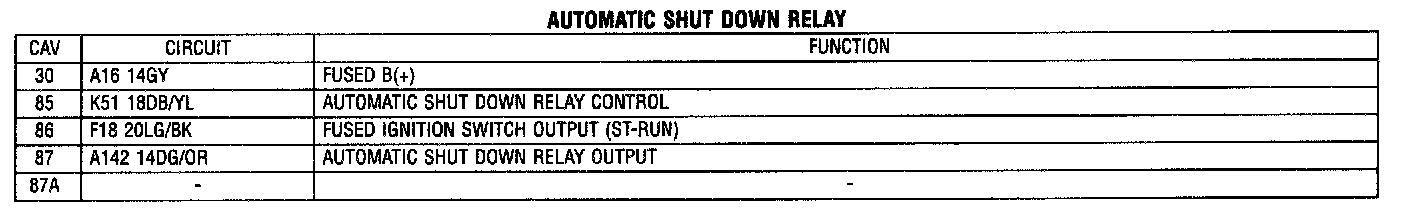

Automatic Shut Down Relay:

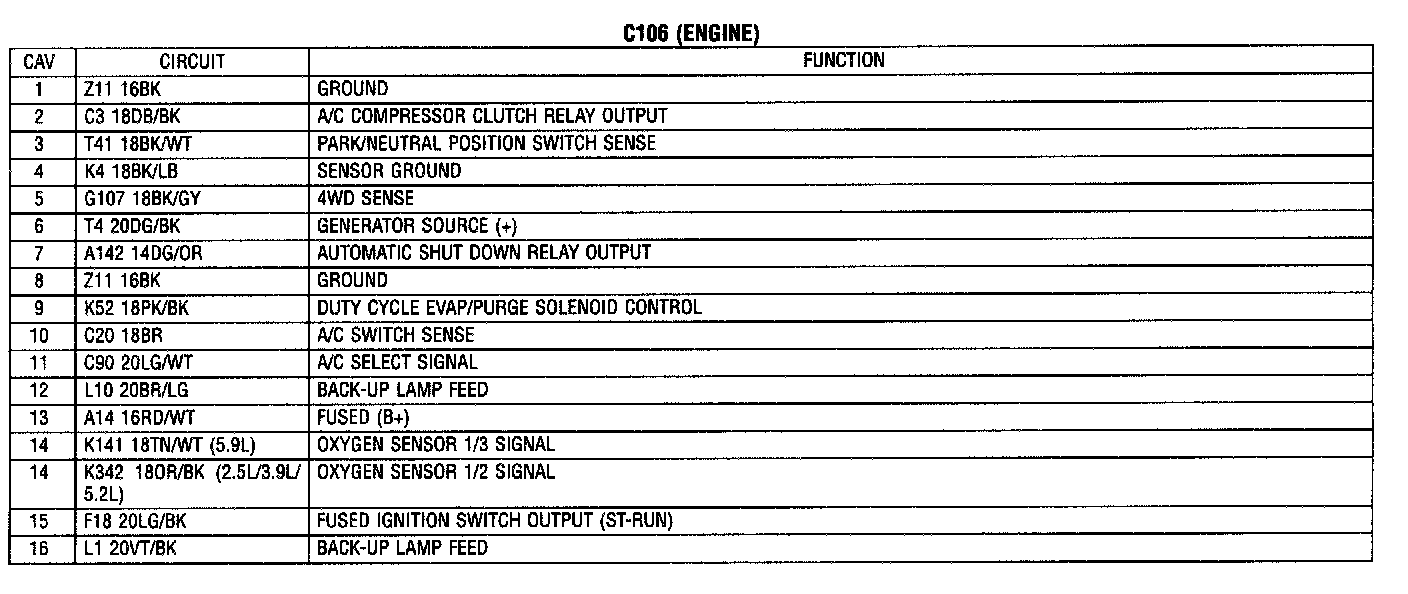

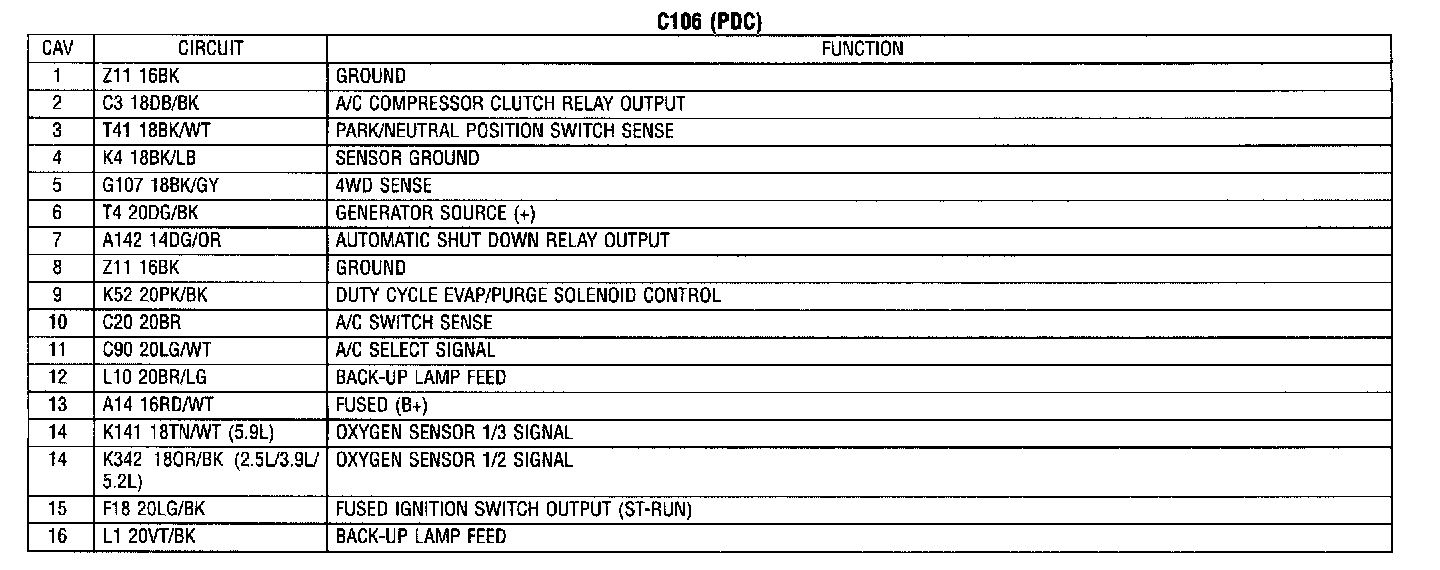

C106 (Engine):



C105 (PDC):





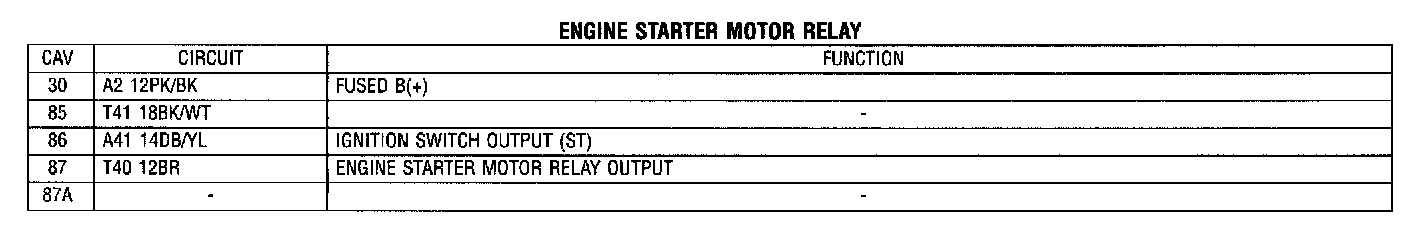

Fog Lamp Relay:

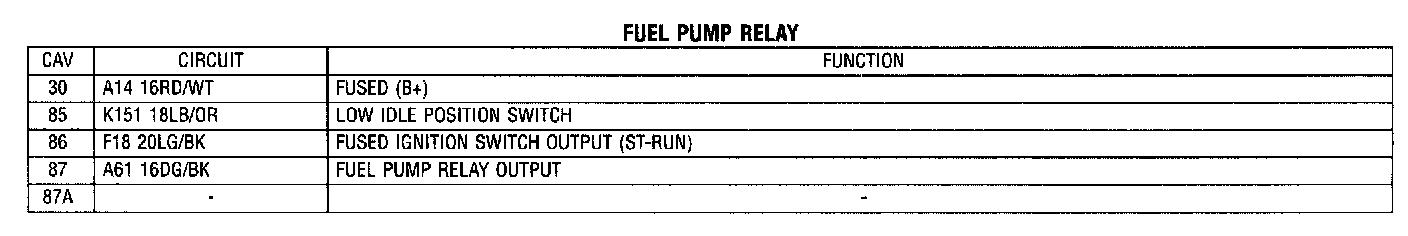

Fuel Pump Relay:

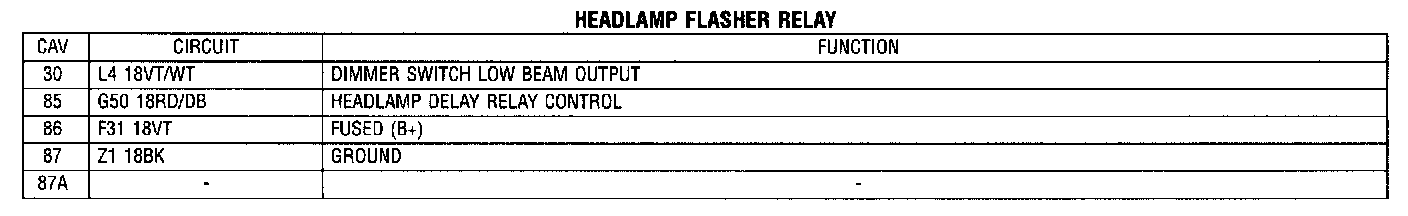

Headlamp Flasher Relay:

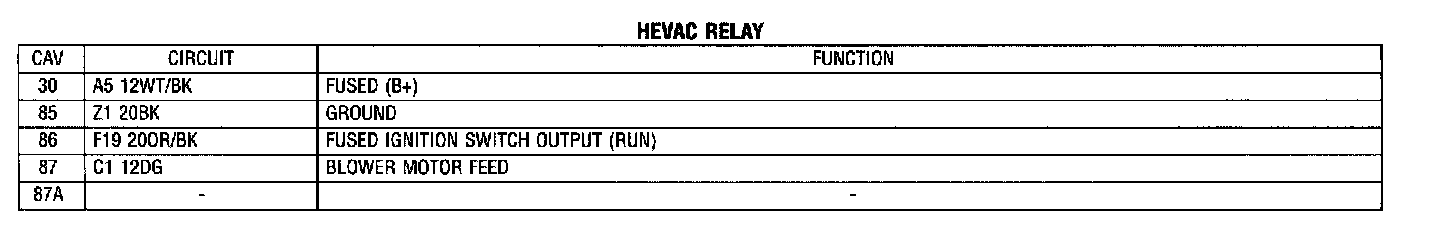

HEVAC Relay:

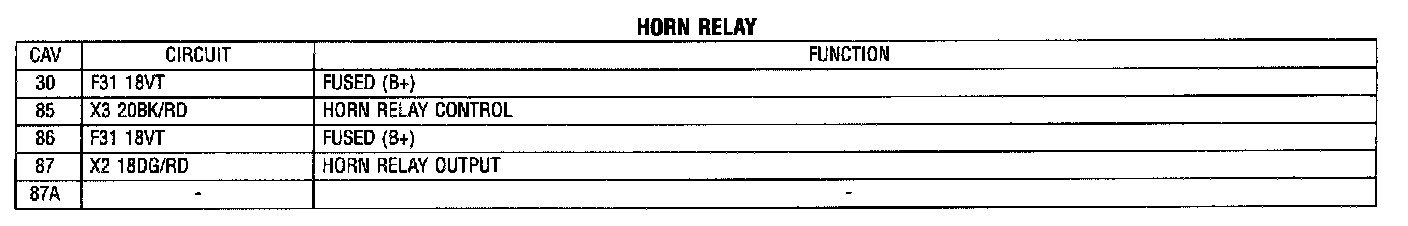

Horn Relay:

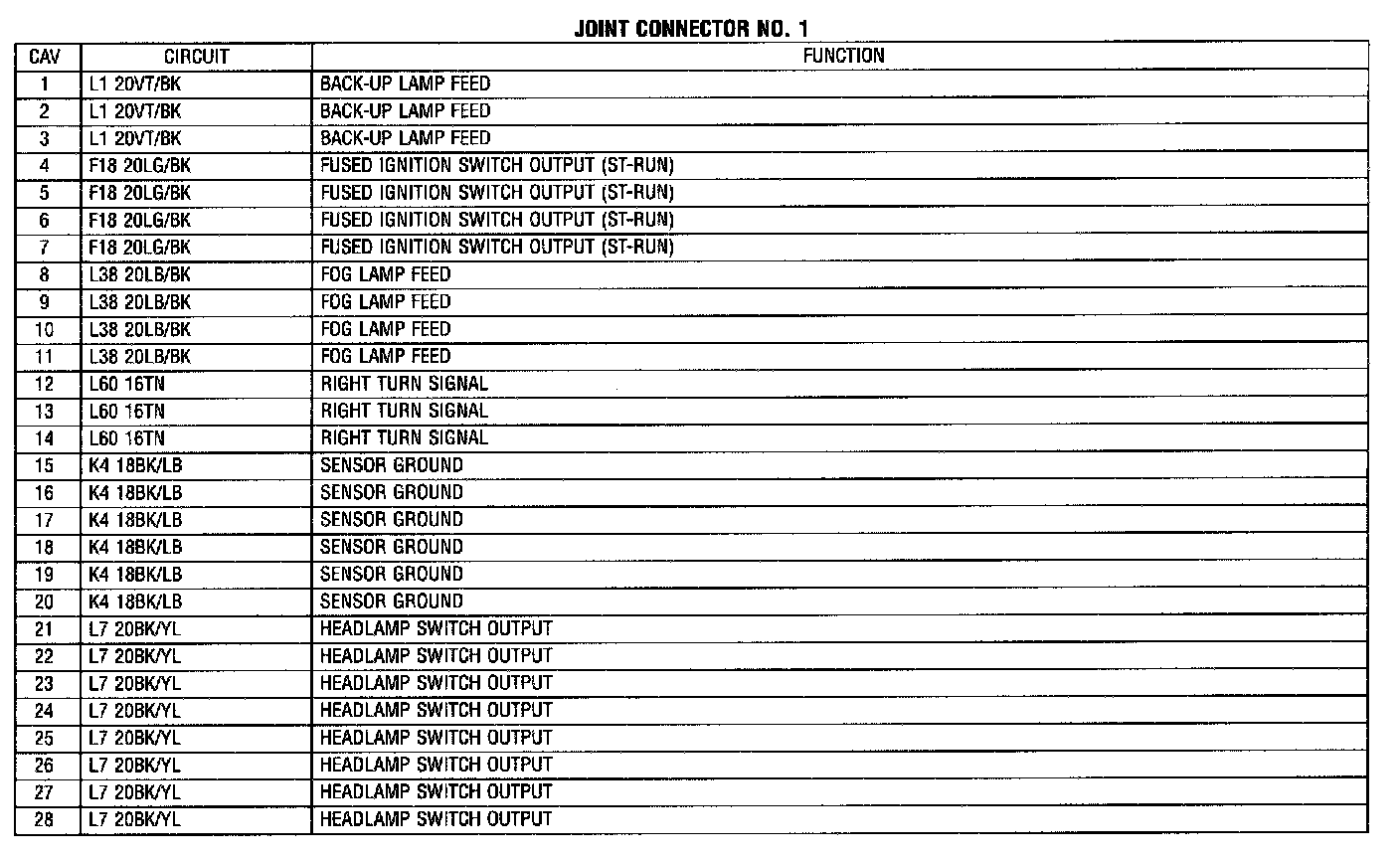

Joint Connector No.1:

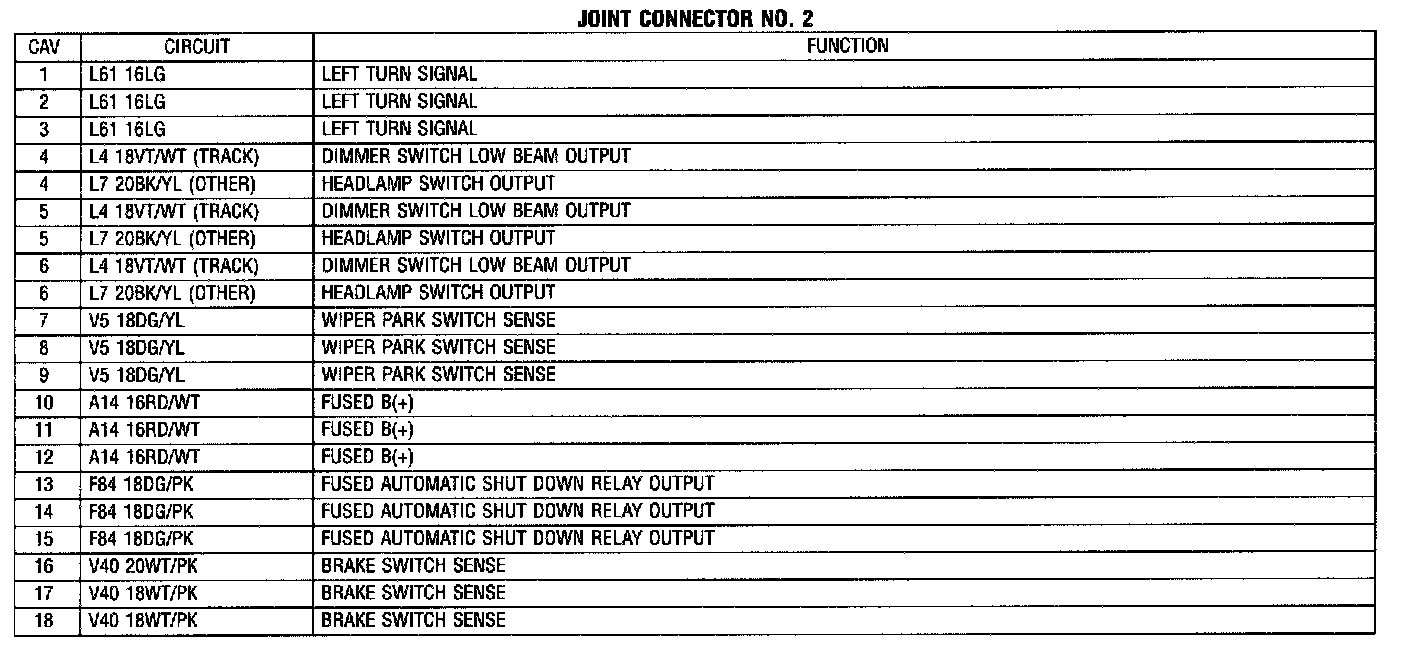

Joint Connector No.2:

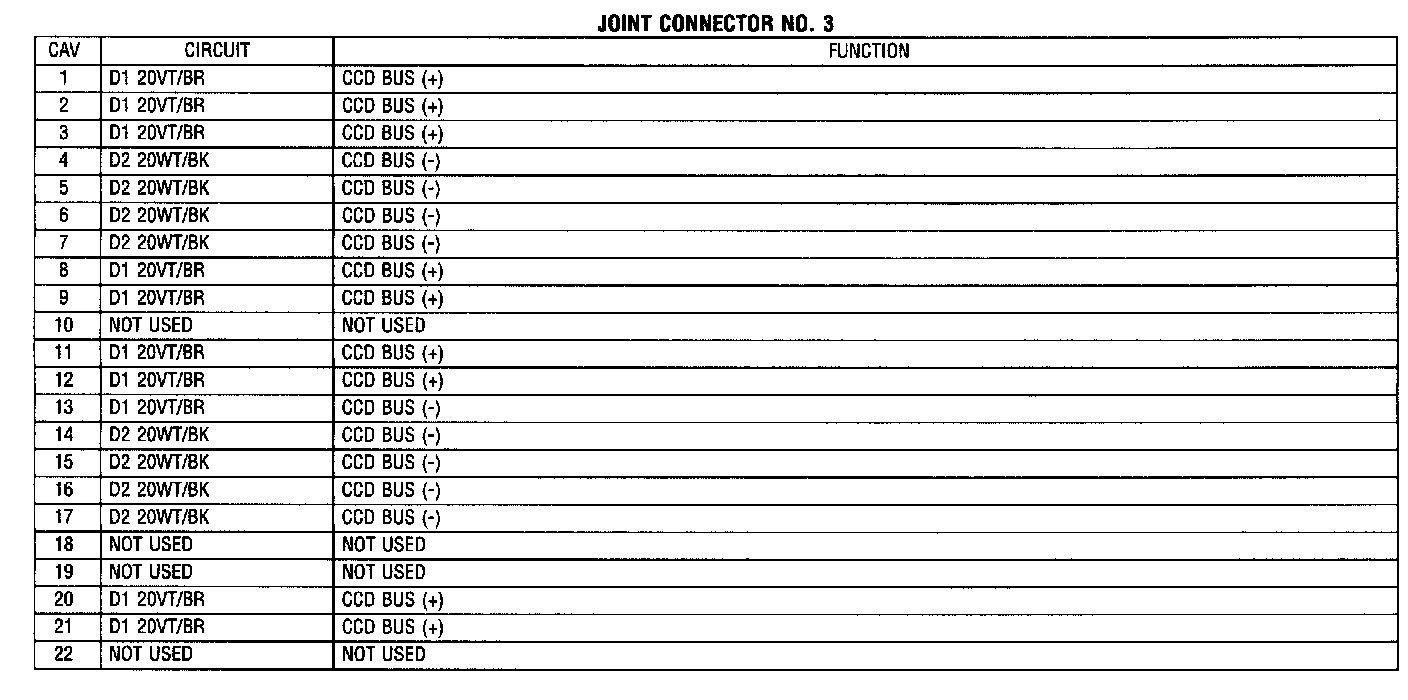

Joint Connector No.3:

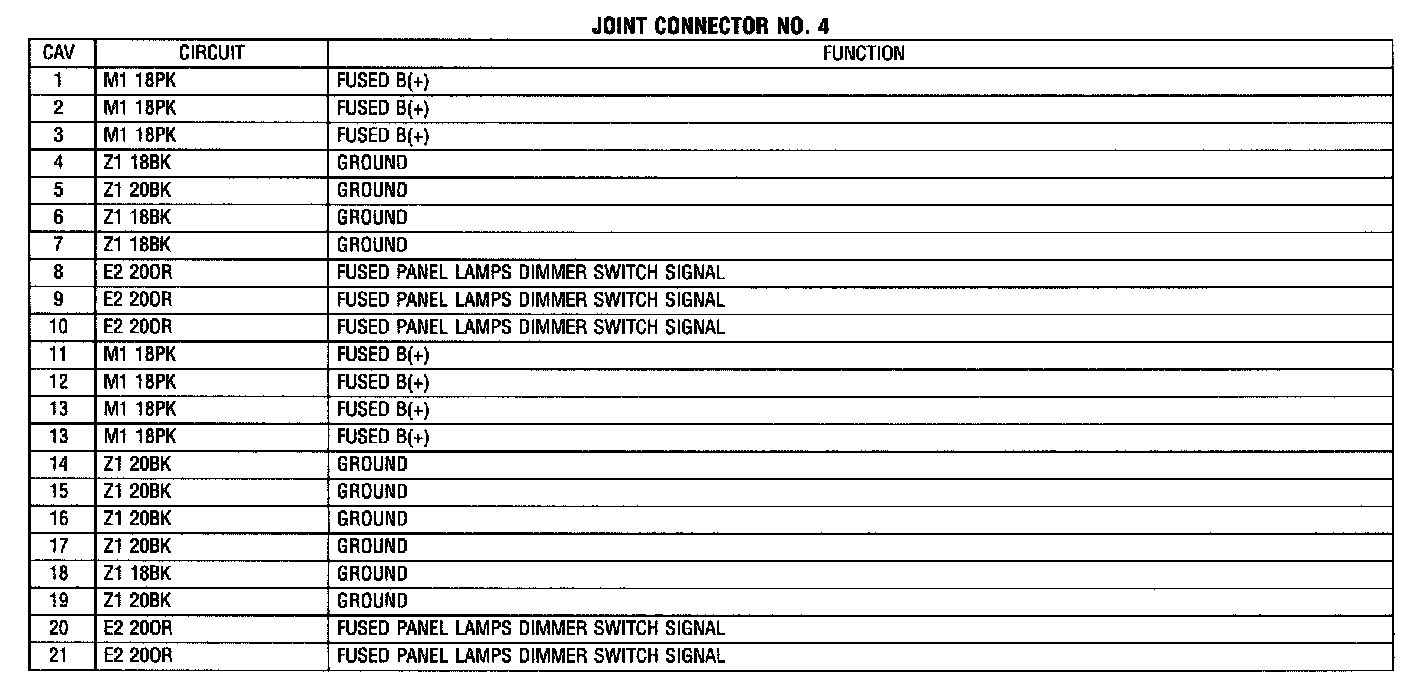

Joint Connector No.4:

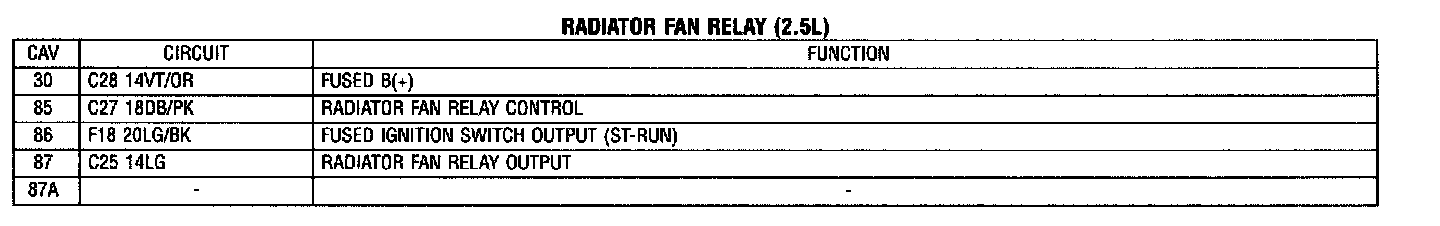

Radiator Fan Relay (2.5L):

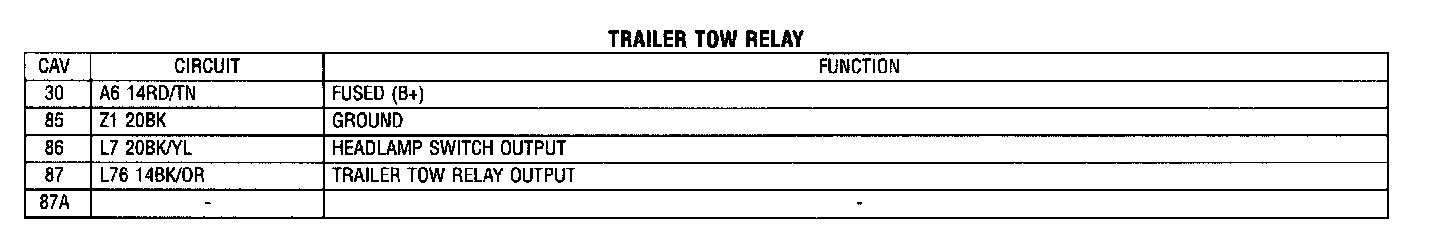

Trailer Tow Relay:

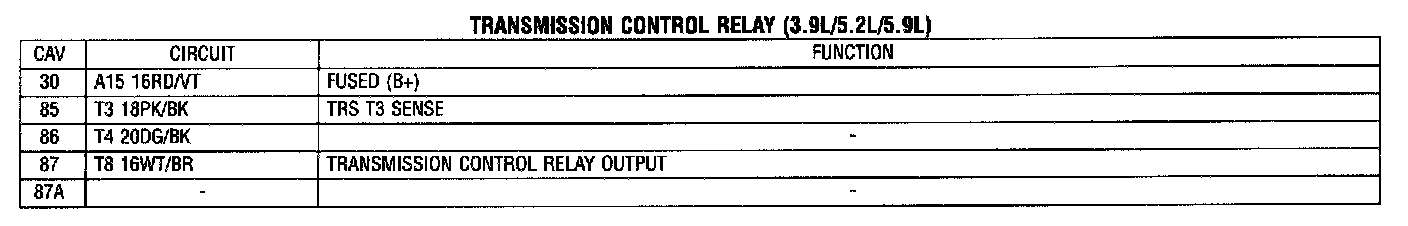

Transmission Control Relay:

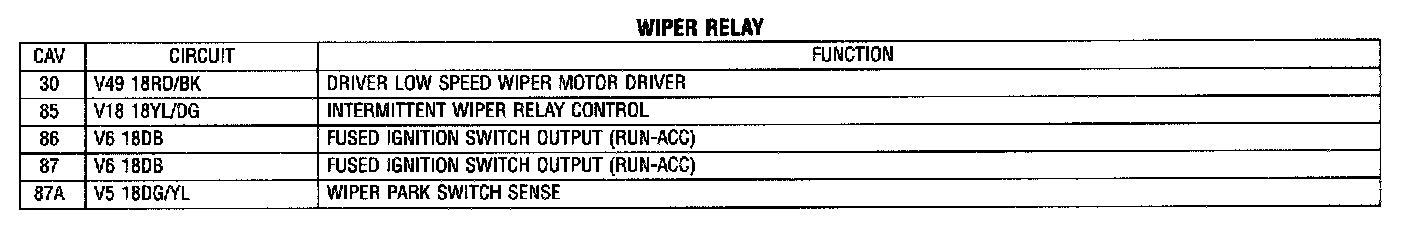

Wiper Relay:
