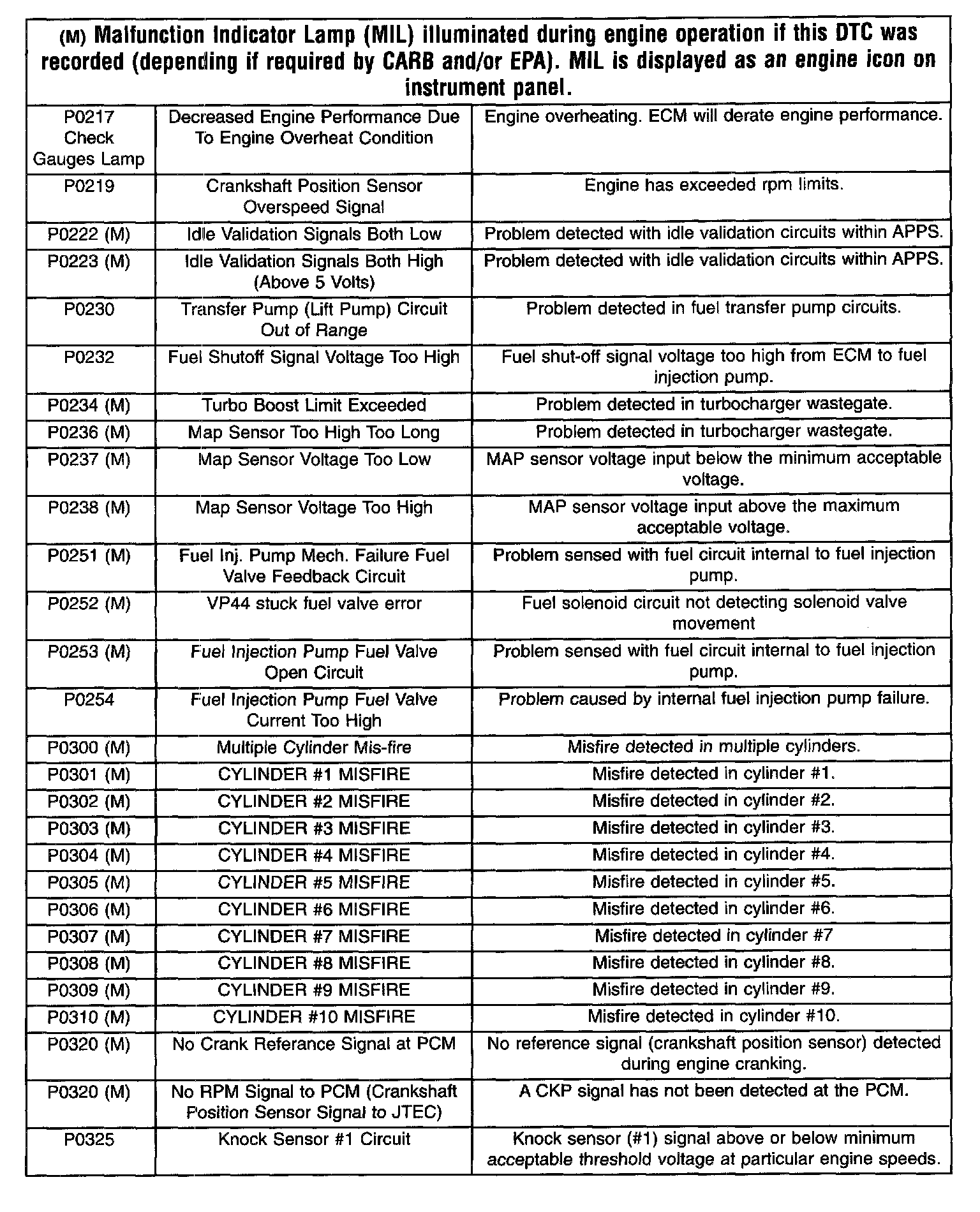

Diagnostic Trouble Code Descriptions P0217 - P0325:

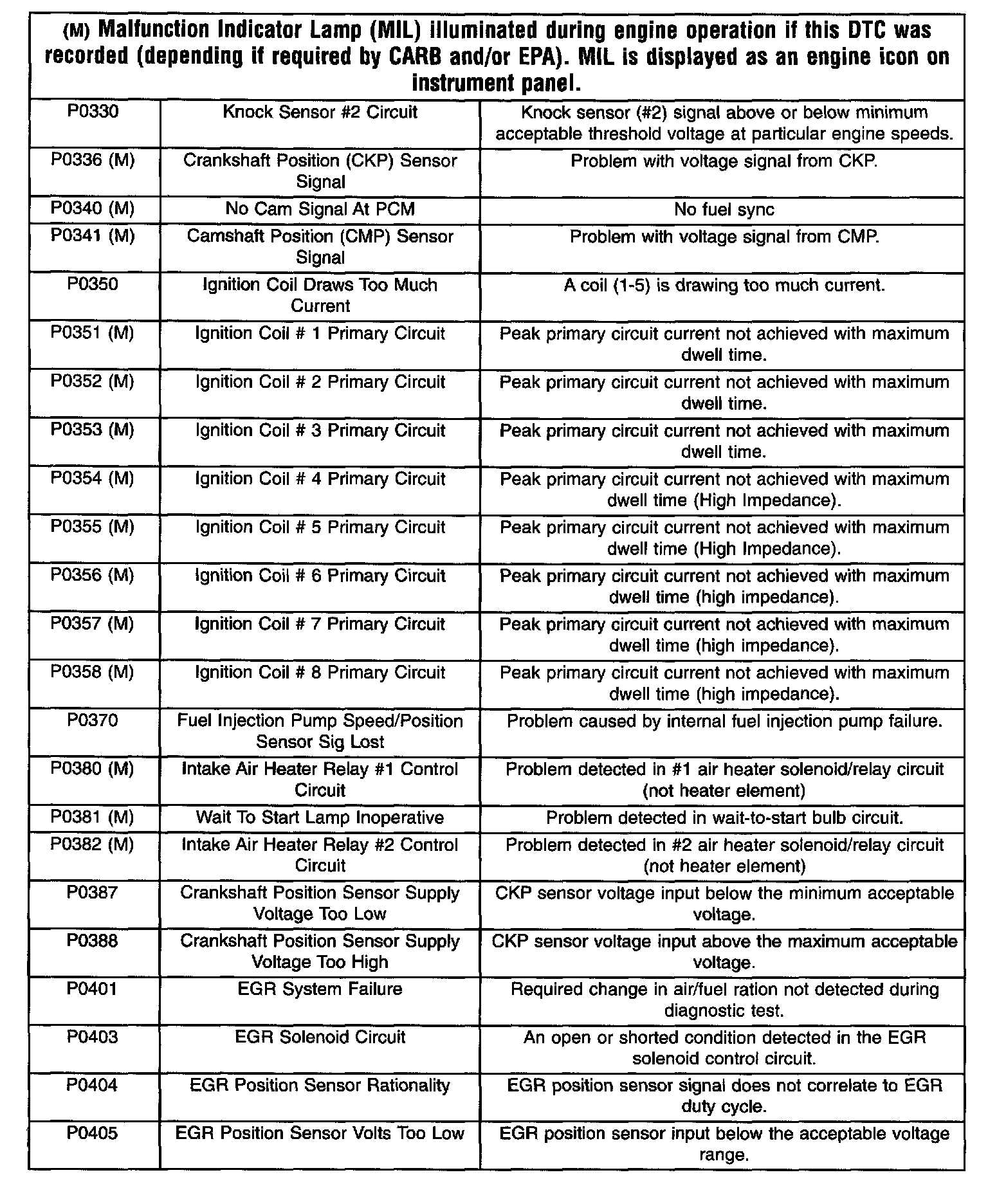

Diagnostic Trouble Code Descriptions P0330 - P0405:

Diagnostic Trouble Code Descriptions P0406 - P0562:

Diagnostic Trouble Code Descriptions P0563 - P0743:

Diagnostic Trouble Code Descriptions P0743 - P1281:

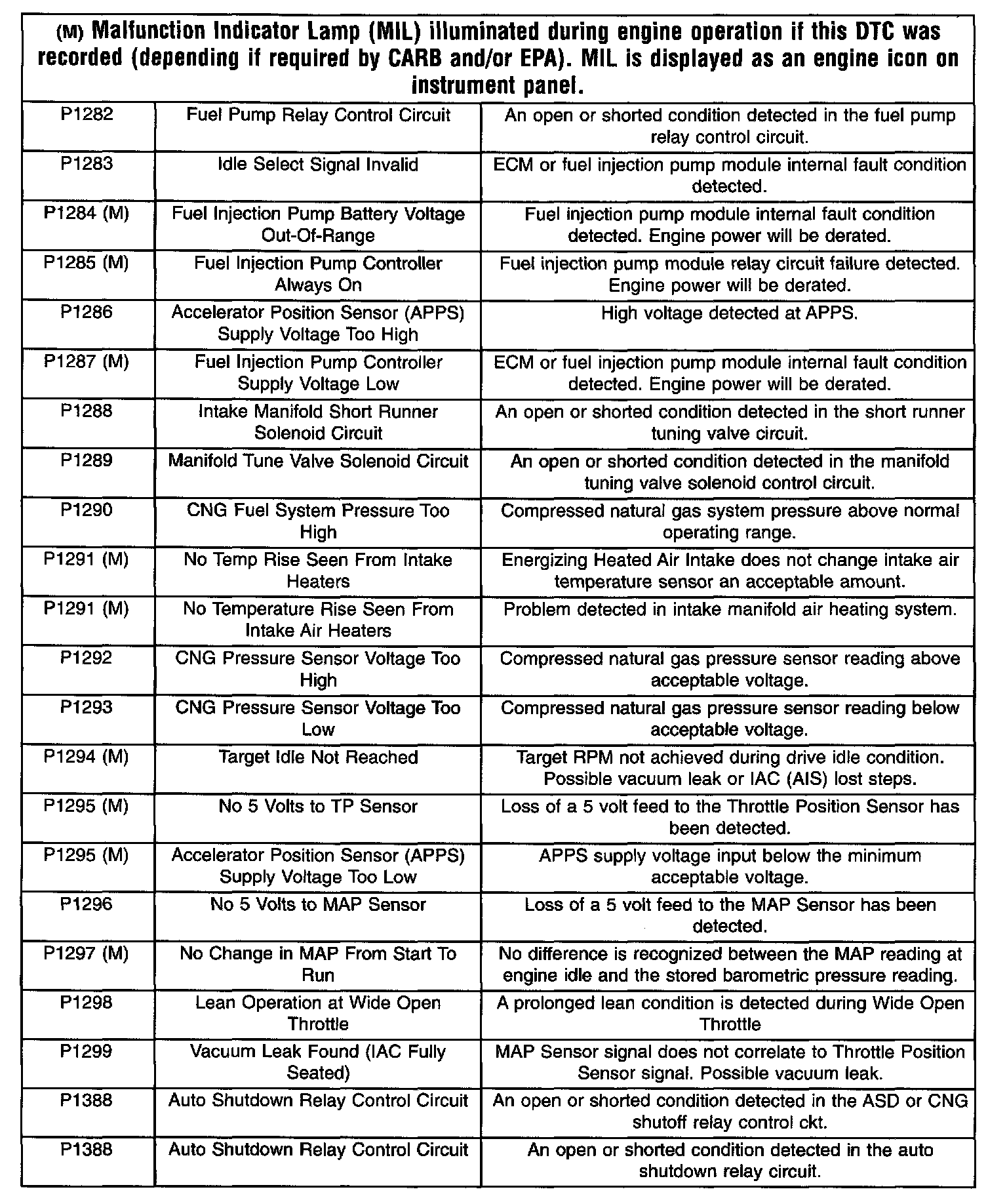

Diagnostic Trouble Code Descriptions P1282 - P1388:

Diagnostic Trouble Code Descriptions P1389 - P1490:

Diagnostic Trouble Code Descriptions P1491 - P1681:

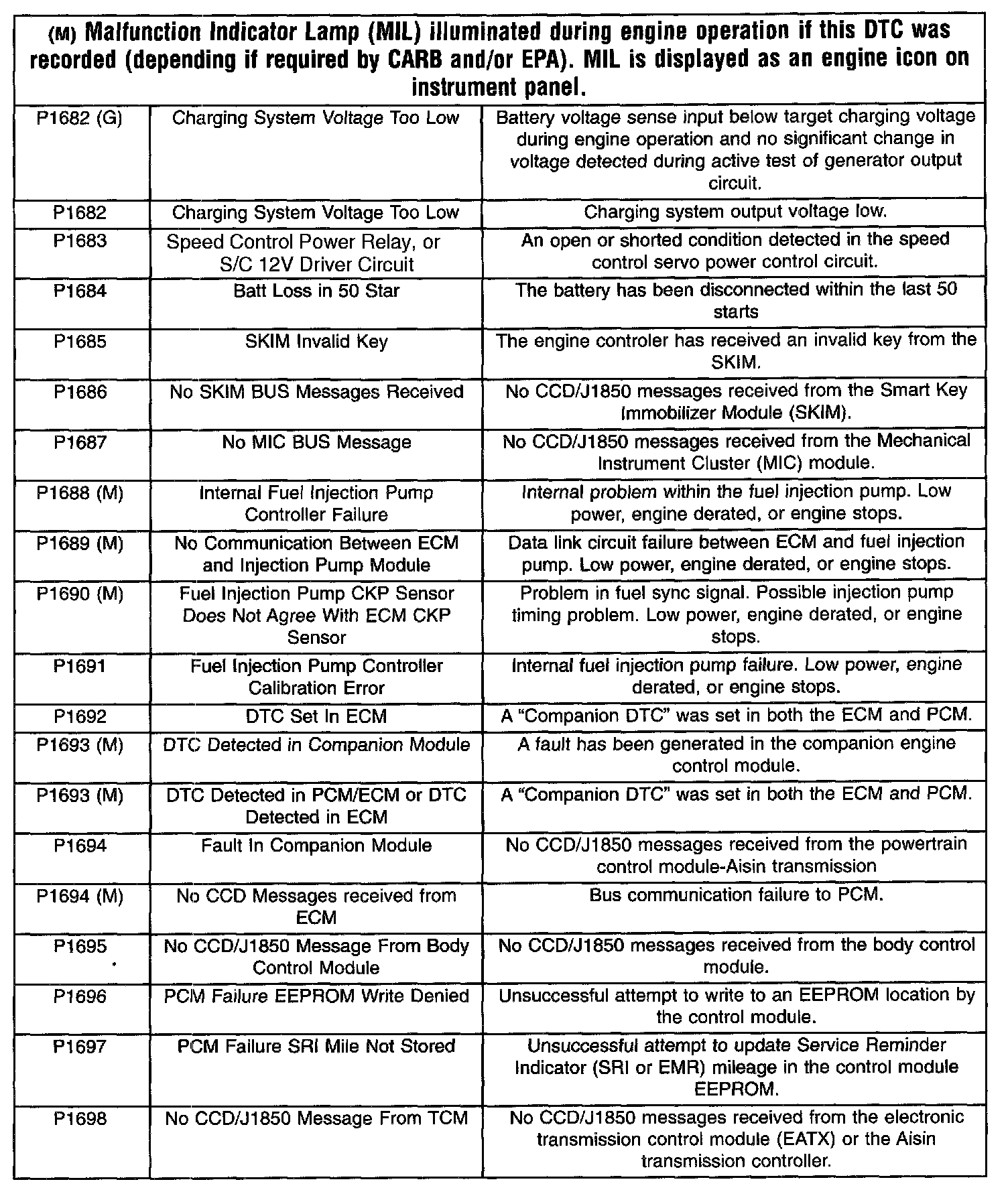

Diagnostic Trouble Code Descriptions P1682 - P1698:

Diagnostic Trouble Code Descriptions P1698 - P1899:

DIAGNOSTIC TROUBLE CODES
A Diagnostic Trouble Code (DTC) indicates that the Powertrain Control Module (PCM) has recognized an abnormal condition in the system.

DTC's are the results of a system or circuit failure, but do not directly identify the failed component or components.

Technicians must retrieve stored DTC's by connecting the DRB III scan tool (or an equivalent scan tool) to the 16-way data link connector. This connector is located on the lower edge of the instrument panel near the steering column.

Obtaining DTC's

WARNING: APPLY PARKING BRAKE AND/OR BLOCK WHEELS BEFORE PERFORMING ANY TEST ON AN OPERATING ENGINE.

1. Connect the DRB III scan tool to the data link (diagnostic) connector.
2. Turn the ignition switch ON, access Read Fault A Screen. Record all the DTC's shown on the DRB scan tool.
3. To erase DTC's, use the Erase Trouble Code data screen on the DRB III scan tool.

NOTE: For a list of DTC's, refer to the charts.
