Front Fender

FRONT FENDER

REMOVAL

1. Remove fender extension.

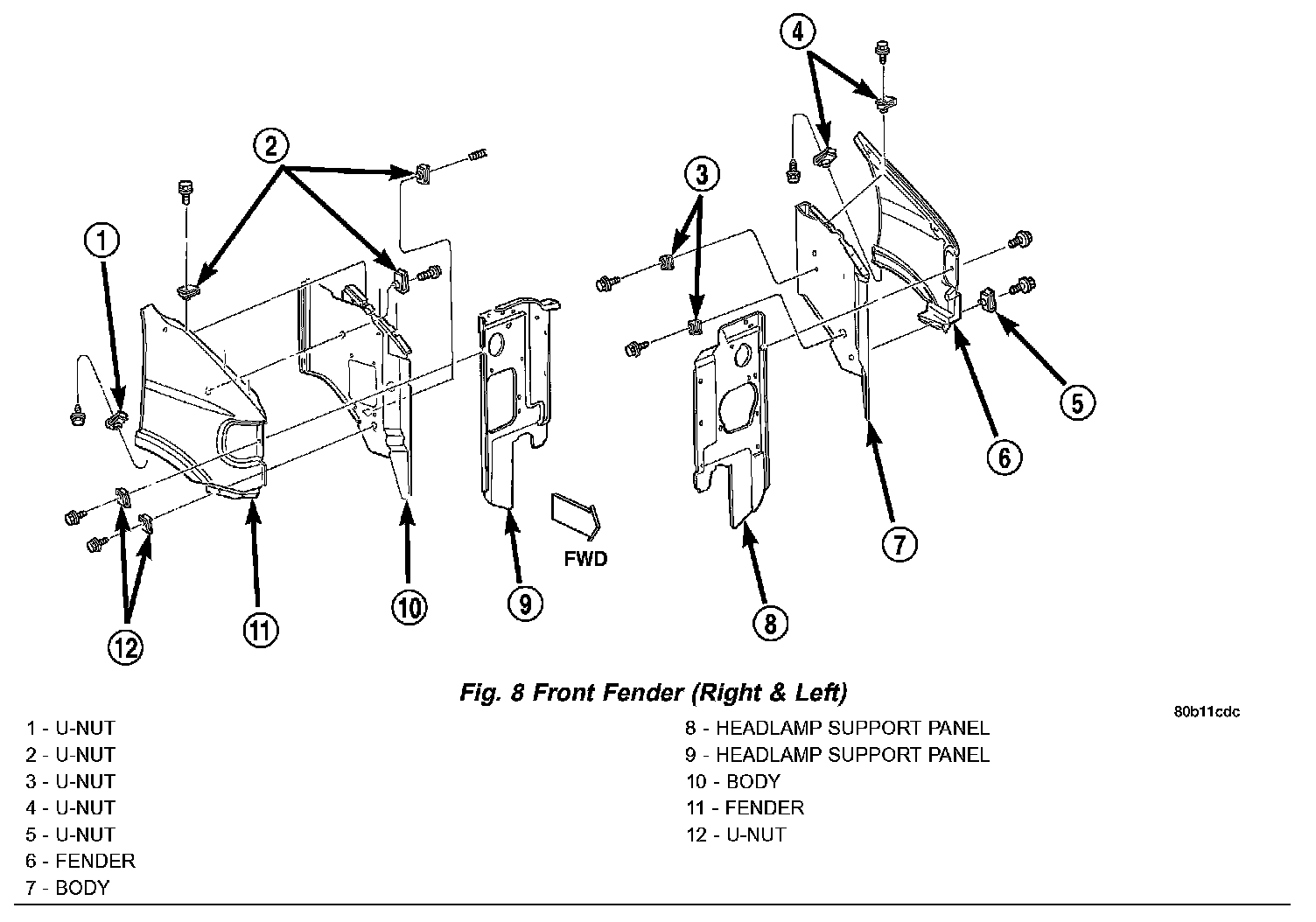

Fig. 8:

2. Remove bolts attaching fender to body (Fig. 8).

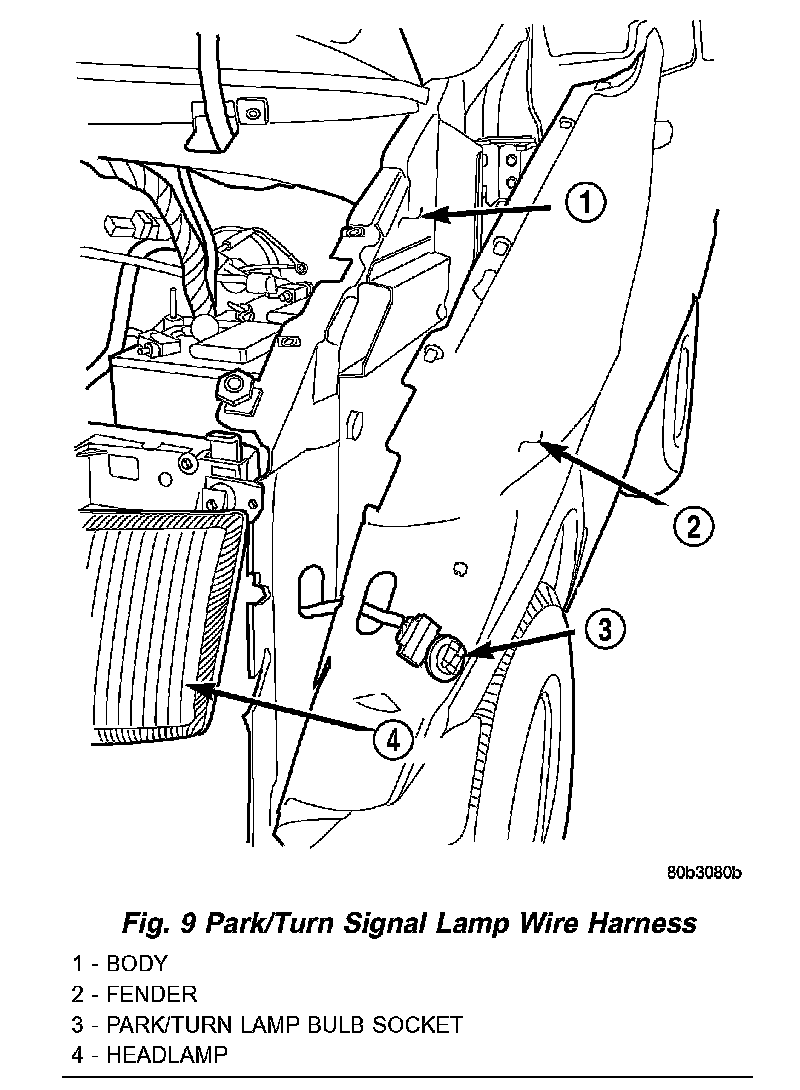

Fig. 9:

3. Route park/turn signal lamp wire harness through access hole in fender (Fig. 9).
4. Carefully pull outward on front bumper upper fascia and slide fender rearward.
5. Separate fender from vehicle.

INSTALLATION

1. Position fender at vehicle.
2. Carefully pull outward on front bumper upper fascia and slide fender forward.
3. Route park/turn signal lamp wire harness through access hole in fender.
4. Install bolts attaching fender to body (Fig. 8).
5. Install fender extension.
