Front

REMOVAL
1. Disconnect and isolate the battery negative cable.

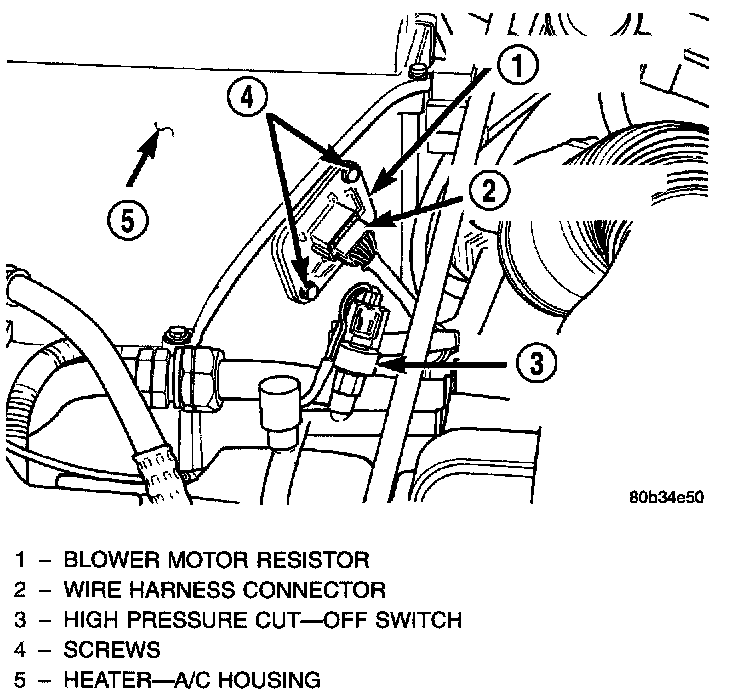

Front Blower Motor Resistor Remove/Install:




2. Unplug the wire harness connector from the blower motor resistor, which is located on the inboard side of the heater-A/C housing.
3. Remove the two screws that secure the blower motor resistor to the heater-A/C housing.
4. Remove the front blower motor resistor from the heater-A/C housing.

INSTALLATION
1. Position the front blower motor resistor to the mounting hole on the inboard side of the heater-A/C housing.
2. Secure the front blower motor resistor to the heater-A/C housing with two screws. Tighten the mounting screws to 2.2 Nm (20 in. lbs.).
3. Plug the wire harness connector into the front blower motor resistor.
4. Connect the battery negative cable.
