Four Wheel Antilock System

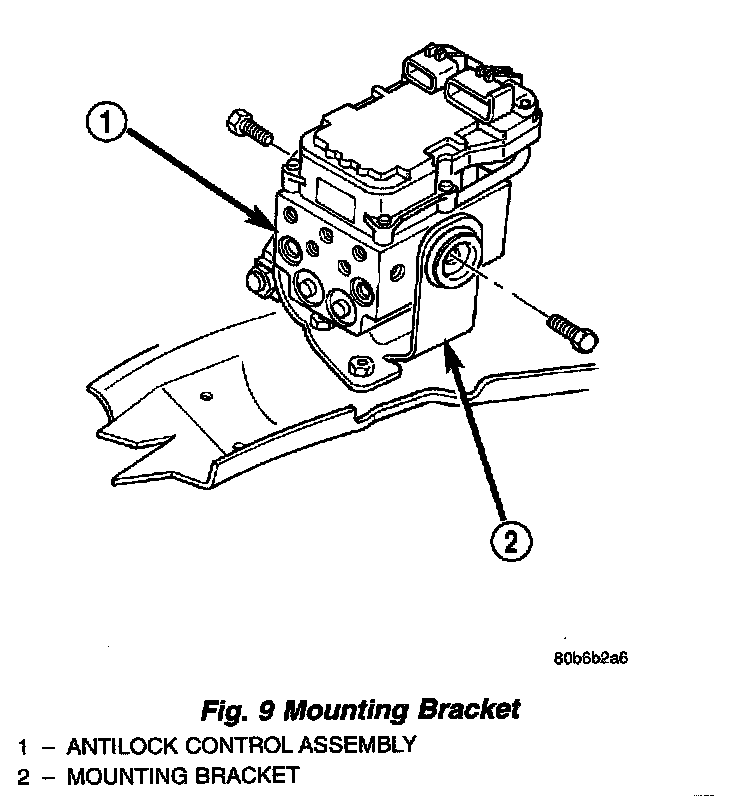

REMOVAL

NOTE: If the antilock control assembly needs to be replaced, the rear axle type and tire revolutions per mile must be programed into the new CAB.

(1) Disconnect battery negative cable.
(2) Remove the brake lines from HCU.
(3) Push the harness connector locks to release the locks, then remove the connectors from the CAB.





(4) Remove the nuts which attaches the assembly to the mounting bracket.
(5) Remove the assembly from the vehicle.

INSTALLATION

NOTE: If the antilock control assembly needs to be replaced, the rear axle type and tire revolutions per mile must be programed into the new CAB.

(1) Install the antilock assembly into the bracket and tighten bolts to 14 - 15 Nm (10 - 12 ft. lbs.).
(2) Connect the CAB harnesses.
(3) Connect the brake lines to the HCU. Tighten brake line fittings to 19 Nm (170 inch lbs.)
(4) Connect battery.
(5) Bleed brake system
