System Schematic

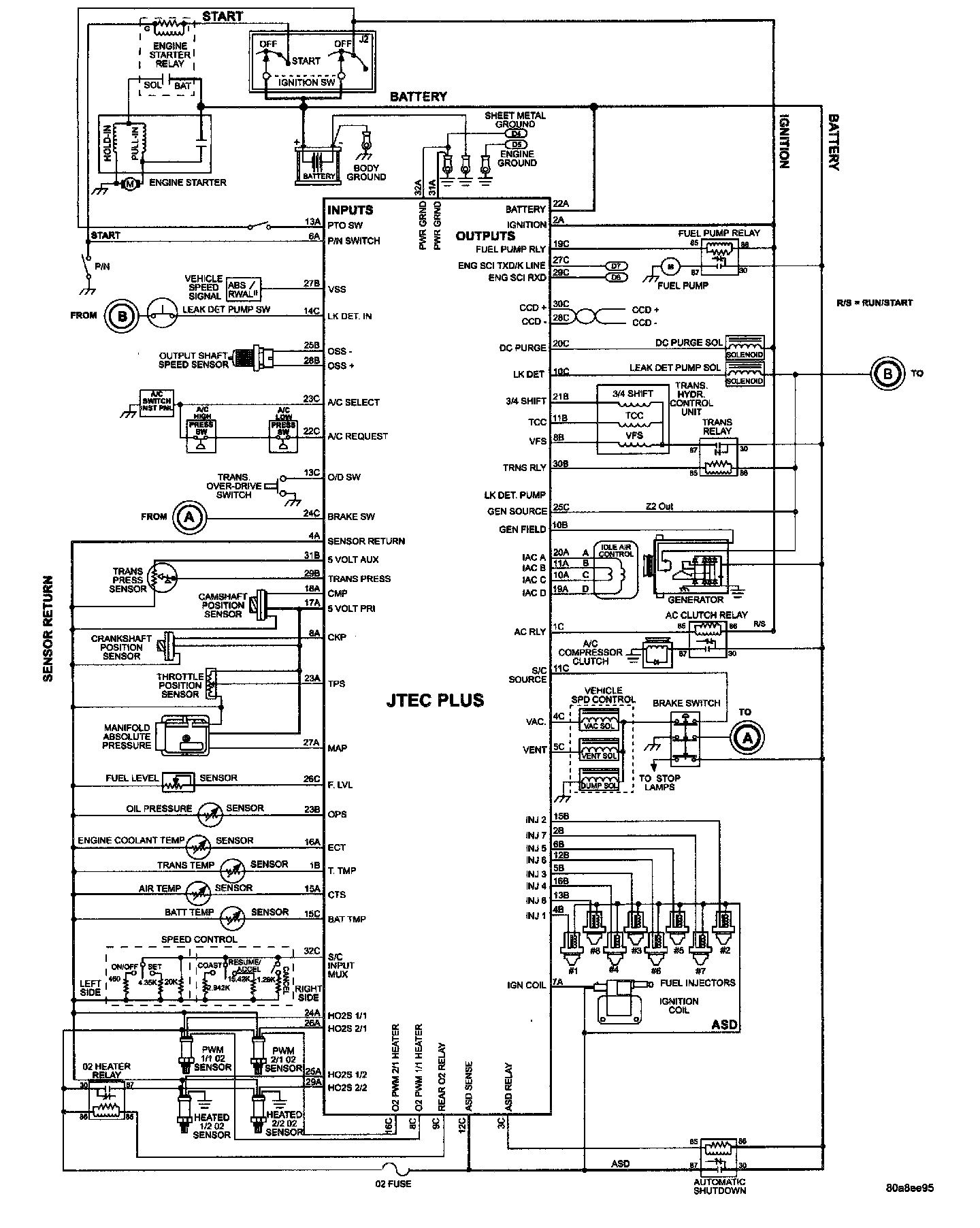

2001 Dodge BR/BE 5.2L/Auto California JTEC System:

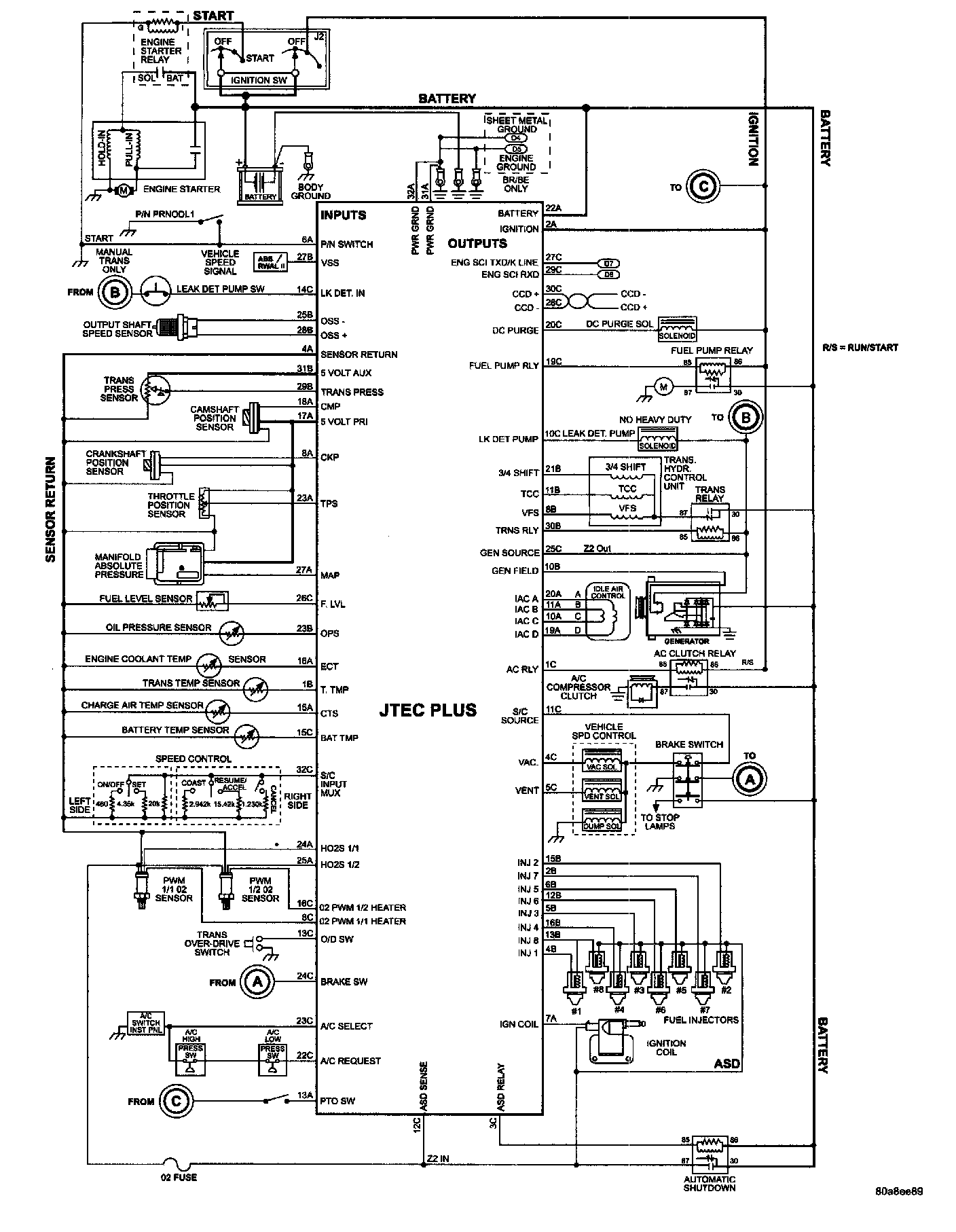

2001 Dodge BR/BE 5.2/5.9L FED/CAL M5, 5.2/5.9L FED Auto JTEC System:
