Power Window Switch: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

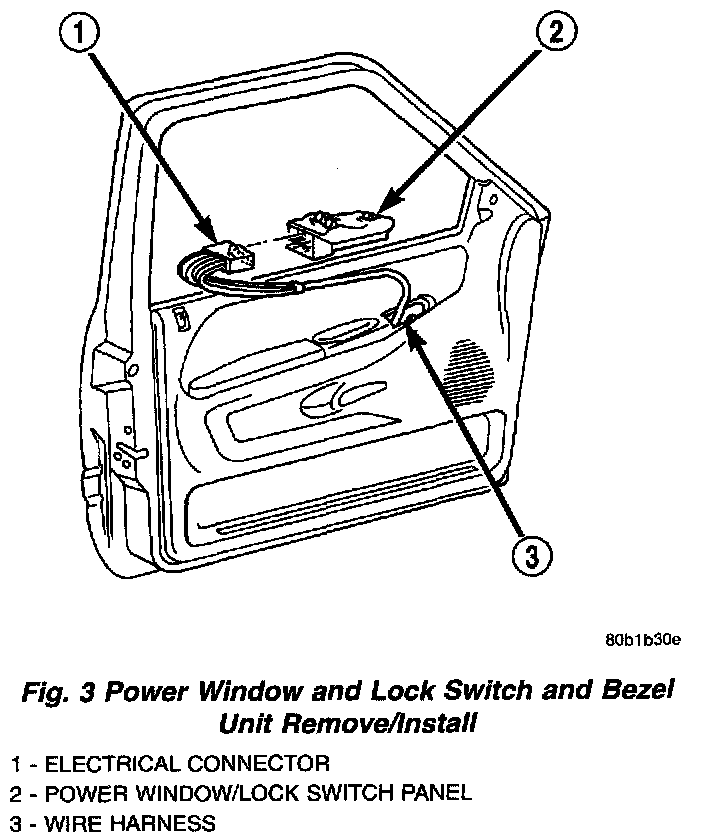

Fig.3 Power Window And Lock Switch And Bezel Unit Remove/Install:

2. Using a wide flat-bladed tool such as a trim stick, gently pry the upper edge of the switch bezel at the front and the rear to release the retainer clips that secure the switch bezel to the door trim panel opening.
3. Pull the switch and bezel unit away from the door trim panel opening far enough to access and unplug the wire harness connector.
4. Remove the power window and lock switch and bezel unit from the door trim panel.

INSTALLATION
1. Connect the power window switch to the harness connector.
2. Insert the rear of the switch and bezel unit into the opening.
3. Push down on the front of the switch until the retaining tabs snap into place.
4. Reconnect the battery negative cable.
