Engine Compartment/Exhaust System

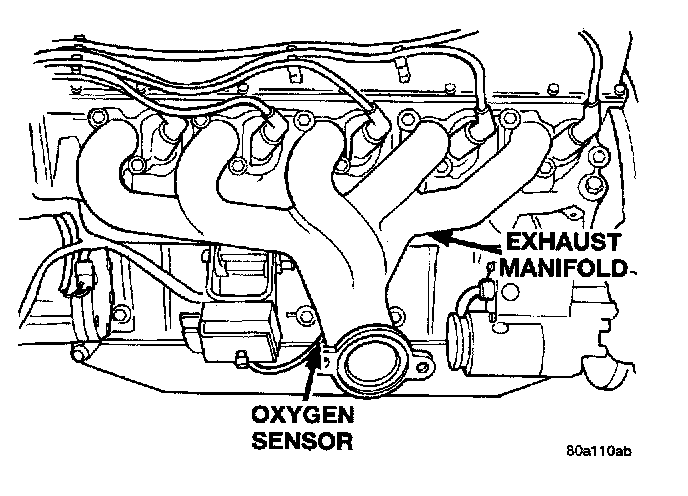

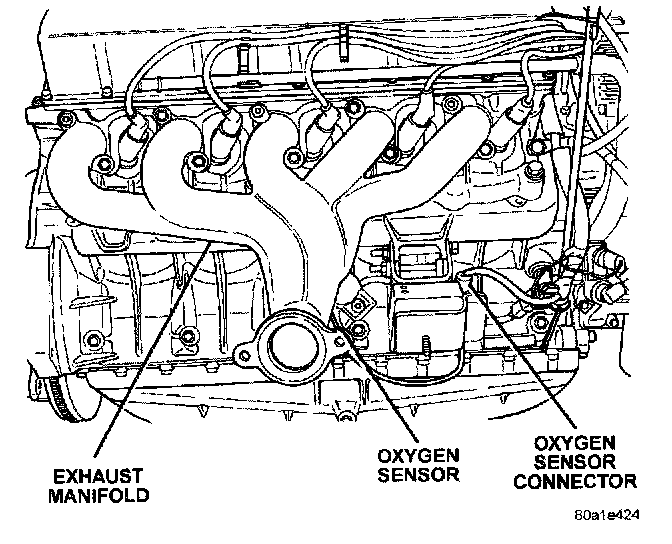

The upstream O2 sensors are in the exhaust manifolds.

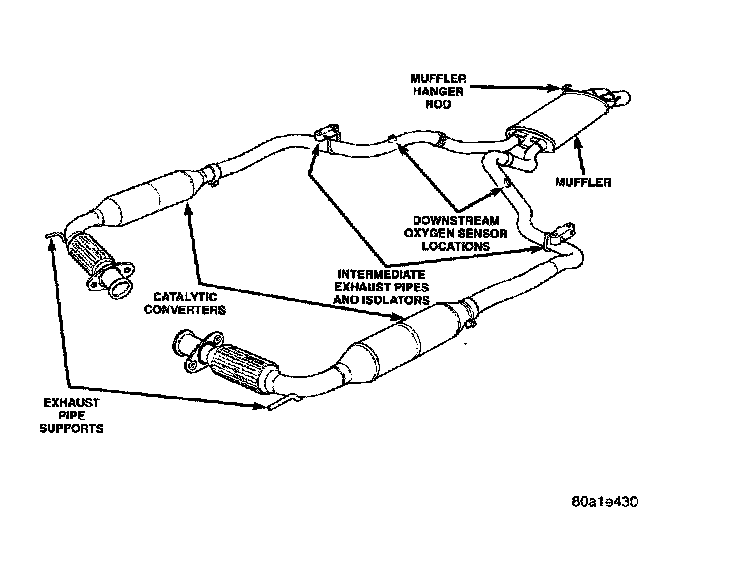

The downstream O2 sensor are in the exhaust system near the rear axle.
