Seat Temperature Control Module: Service and Repair

REMOVAL
1. Working under the center front seat console, cut the tie strap and remove the two push-on retainers that secure the mounting tabs of the heated seat module to the of the mounting bracket.

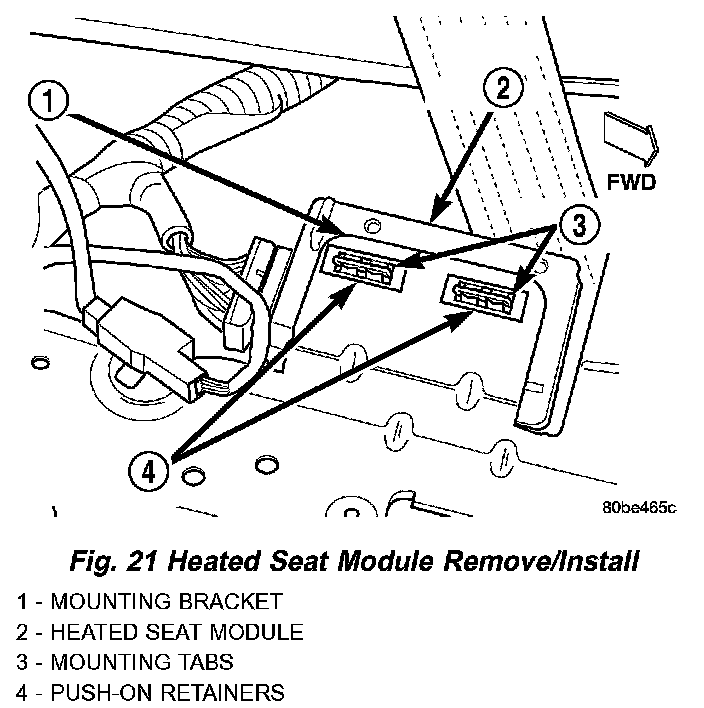

Fig. 21 Heated Seat Module Remove/Install:

2. Position the driver seat to the full forward and inclined position and working under the center of the front seat, from behind the seat, disconnect the seat wire harness connector from the connector receptacle on the back of the heated seat module.
3. Remove the heated seat module from under the front seat.

INSTALLATION
1. Working under the front seat connect the seat wire harness connector to the connector receptacle on the back of the heated seat module.
2. Position the driver seat in the full rearward and reclined position, and working under the front of the seat, install the two push-on retainers onto the heated seat module mounting tabs to secure the module to the top of the mounting bracket or install tie strap.
