Complete Engine Specifications

GENERAL TIGHTENING SPECIFICATIONS

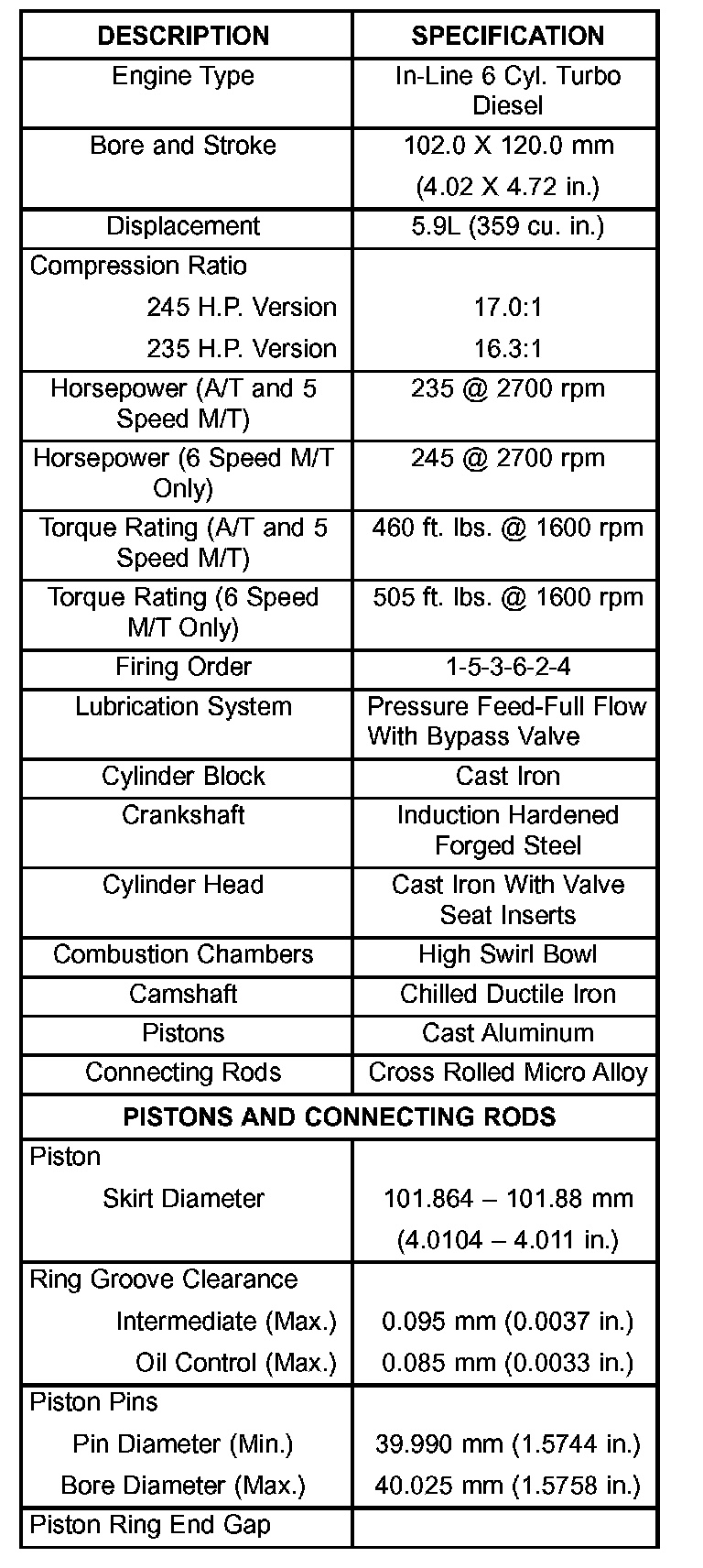

Engine (Part 1 of 2)





Engine (Part 2 of 2)

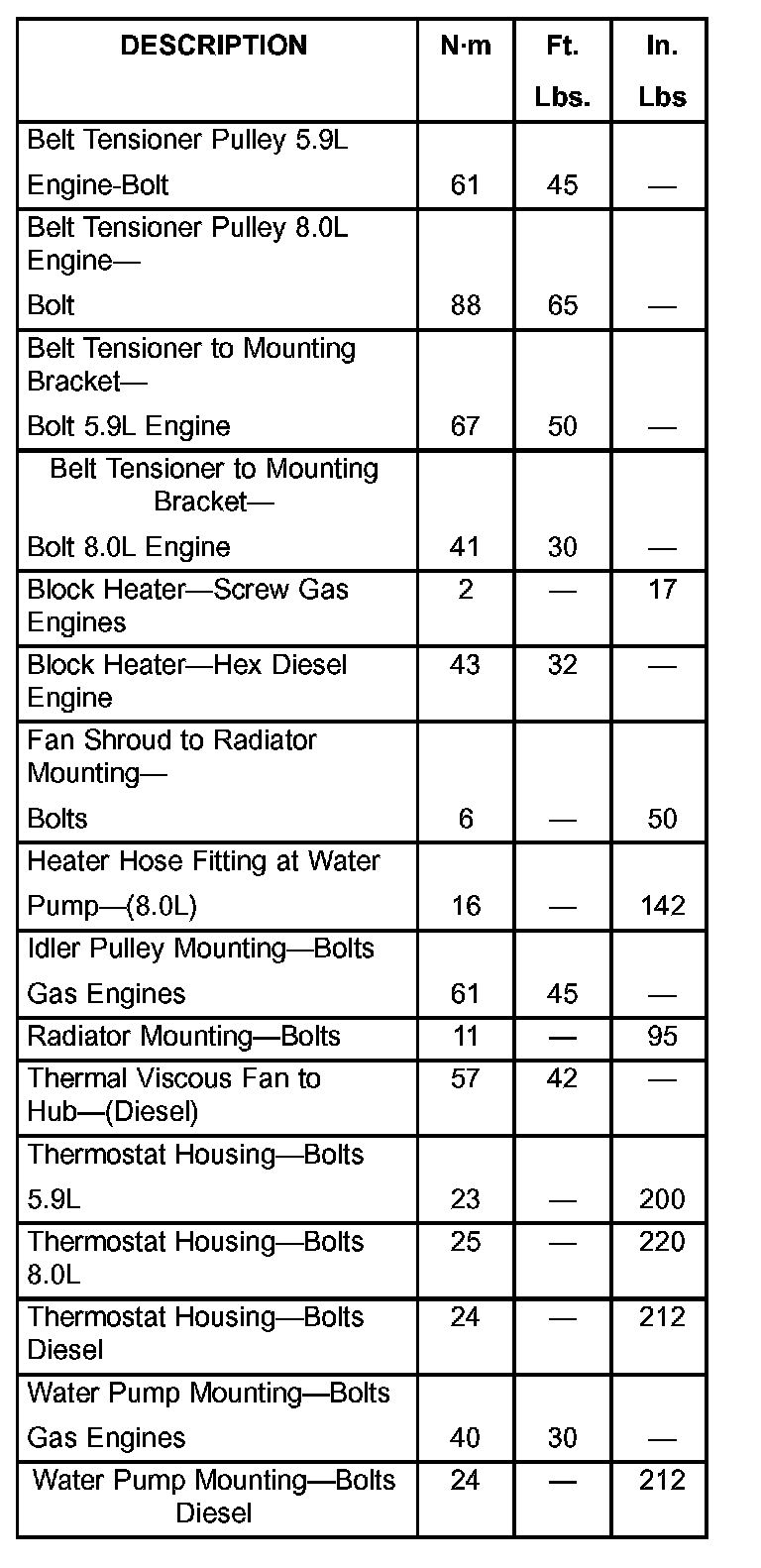

Cooling System

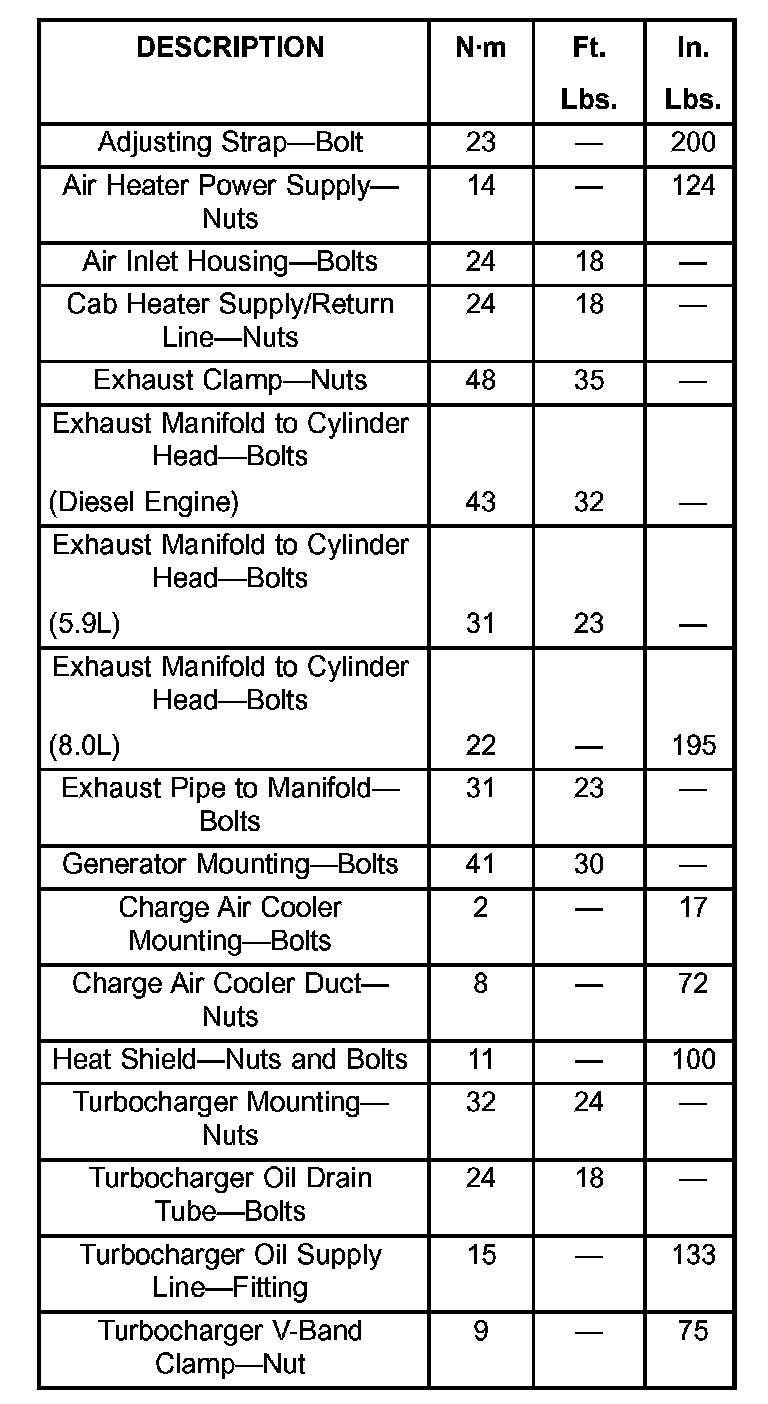

Exhaust

For Exhaust Manifold Tightening Sequence, refer to Exhaust System

DIMENSIONAL SPECIFICATIONS

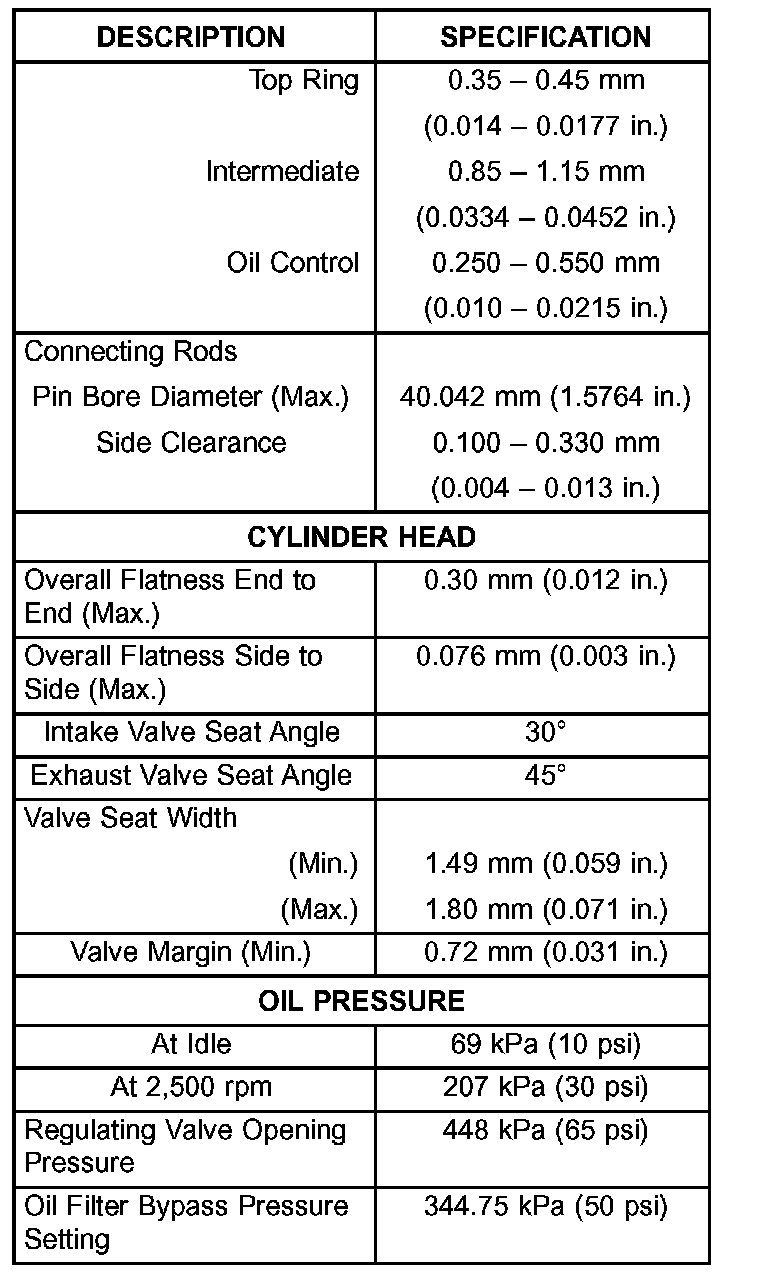

General (Part 1 of 2)





General (Part 2 of 2)

Valve Lash Limit Chart:





Valve Lash Limit Chart





Cylinder Block Refacing Dimensions (Part 1 of 2)





Cylinder Block Refacing Dimensions (Part 2 of 2)





Cylinder Bore Dimension Chart





Repair Sleeve Block Rebore Dimension Chart





Sleeve Driver Construction Specification Chart





Sleeve Machining Dimension Chart





Camshaft Thrust Plate Thickness Chart





Connecting Rod Journal Diameter Limits Chart (Part 1 of 2)





Connecting Rod Journal Diameter Limits Chart (Part 2 of 2)





Main Bearing Bore Diameter Chart





Crankshaft Main Journal Diameter Chart





Piston Protrusion Chart





Alternative Grade Identification Method Chart





Piston Ring Gap Chart
