Fluid Level Inspection
STANDARD PROCEDURE - FLUID LEVEL INSPECTION 1.
Raise vehicle on hoist.
2.
Remove PTU inspection plug (Fig. 6).
3.

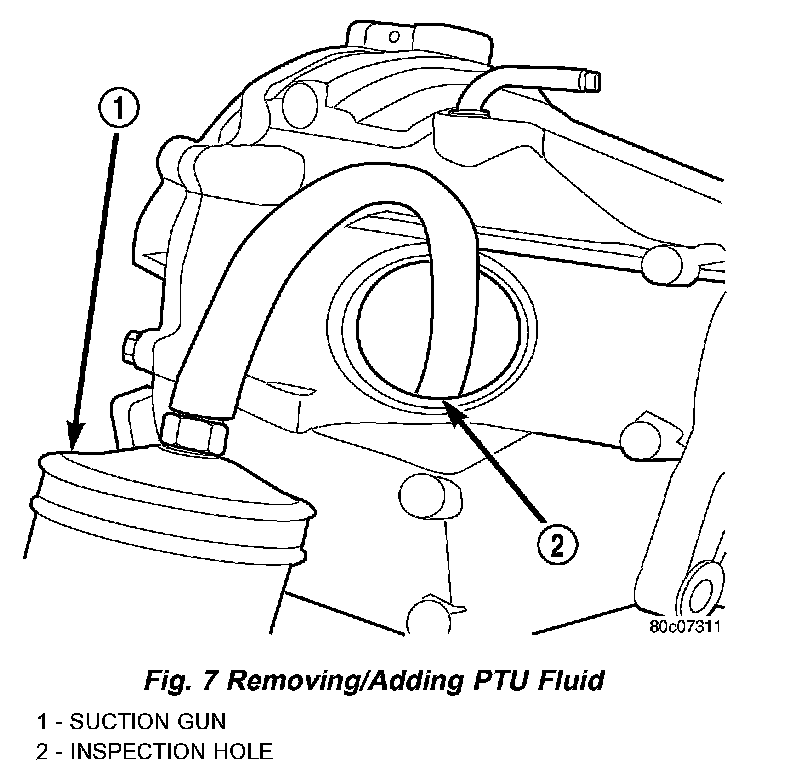

Fluid level should be within 3/16" from bottom of inspection hole. Add Mopar Gear and Axle Lubricant 80W-90 as necessary with suitable suction gun (Fig. 7).
4.
Install inspection plug and torque to
20 Nm (180 inch lbs.) torque.
5.
Lower vehicle.
