Door Module: Service and Repair

DRIVER DOOR MODULE

REMOVAL
1. Disconnect and isolate the battery negative cable.

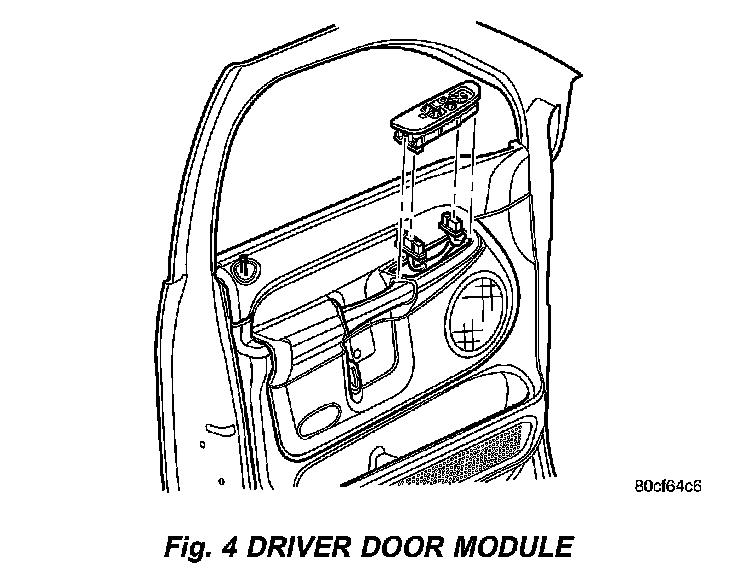

Fig. 4 Driver Door Module:

2. Using a trim stick, gently pry the driver door module from the door panel.
3. Disconnect the electrical harness connectors from the driver door module.

INSTALLATION
1. Connect electrical harness connectors to the driver door module.
2. Position driver door module to door trim panel and press into place.
3. Connect battery negative cable.
