Cylinder Head

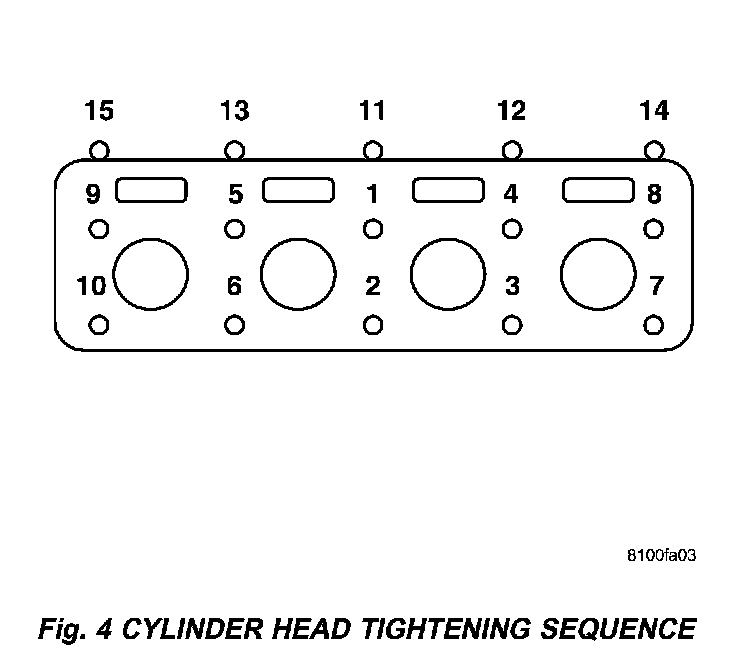

Cylinder Head Bolts
M-12 Bolts
Step 1 34 Nm (25 ft. lbs.)
Step 2 54 Nm (40 ft. lbs.)
Step 3 Turn 90°
M-8 Bolts
Step 1 20 Nm (15 ft. lbs.)
Step 2 34 Nm (25 ft. lbs.)
