Fuel Delivery Check

Test 1 - 2:






SYMPTOM

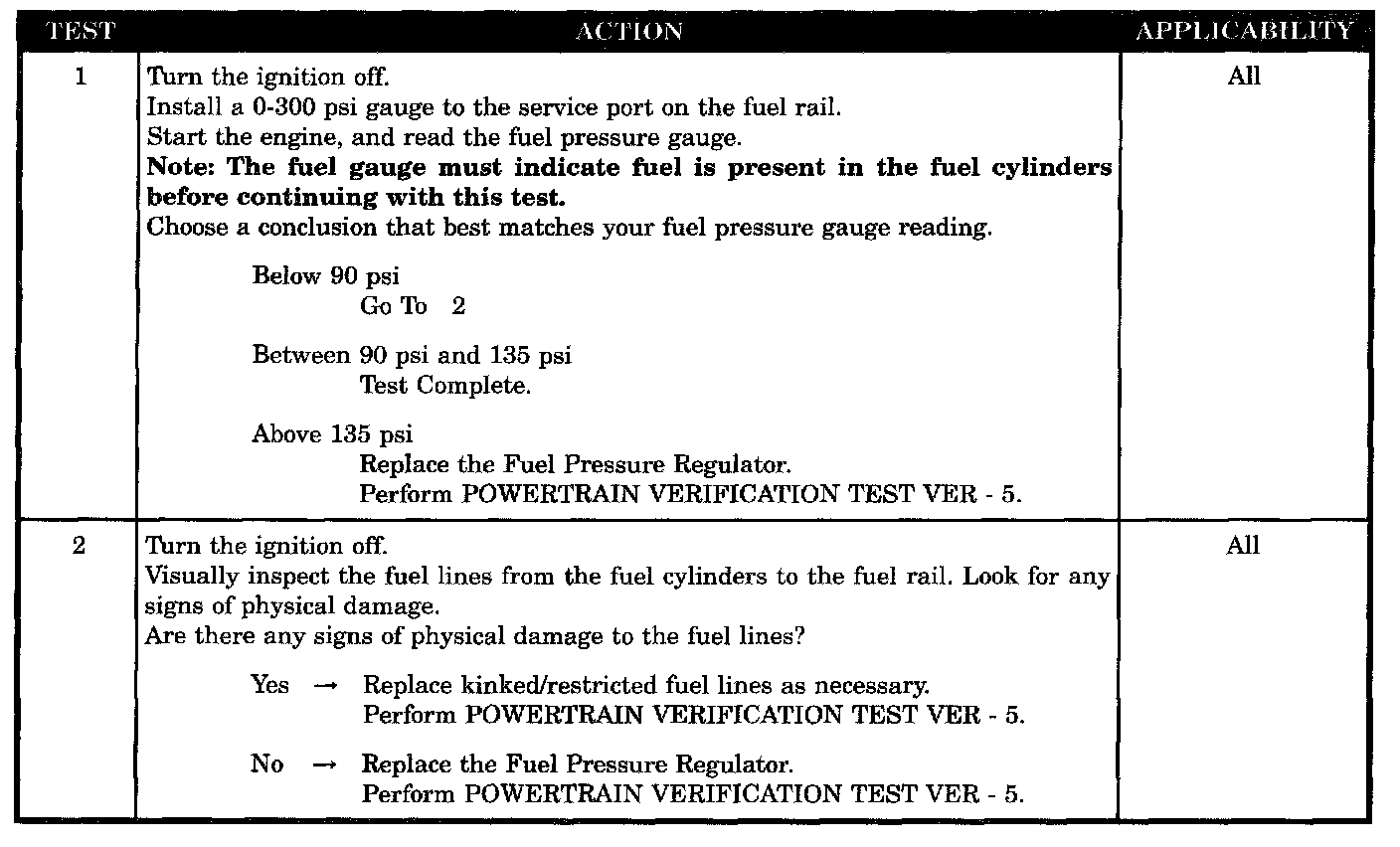

CHECKING FUEL DELIVERY (CNG ENGINES)


POSSIBLE CAUSES
- Fuel Lines Kinked/restricted
- Fuel Pressure Regulator (low PSI)
- Fuel Pressure Regulator (high PSI)
