Checking the PCM Power and Ground Circuits

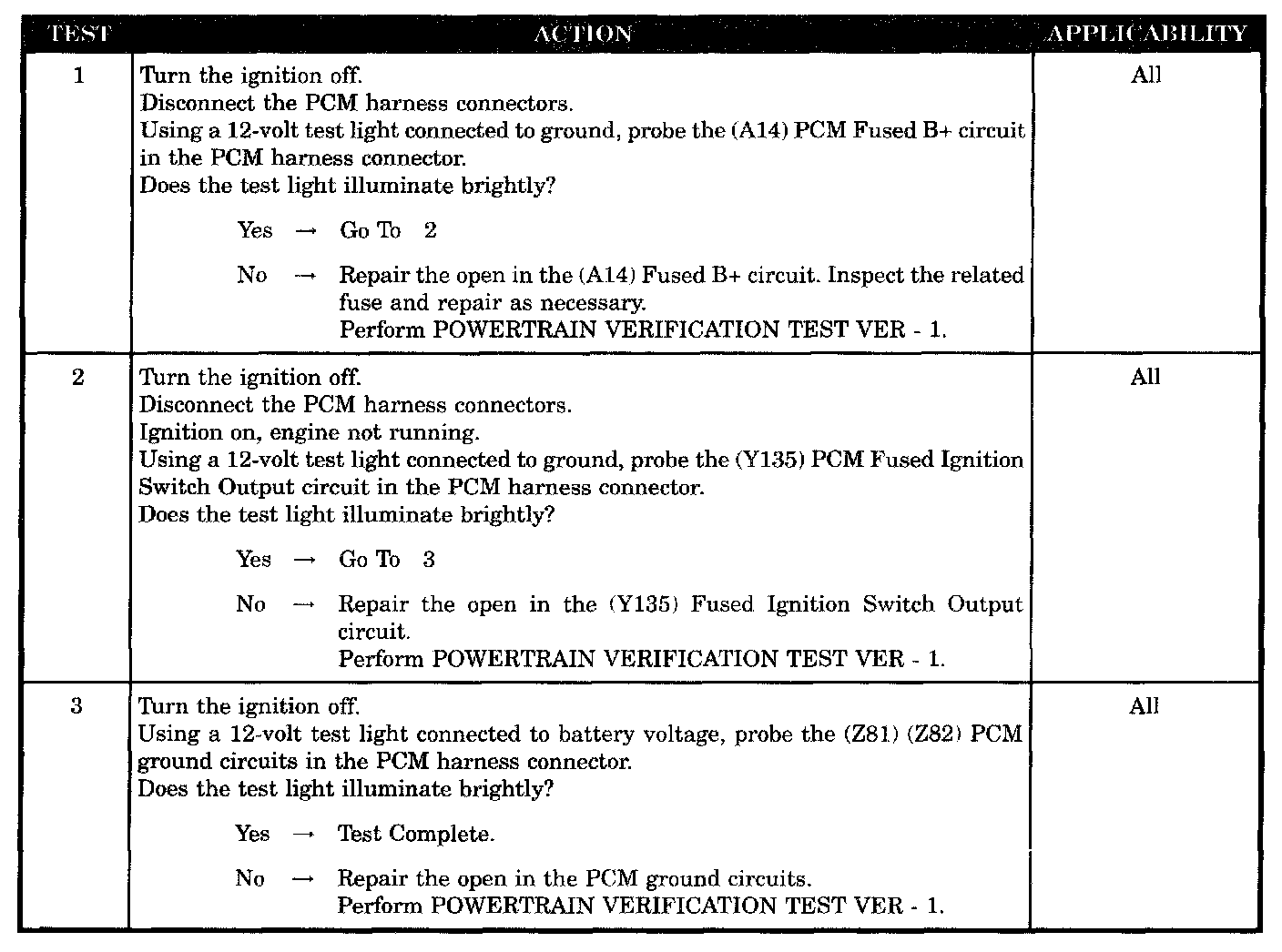

Test 1 - 3:
SYMPTOM
CHECKING THE
PCM
POWER AND GROUNDS
POSSIBLE CAUSES
-
(A14)
PCM
fused B+ circuit
-
(Y135)
PCM
Fused
ignition switch
output circuit
-
(Z81) (Z82)
PCM
Ground circuits
