Front Door Window Regulator: Service and Repair
WINDOW REGULATORREMOVAL 1.
Remove the door glass.

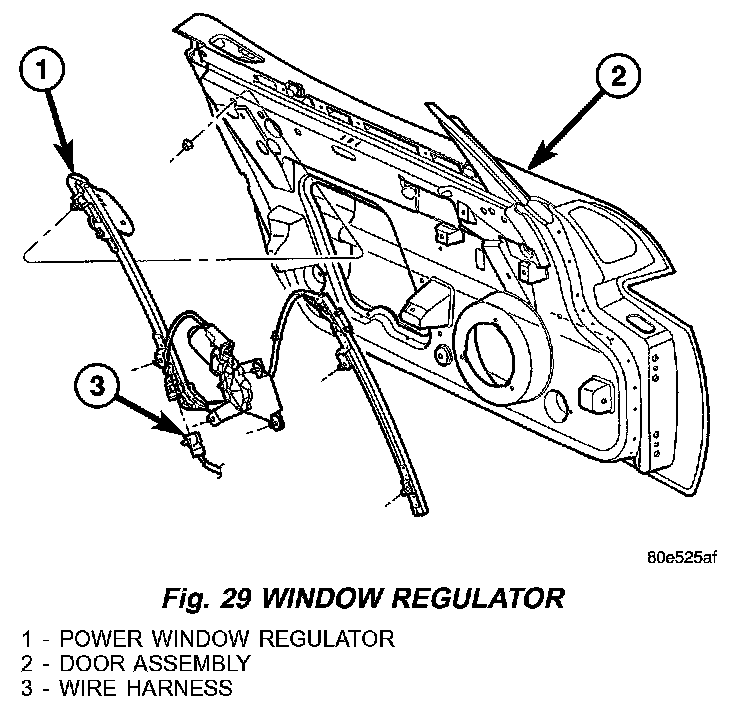

Fig. 29:
2.
Disconnect the regulator electrical connector. (Fig. 29)
3.
Remove the regulator nuts and remove the regulator.
INSTALLATION 1.
Install the regulator and install the nuts.
2.
Tighten the nuts to
12 N.m (9 ft.lbs.).
3.
Connect the electrical connector.
4.
Install the door glass.
