System Specifications

Timing Chain Primary Tensioner Bolts 28 Nm (250 inch lbs.)

Timing Chain Tensioner Arm 28 Nm (250 inch lbs.)

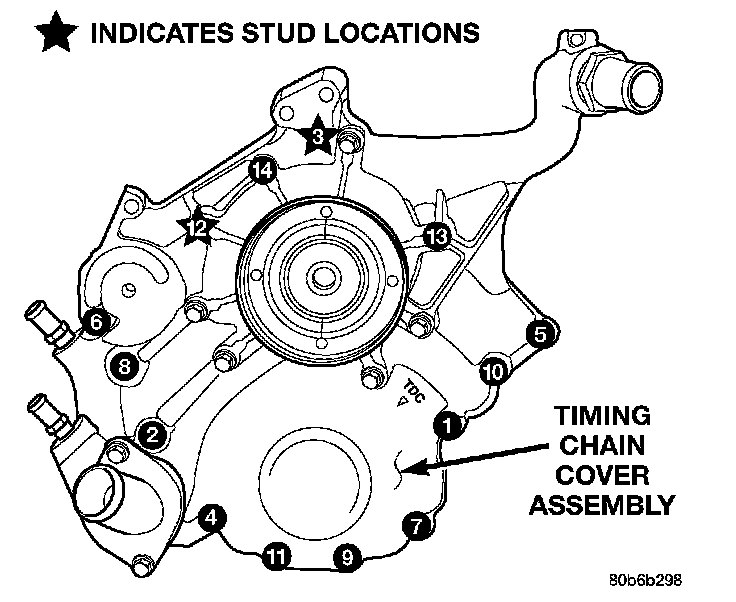

Timing Chain Cover Bolts 58 Nm (43 ft. lbs.)

Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
