Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL




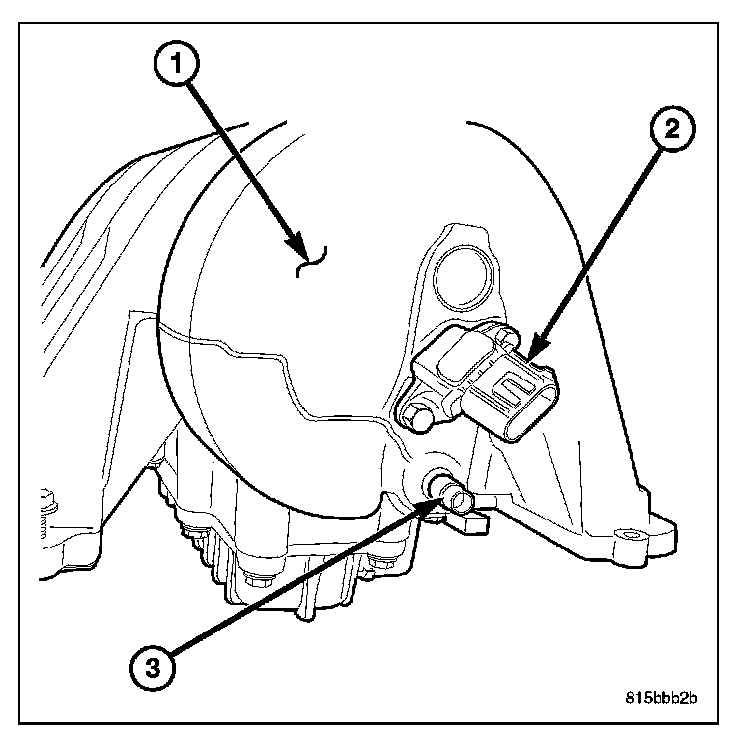

The Manifold Absolute Pressure (MAP) sensor (2) is located at the rear of the intake manifold (1).




1. Disconnect electrical connector at sensor.
2. Remove two sensor mounting bolts (3).

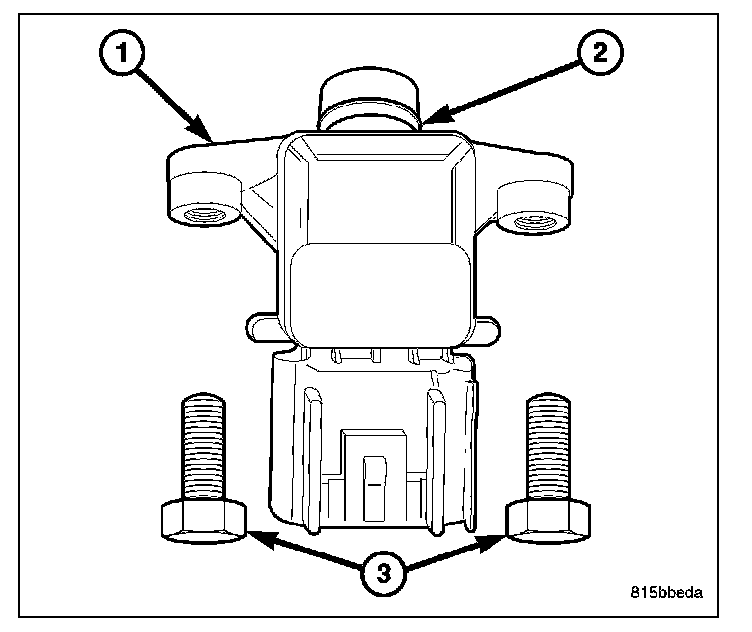

3. Check condition of sensor O-ring (2).

INSTALLATION




1. Clean MAP sensor mounting hole at rear of intake manifold.

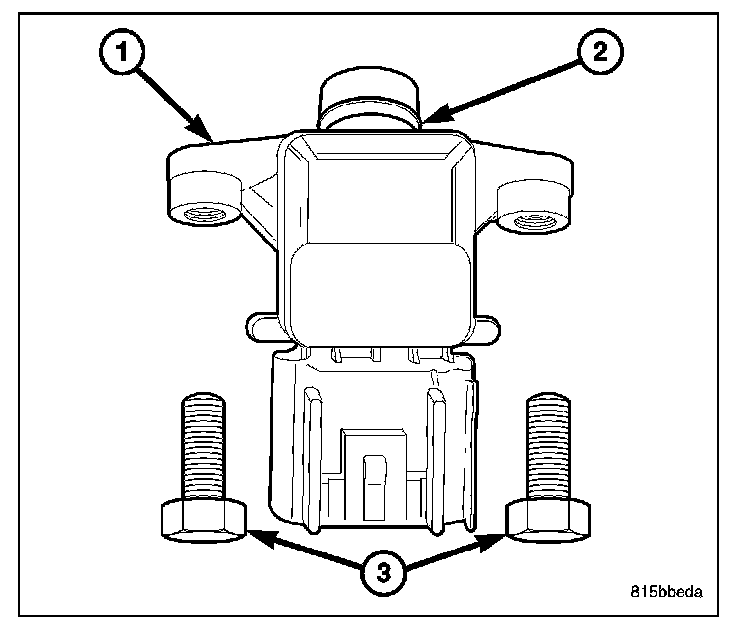

2. Check MAP sensor O-ring seal (2) for cuts or tears.
3. Position sensor (1) into intake manifold.
4. Install two sensor mounting bolts (3).
5. Connect electrical connector to sensor.
