Seat-Club Cab-Rear
SEAT-CLUB CAB-REARREMOVAL
NOTE: The seat back is part of the cab back trim panel.
1. Remove the cab back trim panel.

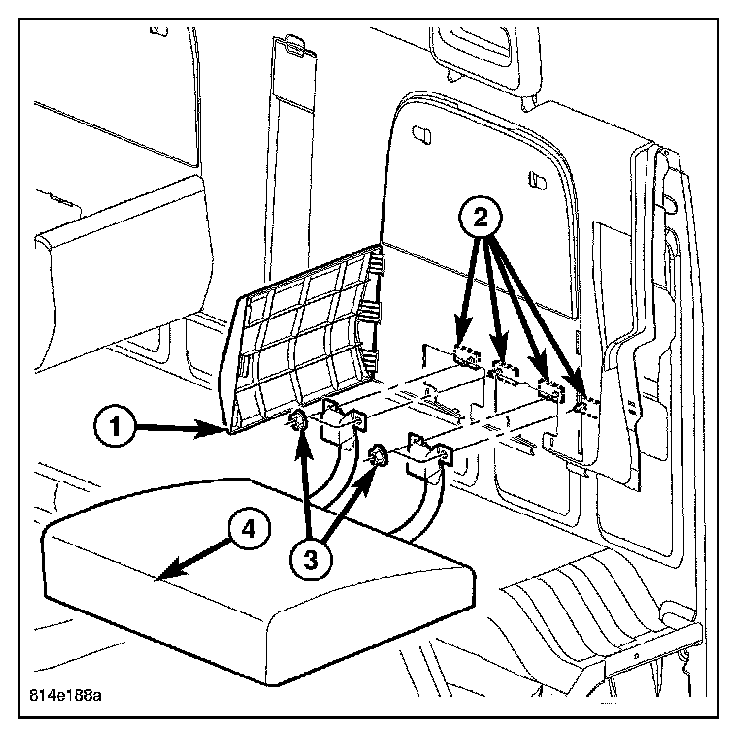

2. Remove the fasteners (3) attaching rear seat cushion hinge to cab back panel (2).
3. Separate rear seat cushion (4) from vehicle.
INSTALLATION
NOTE: The seat back is part of the cab back trim panel.

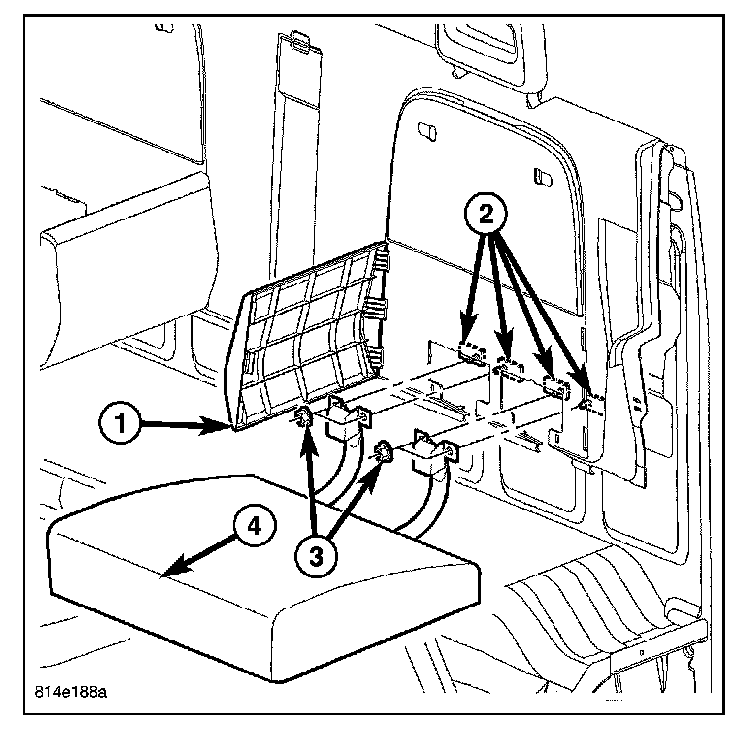

1. Position the rear seat cushion (4) in the vehicle.
2. Install the fasteners (3) attaching the rear seat cushion hinge to cab back panel (2).
3. Tighten the fasteners to 34 N.m (25 ft. lbs.).

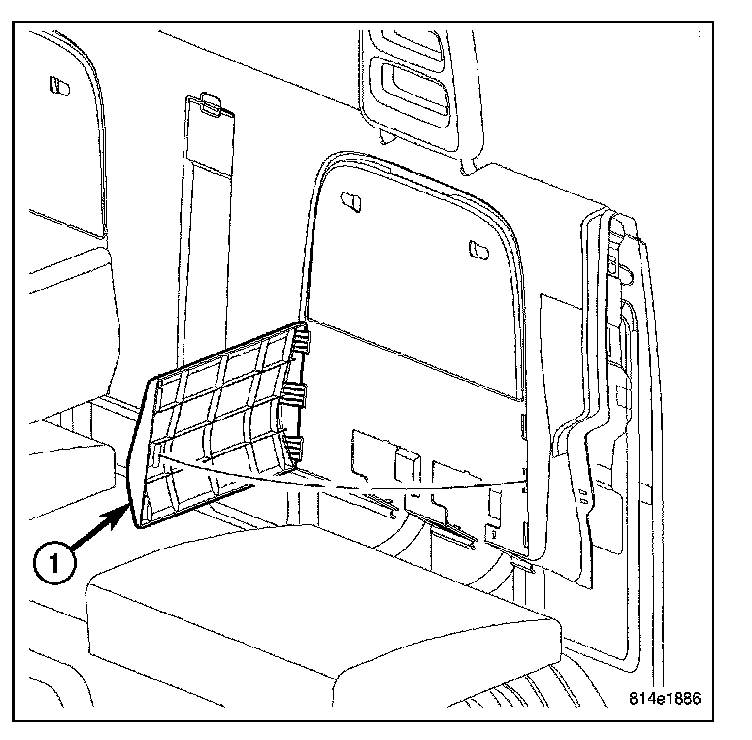

4. Install the cab back trim panel.
