Seat-Quad Cab-Rear

SEAT-QUAD CAB-REAR

REMOVAL

NOTE: The quad cab rear seat is a 60/40 seat. Each seat is serviceable separately.

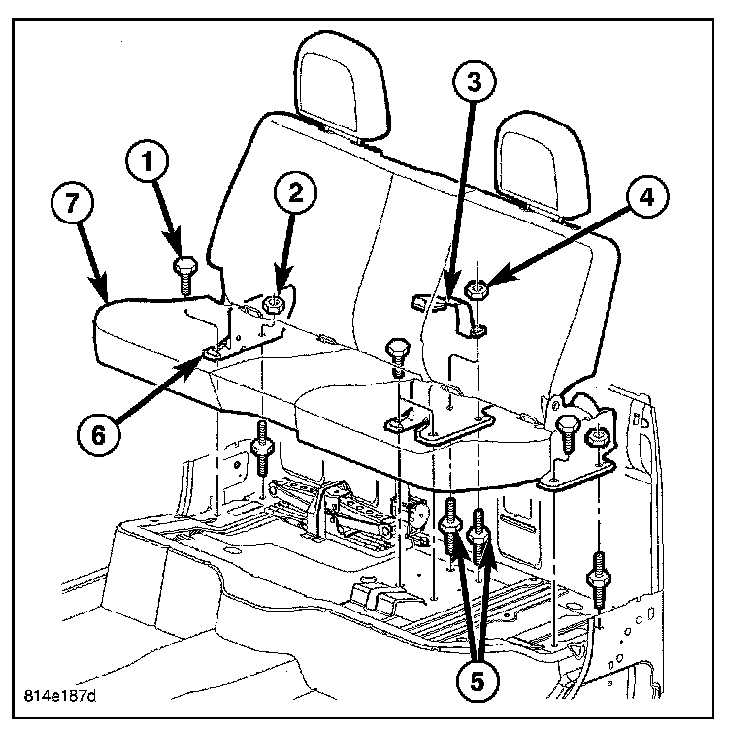

1. Fold the seating cushion (7) up.
2. Remove the jack assembly.
3. Remove the fastener (4) securing the center seat belt (3)(for left seat removal).
4. Remove the fasteners retaining the seat to the cab floor.

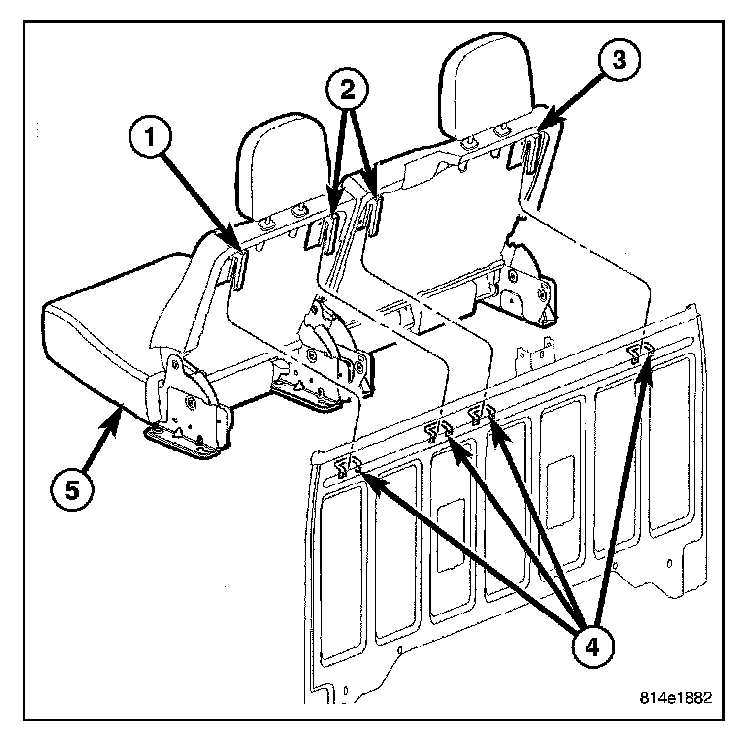

5. Lift the seat assembly (5) off the retaining studs and the cab back hooks (4).
6. Remove the seat through the rear door.

INSTALLATION

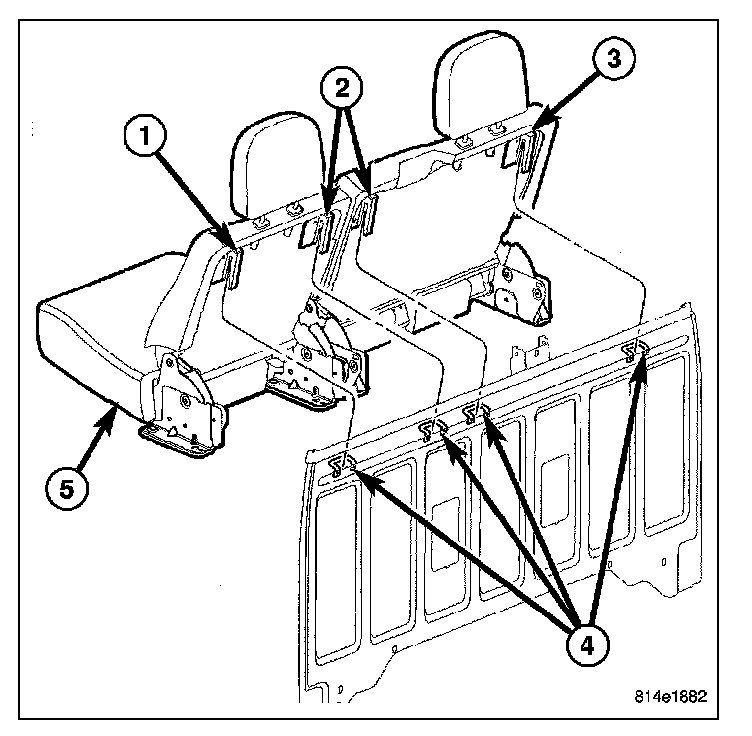

1. Position the seat (5) on the cab back hooks (4) and the floor studs.
2. Ensure the seat back is firmly hooked to the cab back retainers.




3. Position the center seat belt (3) onto the floor stud (5) (for left seat installation).
4. Install the floor fasteners.
5. Tighten the bolts to 52 N.m (38 ft. lbs.).
6. Tighten the nuts to 41 N.m (30 ft. lbs.).
7. Install the jack assembly.
