System Specifications

CYLINDER BLOCK:

PISTONS:

PISTON RINGS:

CONNECTING RODS:

CRANKSHAFT:

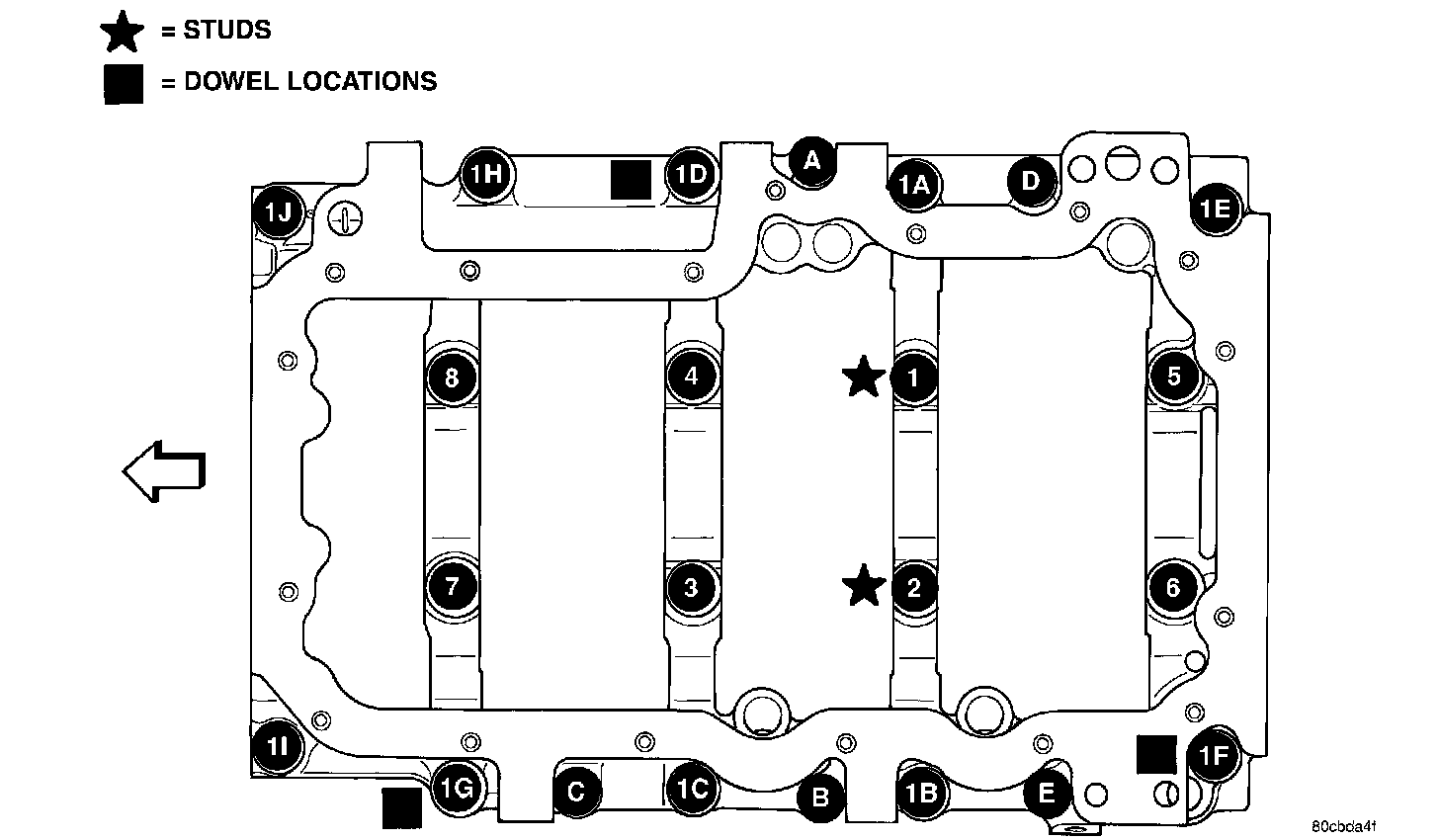

Bolts 1A - 1J 54 Nm (40 ft. lbs.)
Bolts 1 - 8 7 Nm (5 ft. lbs.)
Bolts 1 - 8 additional 90°.
Bolts A - E 27 Nm (20 ft. lbs.)

Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
