Clutch Switch: Testing and Inspection

SWITCH CLUTCH PEDAL POSITION

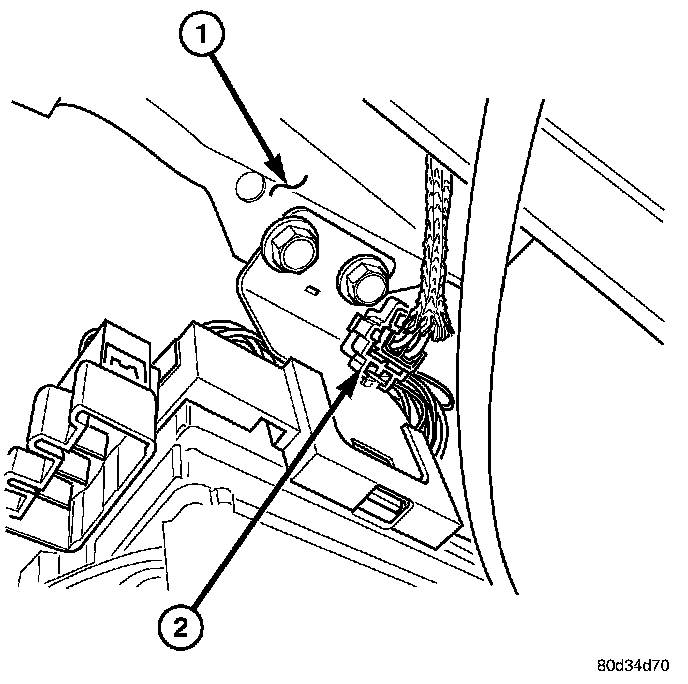

1. Disconnect switch 2wire connector (2) attached to pedal support bracket (1), under instrument panel to left of clutch pedal.
2. Check switch continuity with an ohmmeter while operating clutch pedal.
- Pedal Depressed-Continuity
- Pedal Released-No Continuity

3. If continuity is not present or always present, replace clutch master cylinder. Switch is not serviced separately.
