System Specifications

8.3L SERVICE SPECIFICATIONS

CYLINDER BLOCK:

CRANKSHAFT:

MAIN BEARING JOURNALS:

CONNECTING RODS:

PISTONS:

PISTON RING:

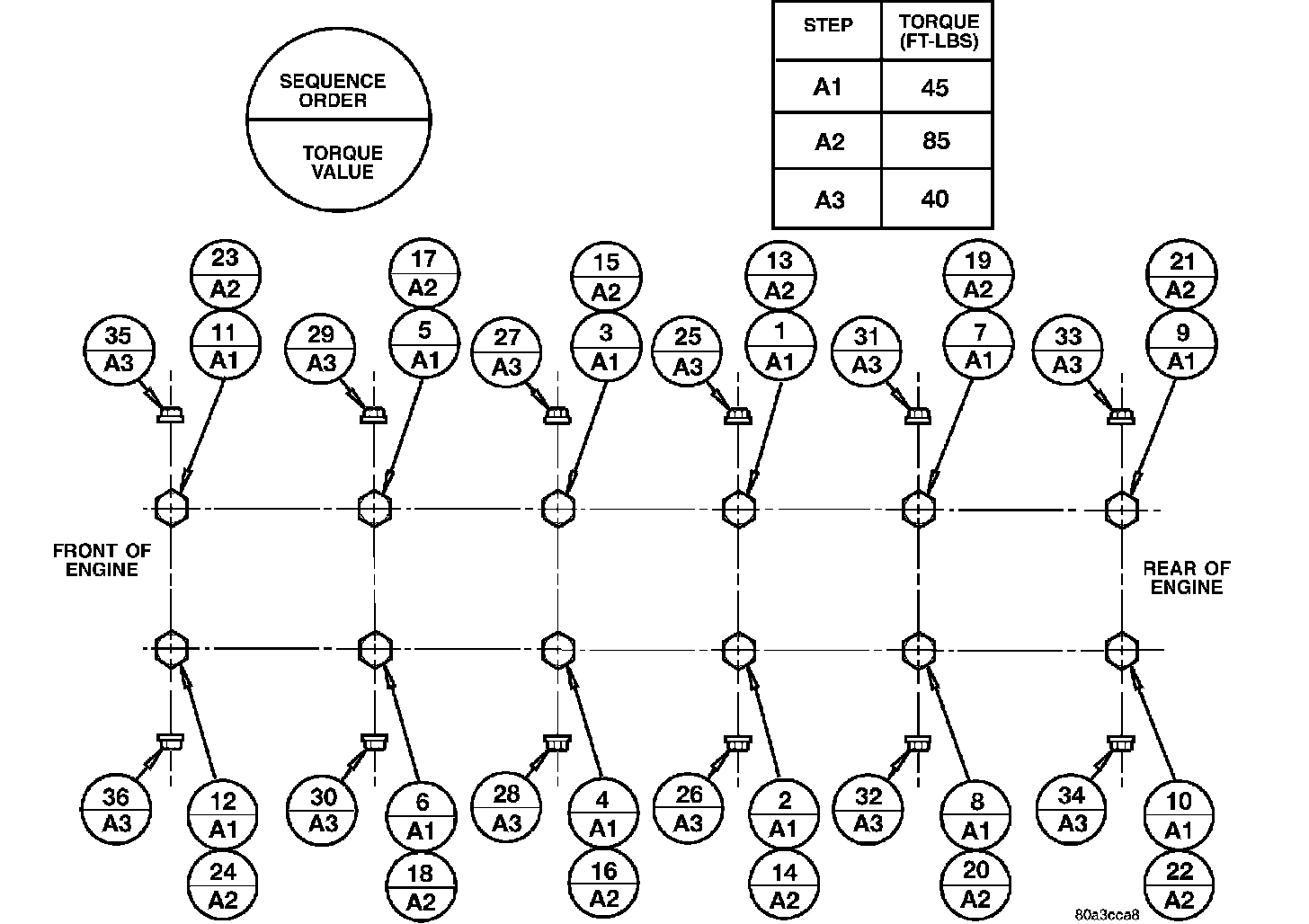

MAIN BEARING CAP TORQUE

Step 1. A1 bolts 61 Nm (45 ft. lbs.) in the illustrated sequence.
Step 2. A2 bolts 115 Nm (85 ft. lbs.) in the illustrated sequence.
Step 3. A3 Bolts 54 Nm (40 ft. lbs.) in the illustrated sequence.

Bolt-Crankshaft Vibration Damper 176 Nm (130 ft. lbs.)
