REMOVAL




1. Remove the inner belt molding.
2. Remove the waterdam.
3. Reinstall the manual window crank and raise the door glass to the position shown.

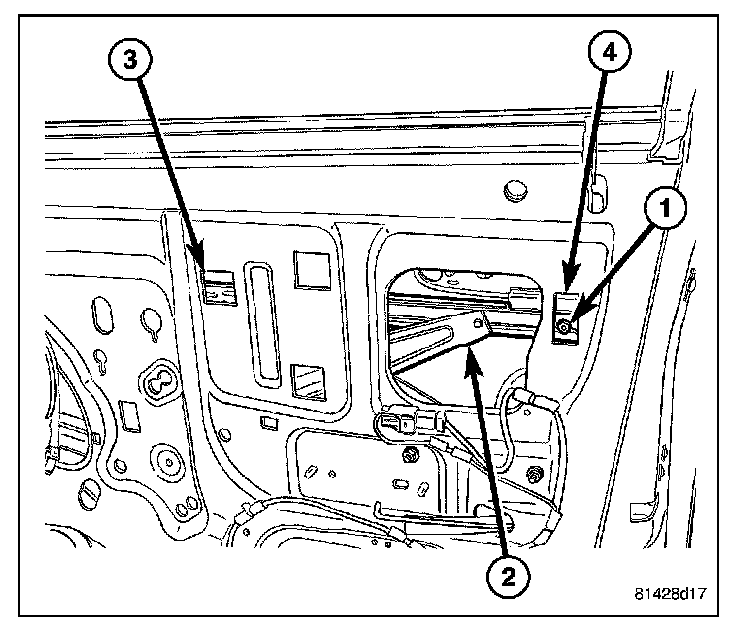

4. Remove the two nuts (1) that secure the door glass to the window regulator (2) through the two sight windows (3 and 4) and disengage the door glass from the regulator.
5. Position the door glass to the full up position and secure the glass using a wooden wedge or an equivalent.

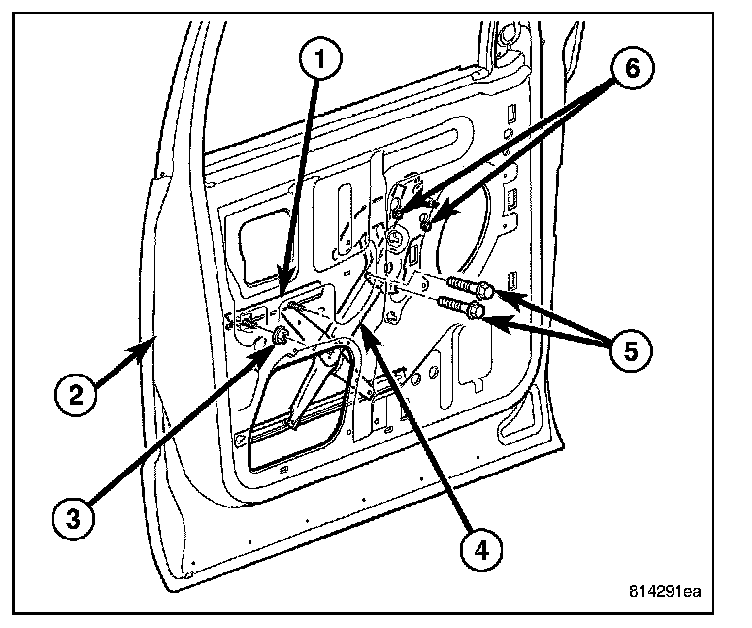

6. Lower the window regulator (4) and remove the two nuts (3) that secure the regulator stabilizer (1) to the door (2).
7. Remove the two bolts (5) that secure the window regulator to the door and loosen the other two regulator bolts (6).
8. Slide the window regulator upward and disengage the two regulator bolts from the door.
9. Remove the window regulator through the opening in the door.

INSTALLATION

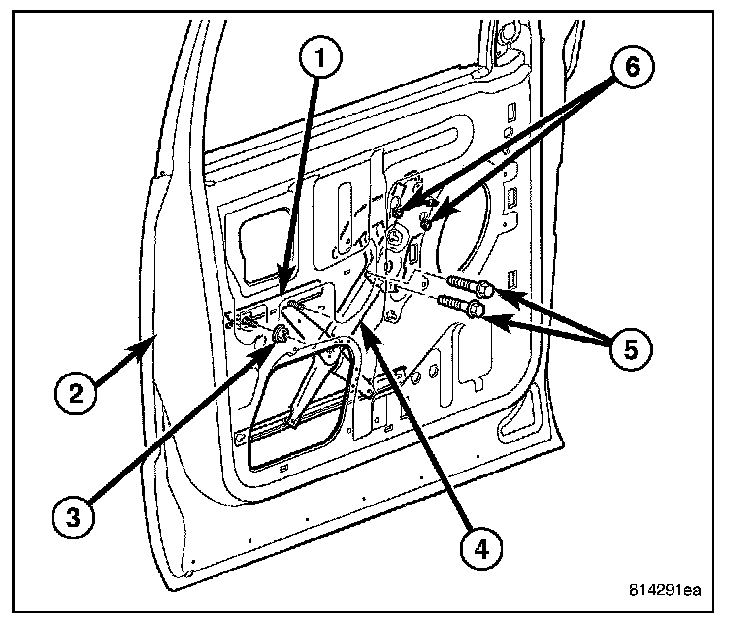

1. Install the window regulator (4) through the opening in the door (2).
2. Engage the two regulator bolts (6) to the door.
3. Install the two bolt (5) that secure the window regulator to the door and tighten all four regulator bolts to 10 N.m (89 in. lbs.).
4. Position the regulator stabilizer (1) into the door and install the two nuts (3). Tighten the nuts to 10 N.m (89 in. lbs.).




5. Raise the window regulator (2) to the position shown and remove the manual window crank.
6. Support the window glass and remove the wooden wedge or equivalent.
7. Position the window glass to the window regulator and install the two nuts (1) thought the two sight windows (3 and 4). Tighten the nuts to 10 N.m (89 in. lbs.).
8. Install the waterdam.
9. Install the inner belt molding.
