Removal
REMOVAL 1.
Using a trim stick (C-4755), pry edge of louver from bezel.
2.
Remove HVAC louver from bezel.
3.
Using a trim stick, pry lower edge of HVAC bezel away from headlining (Figure 1).
4.
Remove louver from vehicle.

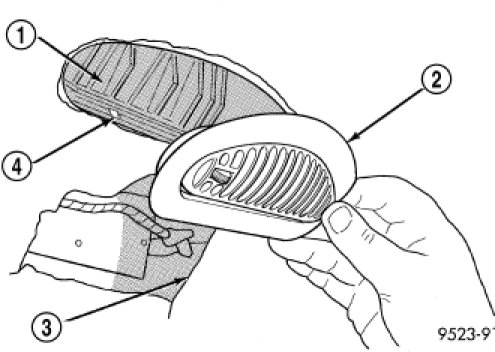

Figure 1 REAR HVAC LOUVER
