Start and Stall Condition

Test 1-2:




Test 3-5:

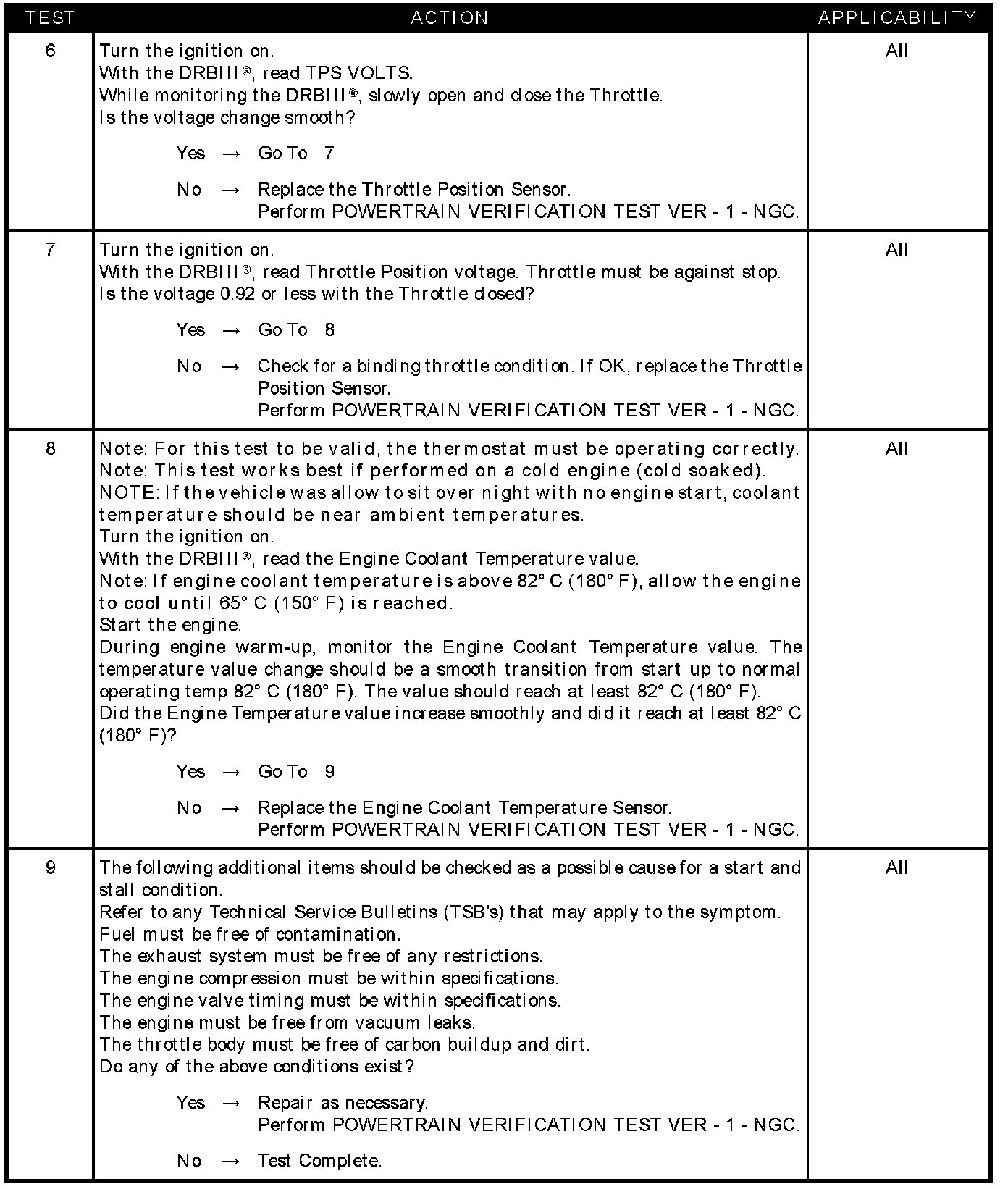

Test 6-9:






SYMPTOM
START AND STALL CONDITION

POSSIBLE CAUSES
- Checking DTCS
- Checking SKIM DTCS
- Fuel pressure out of specs
- TP sensor sweep
- TP sensor voltage greater than 0.92 volts with throttle closed
- ECT sensor operation
- Other possible causes for start & stall
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
