Switch-Window/Door Lock-Driver Express




Component ID: 340
Component : SWITCH-WINDOW/DOOR LOCK-DRIVER EXPRESS

Connector:

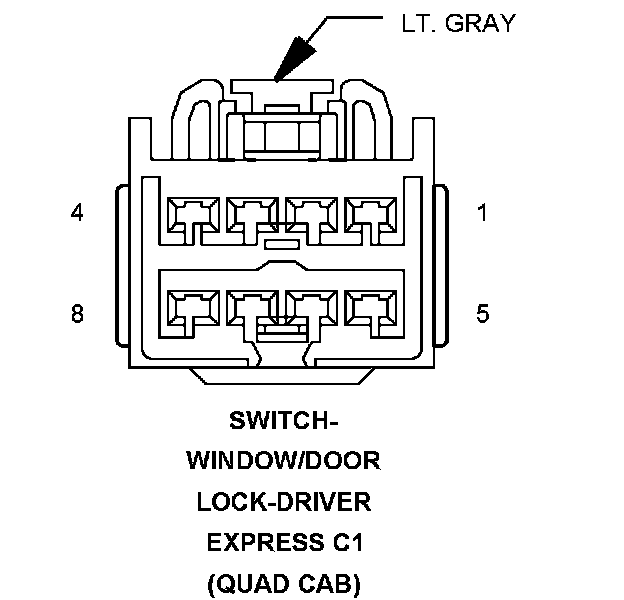

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER EXPRESS C1
Color : LT. GRAY
# of pins : 8
Qualifier : (QUAD CAB)




Pin Description Circuit
1 - -
2 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F30 14PK/YL
3 GROUND Z940 20BK
4 GROUND Z13 16BK/WT
5 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
6 DRIVER WINDOW DRIVER DOWN Q21 14OR/WT
7 DRIVER WINDOW DRIVER UP Q11 14OR/LG
8 DRIVER DOOR LOCK SWITCH MUX G161 20VT/DG

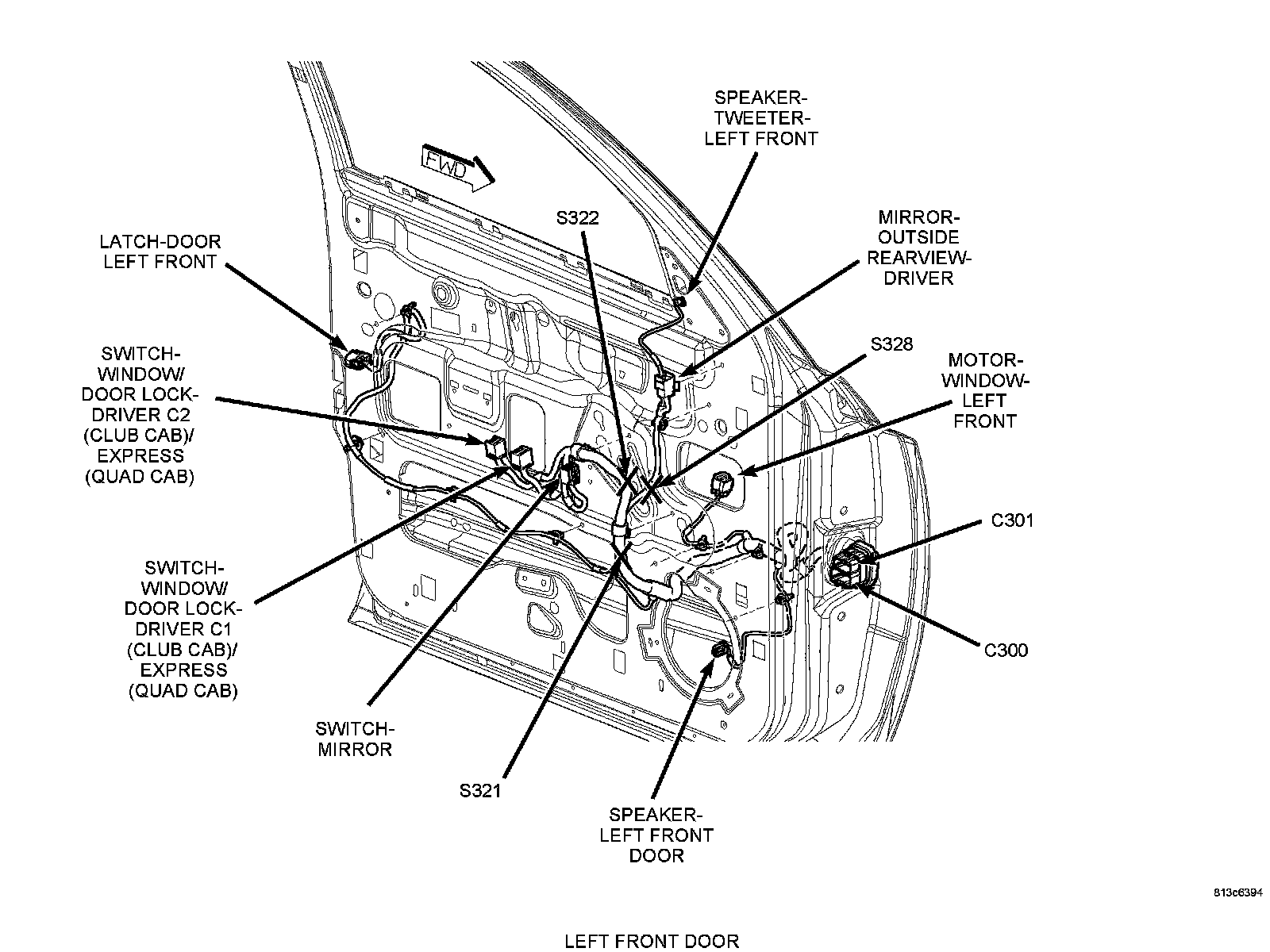

Component Location - 39






Connector:

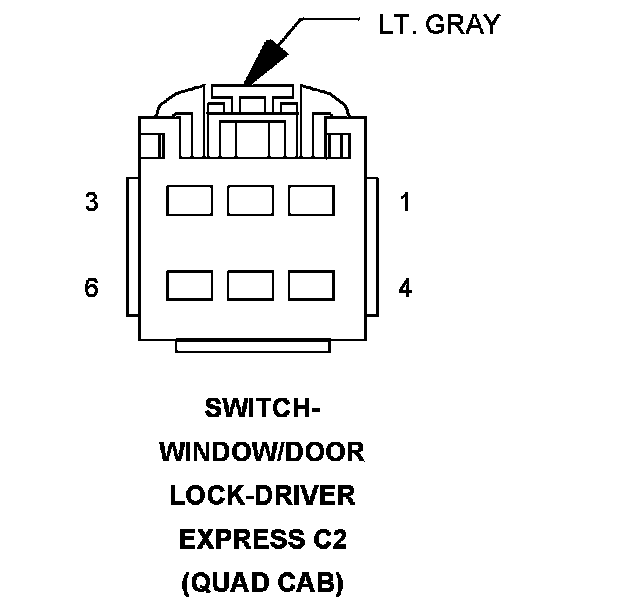

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER EXPRESS C2
Color : LT. GRAY
# of pins : 6
Qualifier : (QUAD CAB)




Pin Description Circuit
1 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/BK
2 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14TN/YL
3 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB
4 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/RD
5 MASTER WINDOW SWITCH PASSENGER DOWN Q26 14OR/GY
6 MASTER WINDOW SWITCH PASSENGER UP Q16 14OR/TN

Component Location - 39
