Gear Sensor/Switch, Transfer Case




Component ID: 19
Component : ASSEMBLY-SHIFT MOTOR/MODE SENSOR

Connector:
Name : ASSEMBLY-SHIFT MOTOR/MODE SENSOR
Color : DK GRAY
# of pins : 8




Pin Description Circuit
1 5 VOLT SUPPLY T103 20YL/OR
2 MODE SENSOR A D201 20WT/DG
3 FCM SENSOR RETURN G180 20VT/YL
4 SHIFT MOTOR (+) T101 14DG
5 SHIFT MOTOR (-) T102 14YL
6 - -
7 - -
8 - -

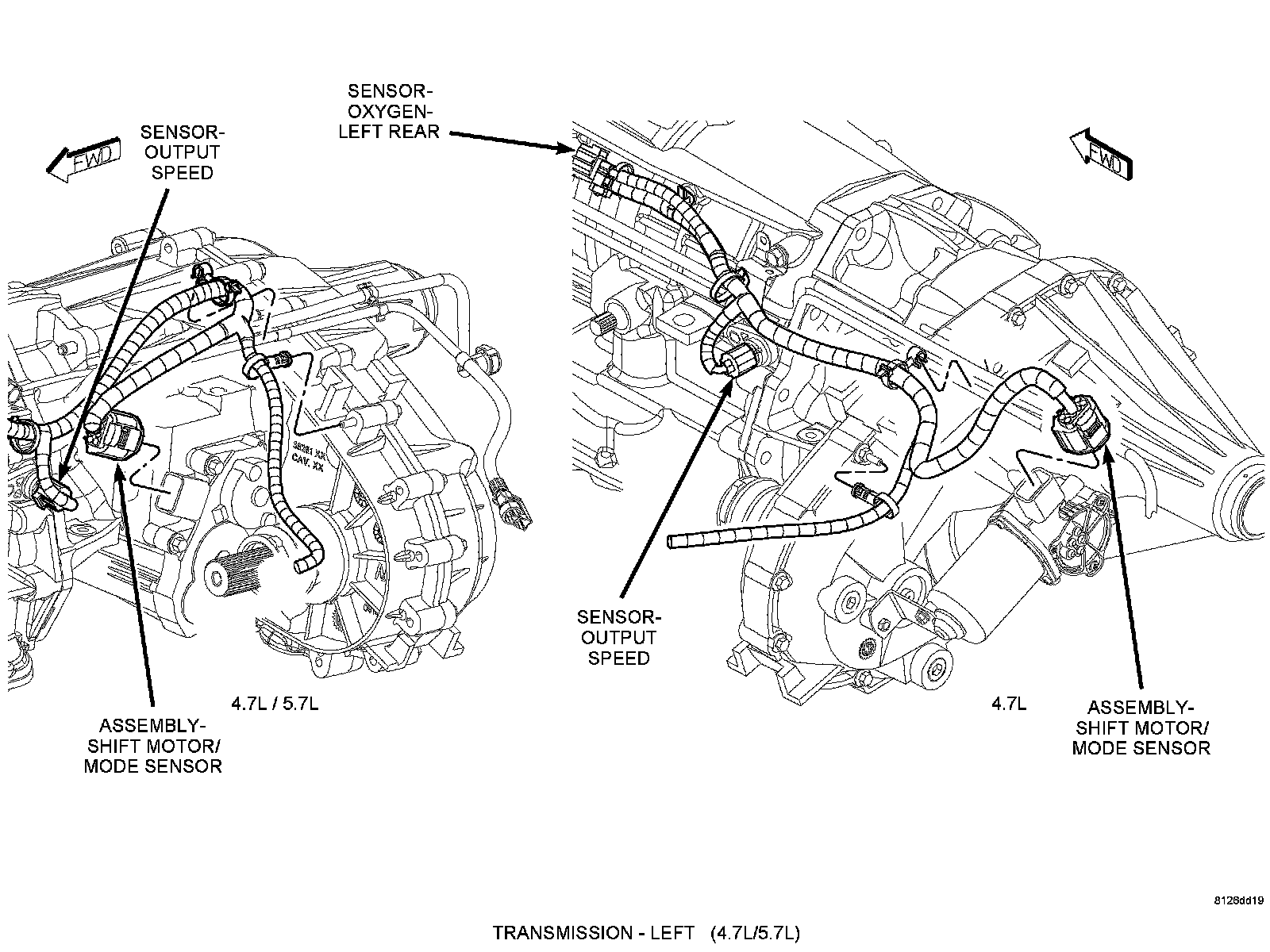

Component Location - 21
