Removal

REMOVAL





WARNING: Before removal of the nuts on the hood hinges get a helper to hold the hood in position to keep from the hood falling from the vehicle causing personal injury and/or damage to the vehicle.


NOTE: Use a grease pencil or equivalent, mark location of hood hinges on the hood for installation and alignment purposes.

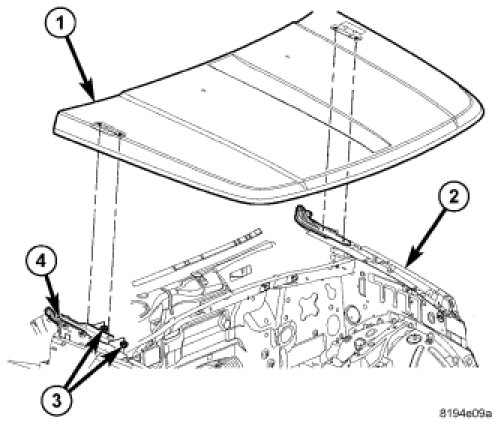

1. Remove nuts (3) attaching hinges (4) to hood (1).

2. With the aid of a helper, remove hood from vehicle.
