Removal

REMOVAL




1. Open the lift gate.

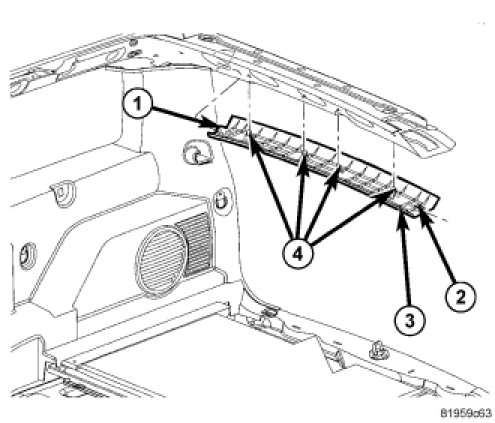

2. Pull down at the center of the headliner molding (3) only enough to allow the tab (2) to be released from the quarter trim molding.

3. Carefully pull down to remove the remaining clips (4) attaching the molding to the body then move the molding to the left to released the tab from the quarter trim molding.
