Removal

REMOVAL

60/40 Seat Back - 40





1. Remove the 40 and 60 seat.

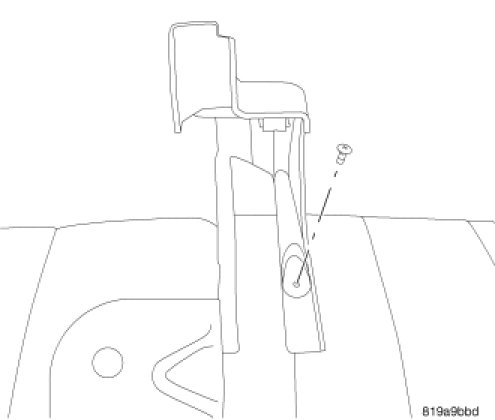

2. Remove the screw and trim covering.

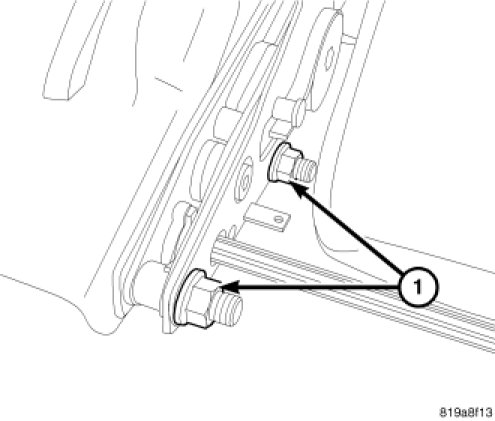

3. Remove the nuts (1) attaching the 40 and 60 seat back frames.

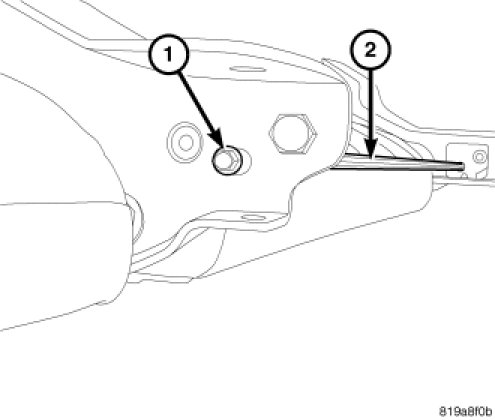

4. Remove the recliner rod nut (1) and recliner rod (2).

5. Remove the 40 seat back frame from the 60 seat back frame.


NOTE: Mark the position of the recliner lever prior to removal. This will make sure that the recliner lever is in the proper position after installation.

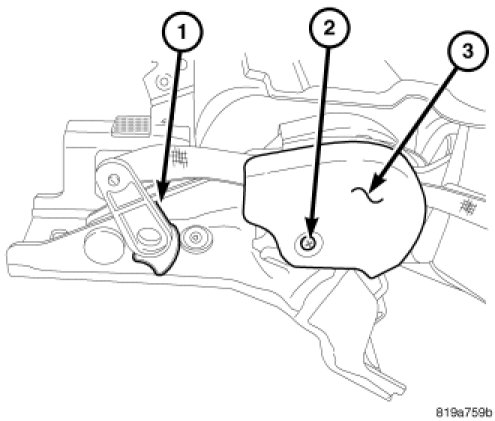

6. Trace (1) an outline of the recliner handle. Remove screw (2) and the floor bracket trim (3) from the hinge.

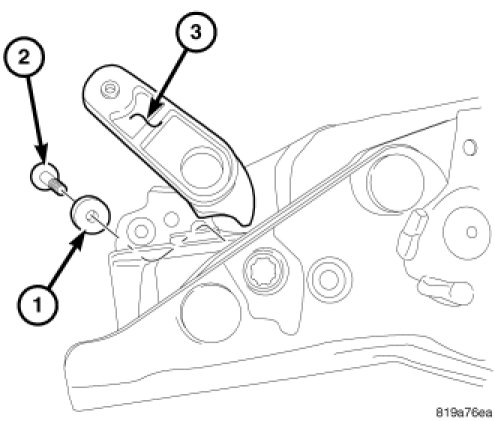

7. Remove the screw (2), washer (1) and recliner handle (3) from the floor bracket.





8. Remove the bracket nuts (1), trim attachment bracket (2) and bracket (4) from the hinge (3).

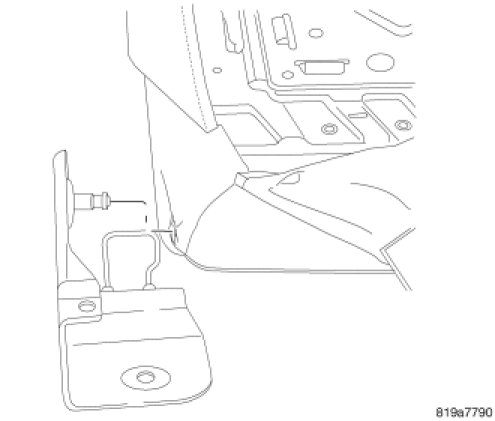

9. Remove the left floor bracket from the seat frame.


60/40 Seat Back - 60





1. Remove the 40 and 60 seat.

2. Remove the screw and trim covering.





3. Remove the nuts (1) attaching the 40 and 60 seat back frames.





4. Remove the recliner rod nut (1) and recliner rod (2) and the spacer.

5. Remove the 40 seat back frame from the 60 seat back frame.

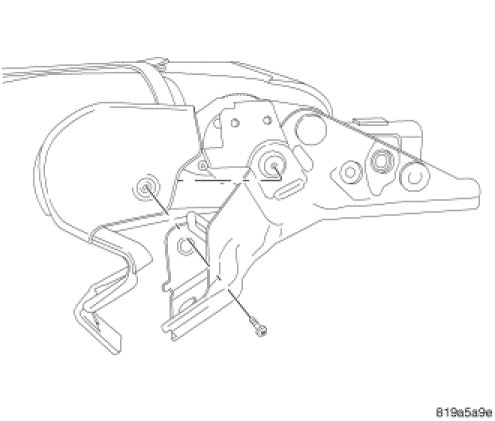

6. Remove screw and trim covering from the hinge.

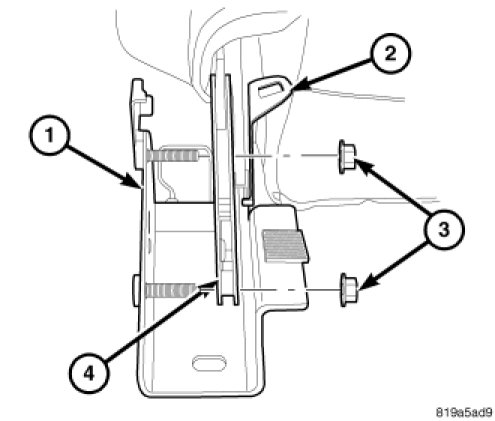

7. Remove the bracket nuts (3), trim attachment bracket (2) and bracket (1) from the hinge (4).
