Installation

INSTALLATION

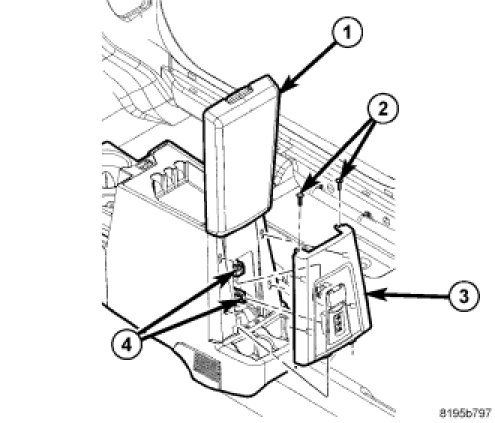

1. Install the AC power outlet into the floor console trim panel (3).

2. Connect the electrical connectors (4) to the panel (3).

3. Align the trim panel (3) to the console, use hand pressure to seat the clips.

4. Install the two screws (2) to the trim panel (3).

5. Connect the battery negative cable.
