Right Side

RIGHT SIDE

1. Raise and support the vehicle.
2. Remove the right side tire and wheel assembly.
3. Remove the upper ball joint nut.

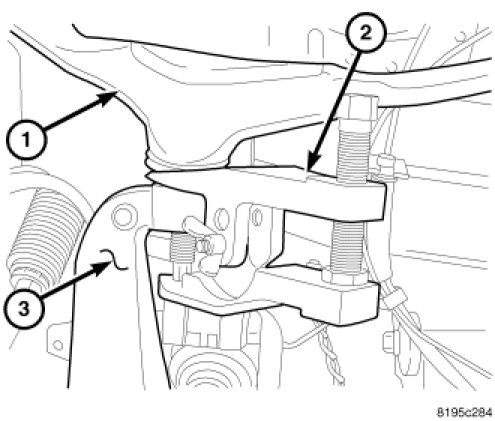

4. Separate the upper ball joint from the steering knuckle (3) using remover 9360 (2).
5. Lower the vehicle.
6. Remove the air box assembly.
7. Remove the upper control arm rear bolt/nut.
8. Remove the upper control arm front bolt/nut.
9. Remove the upper control arm from the vehicle.
