Description

DESCRIPTION




Holding Clutches

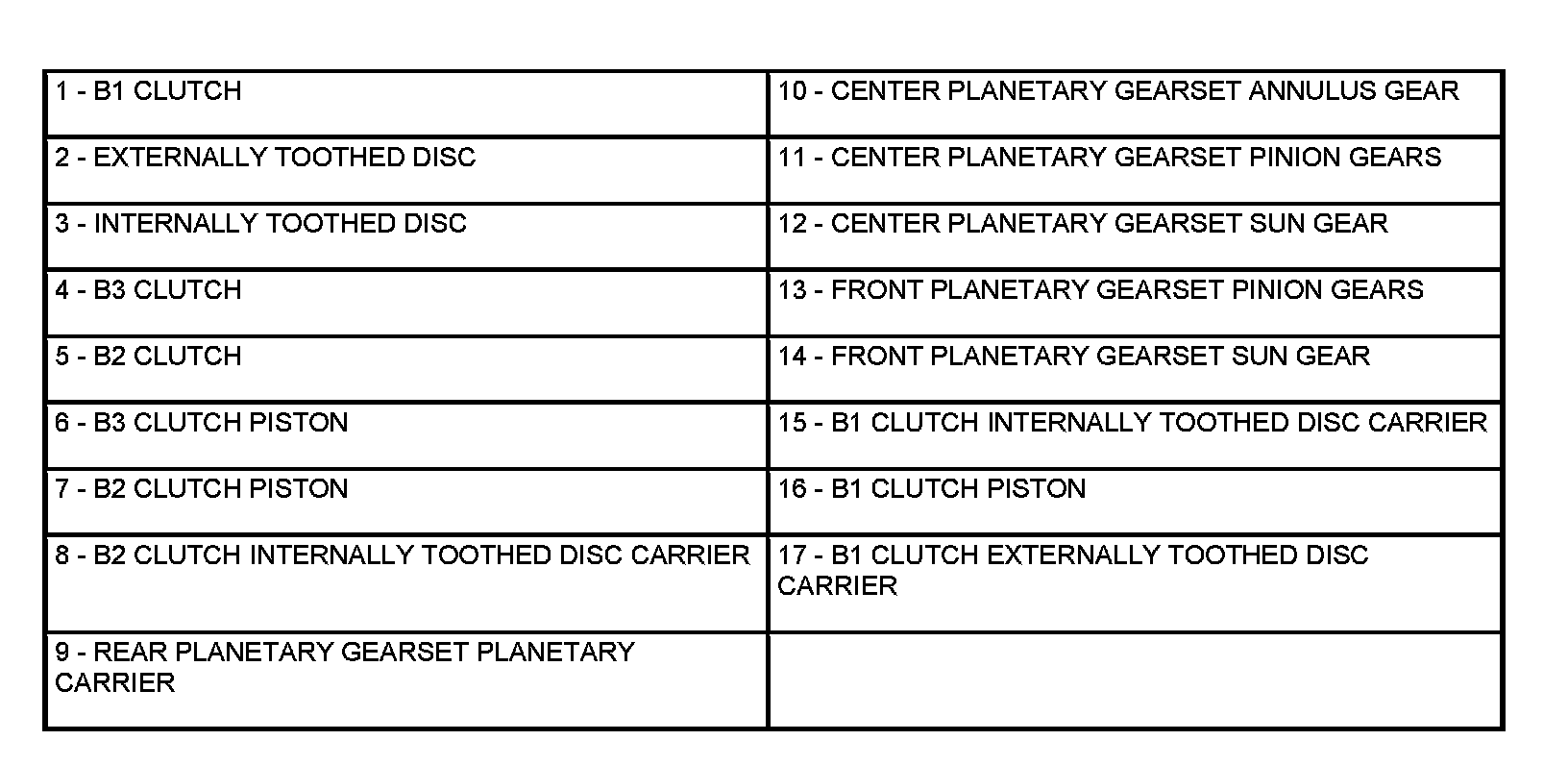

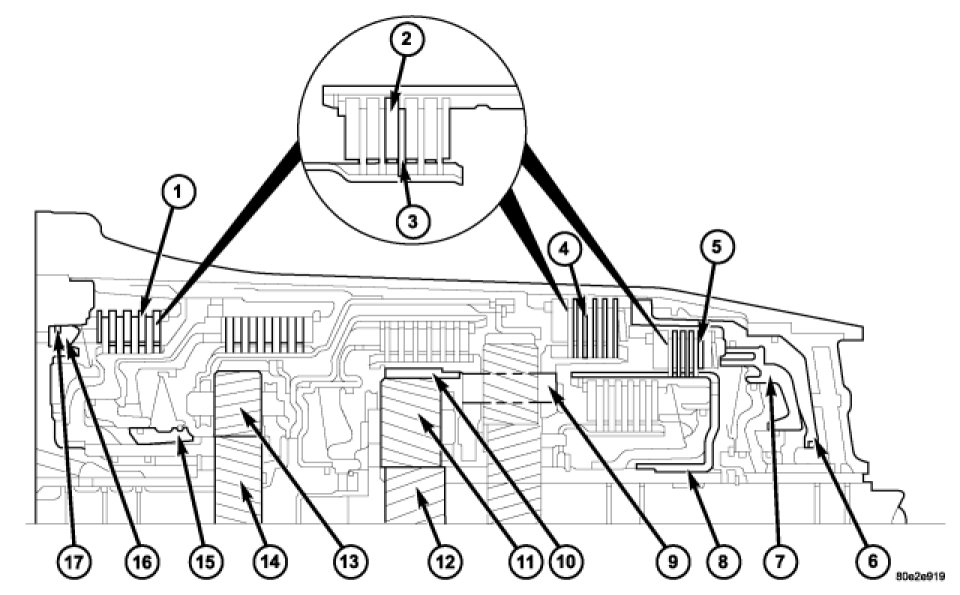

Three multiple-disc holding clutches, the front, B1 (1), middle, B3 (4), and rear multiple disc clutches, B2 (5), are located in the planetary gear sets in the transmission housing.


A multiple-disc holding clutch consists of a number of internally toothed discs (3) on an internally toothed disc carrier and externally toothed discs (2) on an externally toothed disc carrier, which is rigidly connected to the transmission housing.
