Removal

REMOVAL

A speed control servo is used only with the 4.7L V-8 engine.

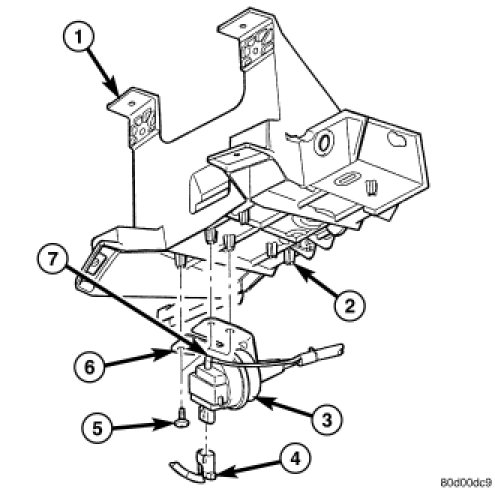

The speed control servo assembly is attached to the bottom of the battery tray (1) .

1. Disconnect negative battery cable at battery (both cables at both batteries if diesel).

2. To gain access to servo, remove plastic wheelhouse splash shield over left-front wheel.

3. Disconnect vacuum line (7) at servo .

4. Disconnect electrical connector (4) at servo .

5. Remove 3 servo mounting screws (5) . Depending on engine application, different sets of mounting lugs (2) are used to support servo to battery tray. While removing, note proper lugs.




6. Disconnect servo cable at throttle body.

7. Remove 2 mounting nuts (1) holding servo cable sleeve to bracket .

8. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (3) and remove clip. Note: The servo mounting bracket displayed is a typical bracket and may/may not be applicable to this model vehicle.

9. Remove servo (2) from mounting bracket. While removing, note orientation of servo to bracket.
