Backup Lamp Switch




Component ID: 306
Component : SWITCH-BACKUP LAMP

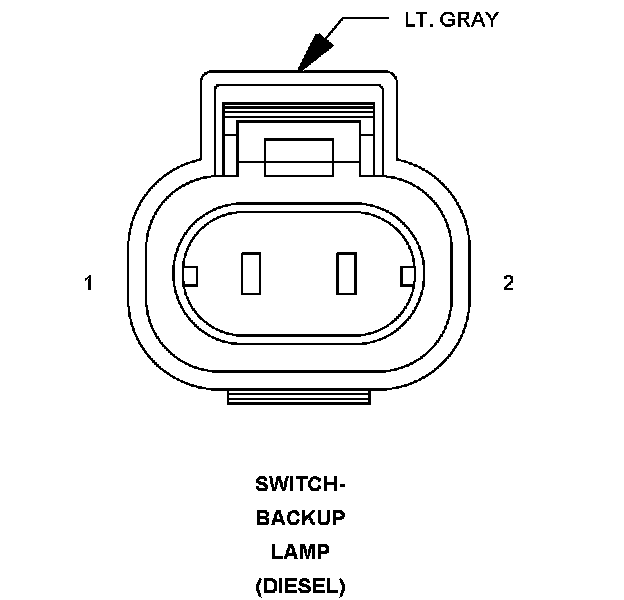

Connector:
Name : SWITCH-BACKUP LAMP
Color : LT. GRAY
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 Z967 18BK/VT GROUND
2 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL

Component Location - 12

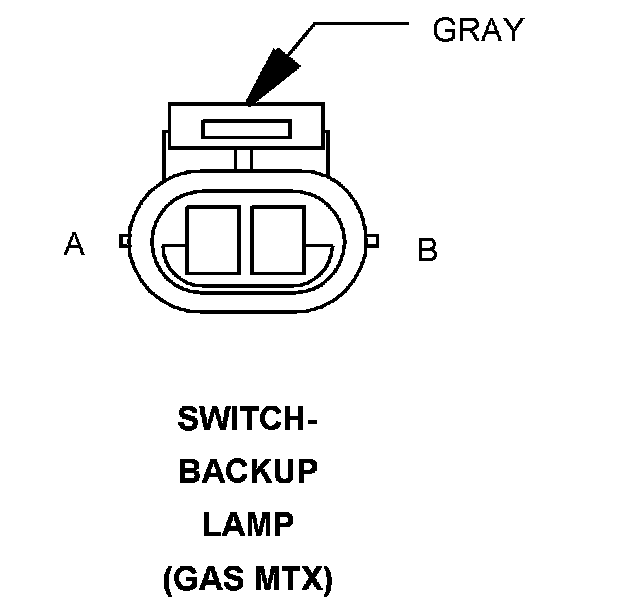

Connector:
Name : SWITCH-BACKUP LAMP
Color : GRAY
# of pins : 2
Qualifier : (GAS 5 SPD MTX)




A Z967 20BK/VT GROUND
A Z967 18BK/VT GROUND
B T22 20YL/VT BACKUP LAMP SWITCH SIGNAL

Component Location - 12

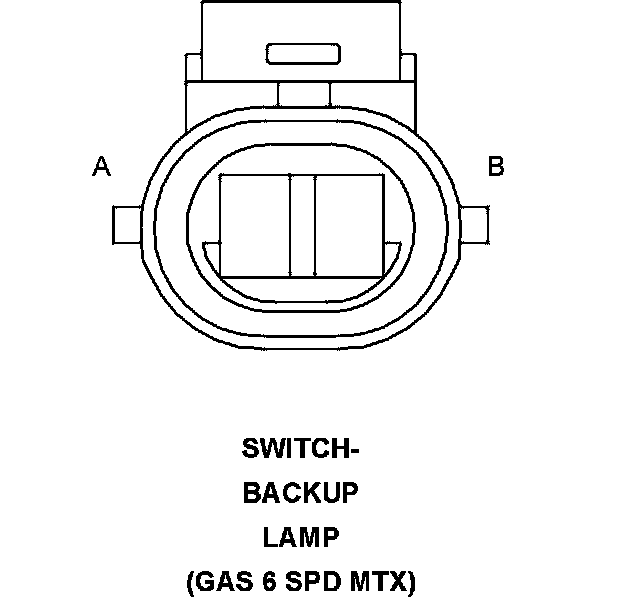

Connector:
Name : SWITCH-BACKUP LAMP
Color :
# of pins : 2
Qualifier : (GAS 6 SPD MTX)




Pin Circuit Description
1 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL
2 Z967 20BK/VT GROUND

Component Location - 12
