Front Crankshaft Oil Seal - Removal

REMOVAL





1. Disconnect negative cable from battery (1).
2. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.
3. Drain cooling system Service and Repair.
4. Remove upper radiator hose.
5. Remove radiator shroud attaching fasteners.
6. Remove radiator cooling fan and shroud Cooling Fan - Removal.





7. Remove crankshaft damper bolt.

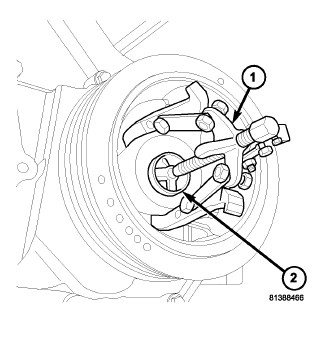

8. Remove damper using the Crankshaft Insert 8513A (2) and Three Jaw Puller 1023 (1) Vibration Damper - Removal.





9. Use Seal Remover 9071 (1) to remove the crankshaft front seal (2).
