Battery

Component ID: 19

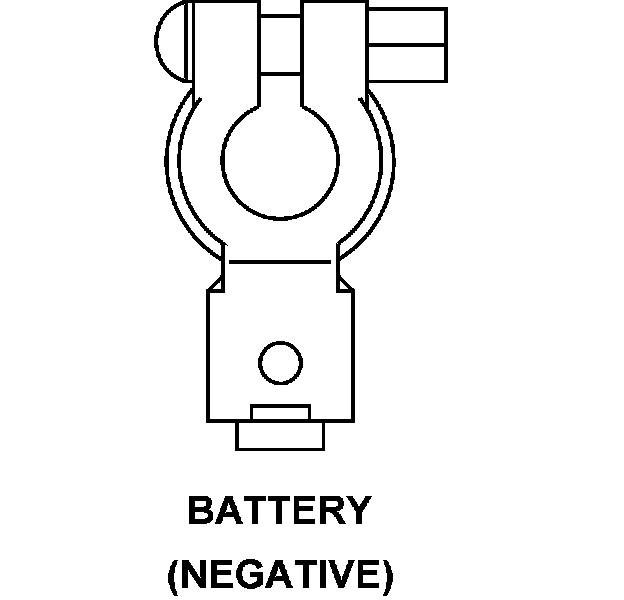

Component : BATTERY

Connector:
Name : BATTERY
Color :
# of pins : 2
Qualifier : (NEGATIVE)

B1 Z100 04BK/VT GROUND
B2 Z1 04BK GROUND

Component Location - 9

Component Location - 10

Connector:
Name : BATTERY
Color :
# of pins : 1
Qualifier : (POSITIVE)

A1 A1 04RD B(+)
A1 A1 06RD B(+)

Component Location - 9

Component Location - 10
