Compressor Clutch

Component ID: 42

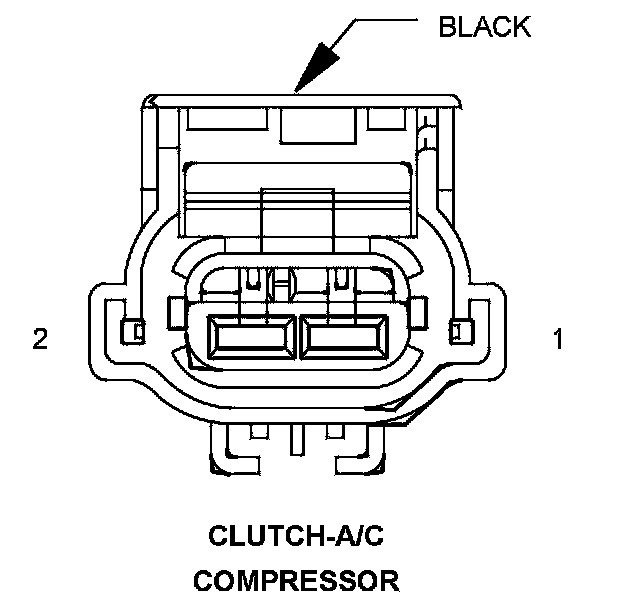

Component : CLUTCH-A/C COMPRESSOR

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2

Pin Circuit Description
1 C3 20DB/YL A/C CLUTCH RELAY OUTPUT
2 Z153 20BK/GY GROUND

Component Location - 13
