Overdrive Switch, A/T
Component ID:
321

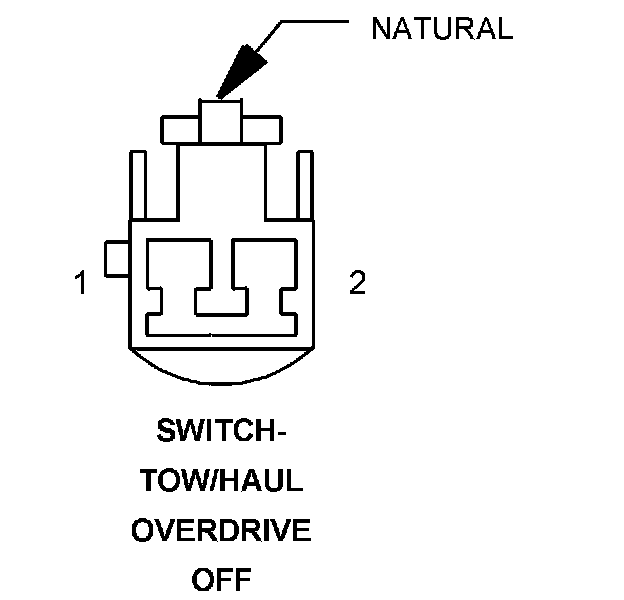

Component :
SWITCH-TOW/HAUL OVERDRIVE OFF
Connector:
Name :
SWITCH-TOW/HAUL OVERDRIVE OFF
Color :
NATURAL
# of pins :
2
Pin Circuit Description 1
T6 20DG
TOW/HAUL OVERDRIVE OFF SWITCH SIGNAL
2
Z953 20BK
GROUND
Component Location - 22
