Installation
4.7L4.7L:
1.
Thoroughly clean
knock sensor mounting hole.
2.

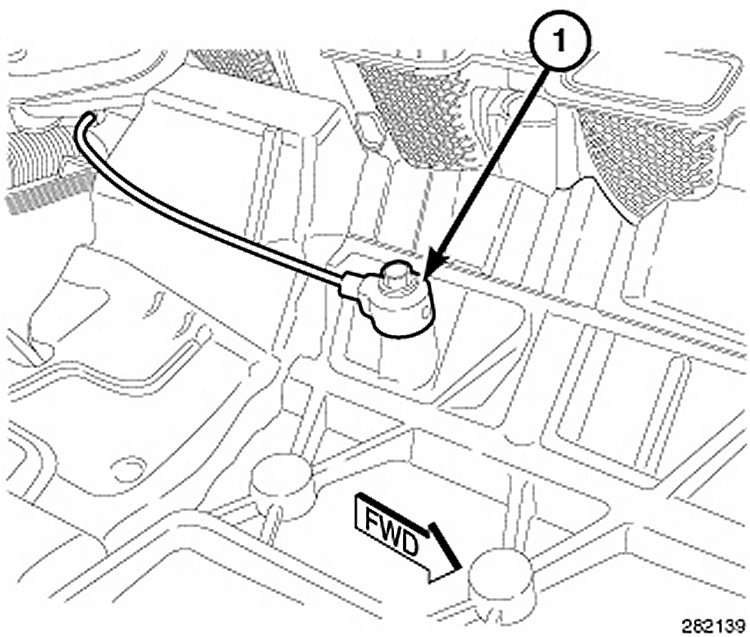

Position
knock sensor (1) in place.
3.
Tighten
knock sensor to
20 Nm (176 inch lbs).
4.

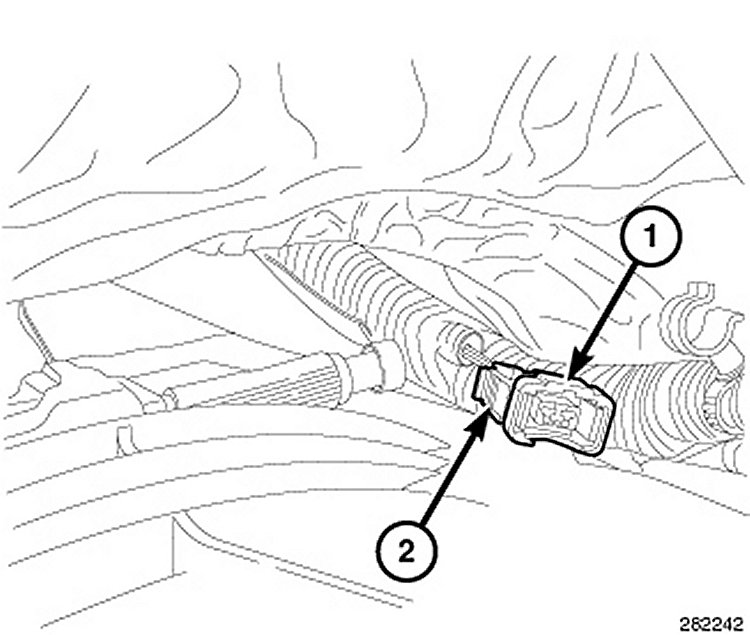

Connect
knock sensor wiring harness to engine harness (4) at rear of intake manifold.
5.
Install intake manifold. Refer to
Service and Repair
